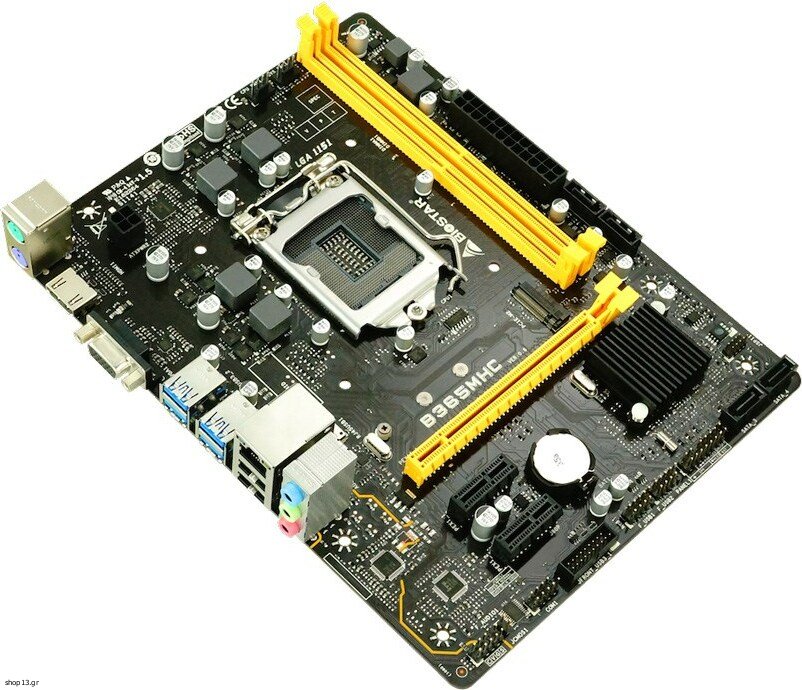

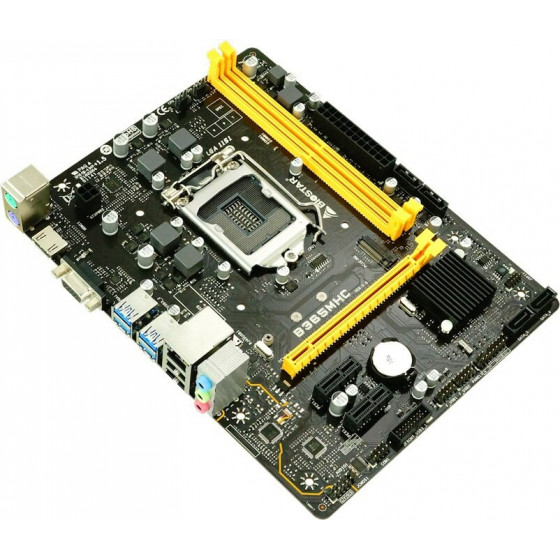

Biostar Μητρική 2x DDR4 s1151 USB 3.1 HDMI mATX Ver. 6.1 - (B365MHC)

BIOSTAR Μητρική B365MHC, 2x DDR4, s1151, USB 3.1, HDMI, mATX, Ver. 6.1

-Supports 9th & 8th Generation Intel(R) Core(TM) Processor
-Intel B365 single chip architecture
-Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32GB maximum capacity
-Support M.2(32Gb/s)
-Support Intel(R) Optane Technology
-Support USB 3.1 Gen1
-Support HDMI display port
-Support GbE LAN
Τεχνικά Χαρακτηριστικά
Chipset: Intel B365
CPU Support: Socket 1151 for 9th/8th Gen Intel(R) Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt
Memory: 2x DDR4 DIMM Memory Slot, Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz, Max. Supports up to 32GB Memory
Integrated video: By CPU model, Supports DX12, HDCP
Storage: 4x SATA3 Connector(6Gb/s), 1x M.2 Key M 32Gb/s Connector: Supports PCI-E & SATA SSD, Intel(R) Optane Technology
LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller
Codec: Realtek ALC887 8-Channel HD Audio, Support HD Audio
USB: 6x USB 3.1 Gen1 Port (4 on rear I/Os and 2 via internal header), 6x USB 2.0 Port (2 on rear I/Os and 4 via internal header)
Expansion slot: 1 x PCI-E 3.0 x16 Slot, 2x PCI-E 3.0 x1 Slot
Rear I/O:
1x PS/2 Mouse
1x PS/2 Keyboard
4x USB 3.1 Gen1 Port
2x USB 2.0 Port
1x HDMI Connector
1x VGA Port
1x LAN port
3x Audio Jacks
Internal I/O:
1x USB 3.1 Gen1 Header (each header supports 2 USB 3.1 Gen1 ports)
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
4x SATA3 6Gb/s Connector
1x Front Audio Header
1x Front Panel Header
1x CPU Fan Connector
1x System Fan Connector
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x Clear CMOS Header
1x COM Port Header
Dimension: Micro ATX Form Factor Dimension: 22.8cm x 17.7 cm ( W x L )
OS Support: Support Windows 10(64bit)
Accessories:
2x SATA Cable
1x I/O Shield
1x DVD Driver
1x Quick Guide




Κωδικός είδους:B365MHC

Κατασκευαστής:BIOSTAR

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:27 x 6 x 22 cm

Βάρος Συσκευασίας:0.676 Kg

Τύπος συσκευασίας:Retail
