Περιγραφή

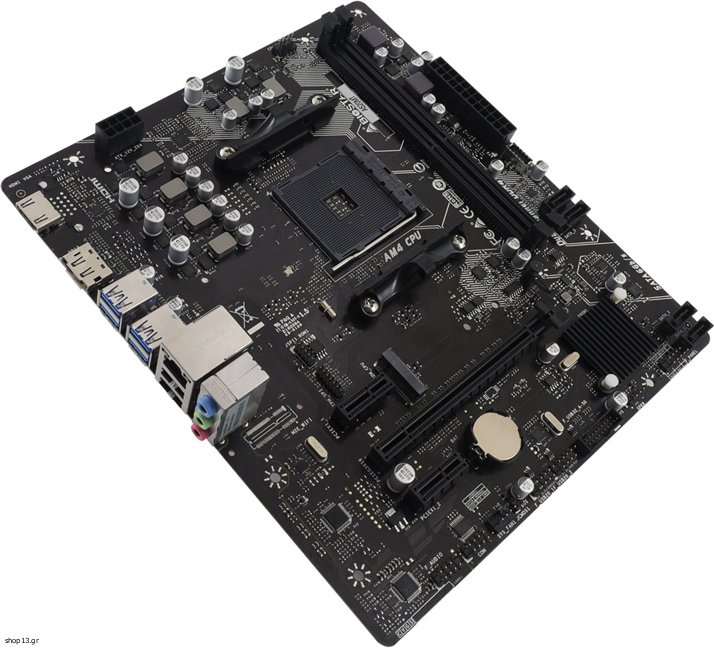

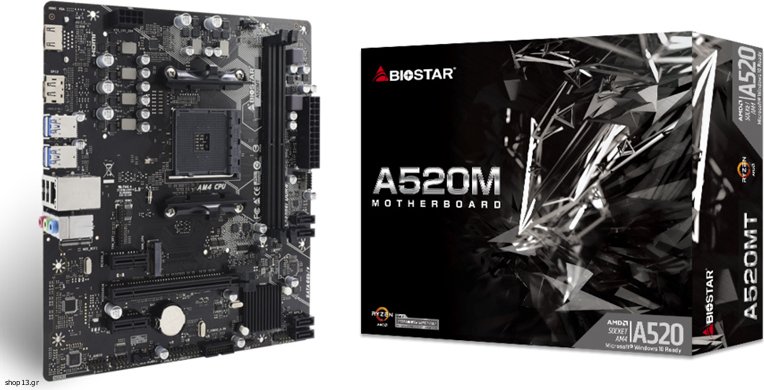

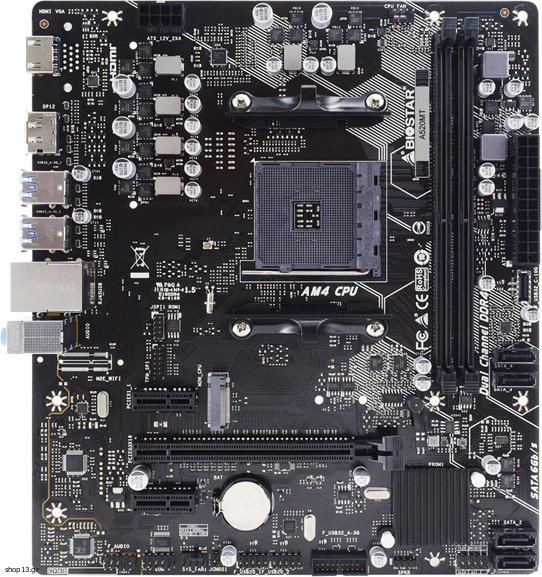

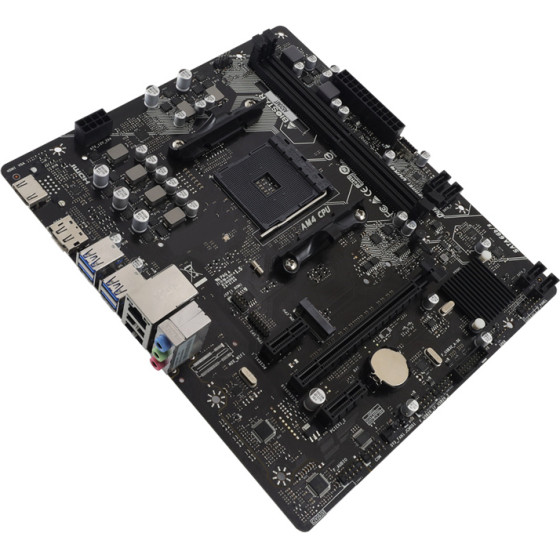

BIOSTAR μητρική A520MT, 2x DDR4, AM4, USB 3.2, uATX, GbE LAN, 7.1CH
Η A520MT της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε business PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset A520 της AMD.
Διαθέτει 2 εξόδους γραφικών: DisplayPort και HDMI.
-Supports AMD Ryzen 3rd Gen (Matisse/Renoir) & Ryzen 4th Gen (Vermeer/Cezanne) processors
-AMD A520 single chip architecture
-Supports 2-DIMM DDR4 up to 64 GB Memory
-Supports Realtek Gigabit LAN
-Supports Front USB 3.2 Gen2 Type-C
-Supports M.2 (32Gb/s)
-Supports HDMI 4K resolution
Τεχνικά χαρακτηριστικά
Chipset: AMD A520
CPU support: Socket AM4 support AMD Ryzen 3rd Gen (Matisse/Renoir) and Ryzen 4th Gen (Vermeer/Cezanne) processors, Support for future AMD Ryzen processors with BIOS update
Memory:
-4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
-4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
-3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
-3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
-2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
-Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
Integrated video: By CPU model, Supports DX12, Supports HDCP
Storage: Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports, AMD Ryzen 5000/5000 G/4000 G/3000 Processors, 1x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD A520 Chipset, 4x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10
LAN: Realtek RTL8111H, 10/100/1000 Mb/s auto negotiation, Half / Full duplex capability
Audio codec: ALC897, 7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB: 1x USB 3.2 (Gen2) Type-C port (1 via internal headers), 6x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers), 6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
Expansion slot: AMD Ryzen 5000/3000 Series Processors, 1x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)
or, AMD Ryzen 5000 G/4000 G Series Processors, 1x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode), AMD A520 Chipset, 2x PCIe 3.0 x1 Slot
Dimension: Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L )
OS support: Supports Windows 10(64bit)/11(64bit)

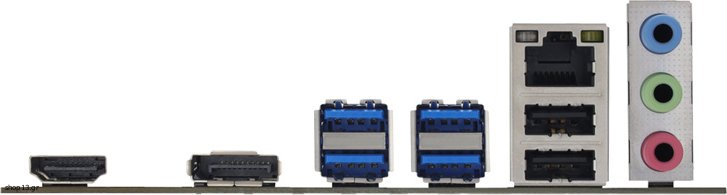

Rear I/O:
1x DP Port
1x HDMI Port
1x LAN port
4x USB 3.2 (Gen1) Ports
2x USB 2.0 Ports
3x Audio Jack
Internal I/O:
4x SATA III (6.0Gb/s) Connectors
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x USB 3.2 (Gen2) Type-C Header
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x TPM Header
Brand: BIOSTAR
Συσκευασία: Retail box
Socket: AM4
Chipset: A520
