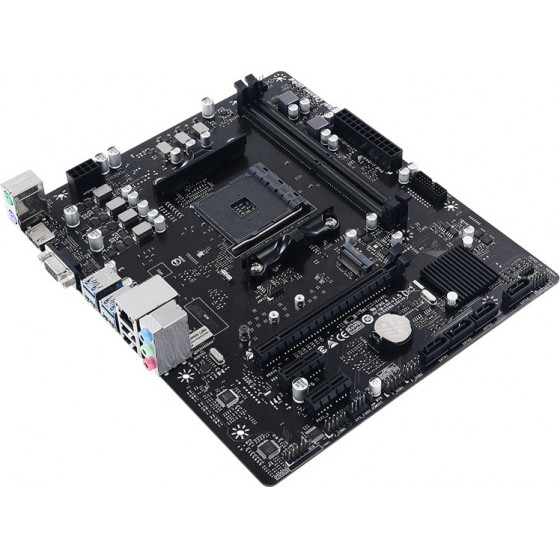

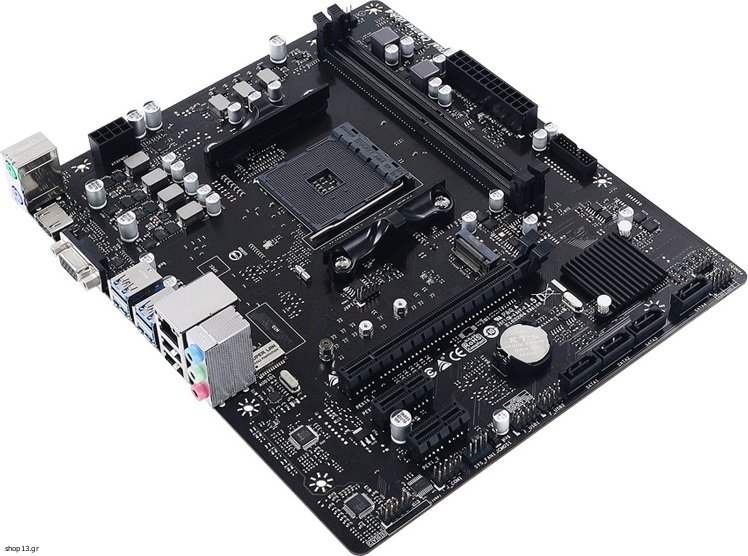

Biostar Μητρική 2x DDR4 AM4 USB 3.2 HDMI mATX Ver. 6.0 - (A520MH)

BIOSTAR Μητρική A520MH, 2x DDR4, AM4, USB 3.2, HDMI, mATX, Ver. 6.0
-Supports AMD 3rd Gen Ryzen(TM) (Matisse/ Renoir) processors
-AMD A520 single chip architecture
-Supports 2-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC)/3200(OC)/2933/2667/2400/2133/1866
-Supports USB 3.2 Gen1
-Supports PCIe M.2
-Supports HDMI 4K resolution
Τεχνικά Χαρακτηριστικά
Chipset: AMD A520
CPU Support: Socket AM4 support AMD 3rd Gen Ryzen(TM) (Matisse/ Renoir) processors, Support for future AMD Ryzen processors with BIOS update
Memory: 2x DDR4 DIMM, Max. Supports up to 64 GB Memory
Integrated video: By CPU model, Supports DX12, HDCP
Storage: 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10, 1x M.2 (M Key) Socket (Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD, Supports SATA III (6.0Gb/s) SSD)
LAN: Realtek RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability, Supports Super LAN Surge Protection
Audio codec: ALC887, 7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB: 6x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers), 6x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
Expansion slot: 1x PCIe 3.0 x 16 Slot, 2 x PCIe 3.0 x 1 Slots
Dimension: Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
OS support: Supports Windows 10(64bit)
Rear I/O:
1x PS/2 Keyboard
1x PS/2 Mouse
1x HDMI Port
1x VGA Port
1x LAN port
4x USB 3.2 (Gen1) Ports
2x USB 2.0 Ports
3x Audio Jack
Internal I/O:
4x SATA III (6.0Gb/s) Connectors
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Internal Stereo Speaker Header
1x COM Port Header




Κωδικός είδους:A520MH

Κατασκευαστής:BIOSTAR

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:27 x 6 x 22 cm

Βάρος Συσκευασίας:0.705 Kg

Τύπος συσκευασίας:Retail
