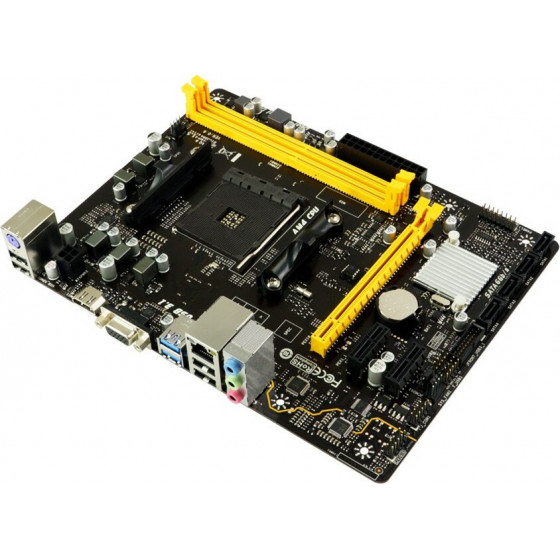

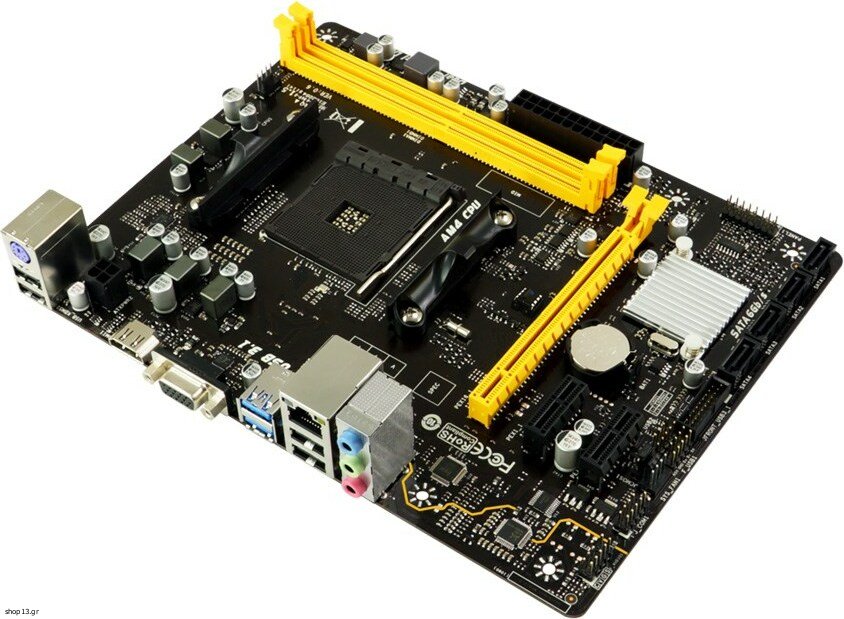

Biostar Μητρική 2x DDR4 AM4 USB 3.1 HDMI mATX Ver. 6.1 - (A320MH)

BIOSTAR Μητρική A320MH, 2x DDR4, AM4, USB 3.1, HDMI, mATX, Ver. 6.1

-Support AMD Ryzen CPU / APU
-AMD A320 single chip architecture
-Support 2-DIMM DDR4-2667/ 2400 up to 32G maximum capacity
-Support HDMI
-Support USB 3.1 Gen1
Τεχνικά Χαρακτηριστικά
Chipset: AMD A320
CPU Support: AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Memory: 2x DDR4, Support Dual Channel DDR4 2933/2667/2400/2133/1866 MHz, Max. Supports up to 32GB Memory
Integrated video: By CPU model, DX12, HDCP
Storage: 4x SATA3 Connectors
Support SATA RAID: 0,1,10
LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller
CODEC: Realtek ALC887 8-Channel HD Audio, Support HD Audio
USB:
2x USB 3.1 Gen1 Ports
1x USB 3.1 Gen1 Header
4x USB 2.0 Ports
2x USB 2.0 Header
Expansion slot: 1x PCI-E 3.0 x16 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed), 2x PCI-E 3.0 x1 Slots
Rear I/O:
1x PS/2 Keyboard/Mouse
2x USB 3.1 Gen1 Ports
4x USB 2.0 Ports
1x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
1x VGA Port, resolution up to 1920 x 1200 @60Hz
1x LAN port
3x Audio Jacks
Internal I/O;
1x USB 3.1 Gen1 Header
2x USB 2.0 Headers
4x SATA3 6Gb/s Connectors
1x Front Audio Header
1x Front Panel Header
1x CPU Fan Connector
1x System Fan Connector
1x COM Port Header
Dimension: Micro ATX Form Factor Dimension: 22.6cm x 17.4cm ( W x L )
OS Support: Windows 10(x64), Windows 7 (x64) for Bristol / Summit /Pinnacle Ridge only
Accessories:
2x SATA Cable
1x I/O Shield
1x DVD Driver
1x Quick Guide




Κωδικός είδους:A320MH

Κατασκευαστής:BIOSTAR

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:27 x 6 x 22 cm

Βάρος Συσκευασίας:0.66 Kg

Τύπος συσκευασίας:Retail
