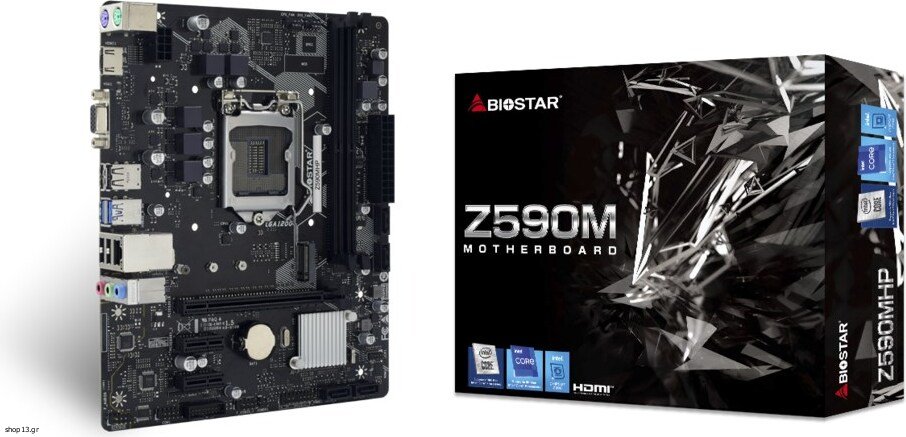

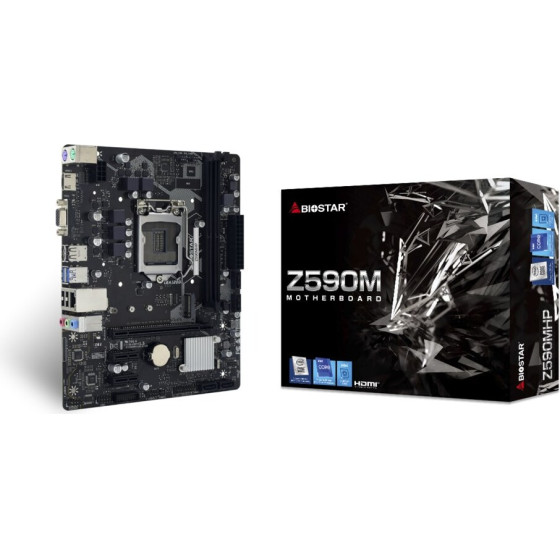

Biostar Intel Z590 LGA 1200 (Socket H5) micro ATX - (Z590MHP)

Processor
Maximum number of SMP processors: 1
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel(R) Pentium(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R)
Processor manufacturer: Intel

Graphics
HDCP: Yes
DirectX version: 12.0

Features
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: CPU, Fan, Temperature, Voltage
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z590

Memory
Supported memory clock speeds: 2933, 3600, 2133, 3866, 3200 MHz, 2666, 3733, 2400, 2800, 4000, 3800
Maximum internal memory: 64 GB
ECC ?ompatibility: Non-ECC
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel

Weight & dimensions
Width: 185 mm
Depth: 226 mm

Network
LAN controller: Intel(R) I219-V
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Power fan connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Front panel connector: Yes

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 0, 5, 10, 1
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI version: 1.4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 2

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

Safety warning
Warnings: Do not make changes or modifications to the appliance, which may void the warranty or cause damage., Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge., Avoid contact with liquids to prevent damage to electronic components.


Warranty: warranty 24 months
