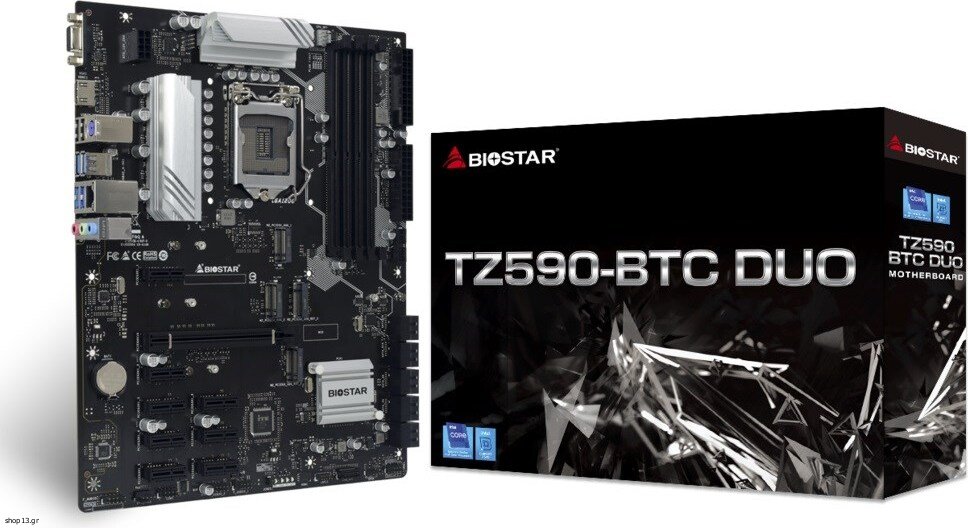

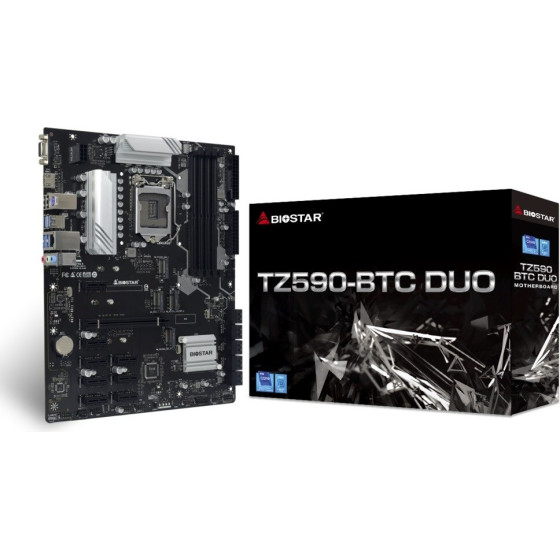

Biostar Intel Z590 Lga 1200 (Socket H5) Atx - (TZ590-Btc DUO)

Processor
Compatible processor series: Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)

Graphics
HDCP: Yes

Features
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Product colour: Black
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: Intel Z590
Motherboard chipset family: Intel
Audio chip: Realtek ALC887

Memory
Supported memory clock speeds: 2133, 3200 MHz, 2666, 2933, 3600 MHz, 2400, 2800
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
ECC ?ompatibility: Non-ECC
Number of memory slots: 4
Supported memory clock speed (max): 3600 MHz
Memory channels: Dual-channel

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
LAN controller: Intel I219V
Mobile network connection: No
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
USB 2.0 connectors: 2
Front panel connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
Number of SATA III connectors: 10
Number of COM connectors: 1
TPM connector: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 14
Number of HDDs supported: 10

Rear panel I/O ports
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots
PCI Express x1 (Gen 3.x) slots: 8
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1

Safety warning
Warnings: Do not make changes or modifications to the appliance, which may void the warranty or cause damage., Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge., Avoid contact with liquids to prevent damage to electronic components.


Warranty: warranty 24 months
