Περιγραφή
Processor
Maximum number of SMP processors: 1
Compatible processor series: Intel(R) Pentium(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R)
Processor manufacturer: Intel
Processor socket: LGA 1150 (Socket H3)
Graphics
HDCP: Yes
DirectX version: 11.1
Features
Windows operating systems supported: Windows 8, Windows 10, Windows 8.1, Windows 7
Audio output channels: 5.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel(R) H81
Audio chip: Realtek ALC887
Memory
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR3-SDRAM
ECC ?ompatibility: Non-ECC
Supported memory clock speeds: 1333, 1600, 1066
Maximum internal memory: 16 GB
Weight & dimensions
Depth: 190 mm
Width: 170 mm
Network
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Internal I/O
Number of SATA II connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 2
Front panel connector: Yes
Front panel audio connector: Yes
CPU fan connector: Yes
USB 2.0 connectors: 2
BIOS
Clear CMOS jumper: Yes
Packaging content
Cables included: SATA
Storage controllers
Supported storage drive interfaces: SATA II, SATA III

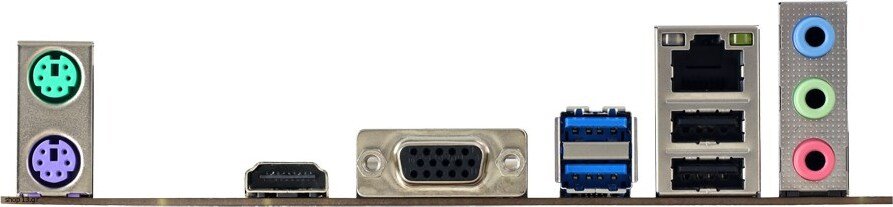

Rear panel I/O ports
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Expansion slots
PCI Express x16 (Gen 2.x) slots: 1
PCI Express x1 (Gen 2.x) slots: 1
Warranty: warranty 24 months
