Processor
Compatible processor series: Intel Core i7 12th Gen, Intel Core i9 13th Gen, Intel Core i7 13th Gen, Intel(R) Celeron(R), Intel Core i5 12th Gen, Intel(R) Pentium(R), Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen, Intel Core i3 12th Gen
Processor socket: LGA 1700
Processor manufacturer: Intel
Graphics
Parallel processing technology support: Not supported
Features
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Memory
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Supported memory clock speeds: 1866, 2133, 2400, 3200 MHz, 2666, 2933
Number of memory slots: 2
Maximum internal memory: 64 GB
ECC ?ompatibility: Non-ECC
Weight & dimensions
Width: 216 mm
Depth: 228 mm
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wi-Fi: No
Internal I/O
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
TPM connector: Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Drivers included: Yes
Cables included: SATA
Storage controllers
Supported storage drive interfaces: M.2, SATA III

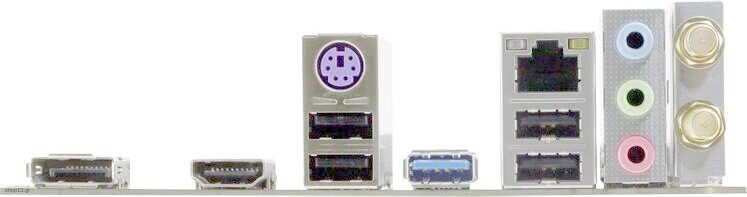

Rear panel I/O ports
DisplayPorts quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Warranty: warranty 24 months
