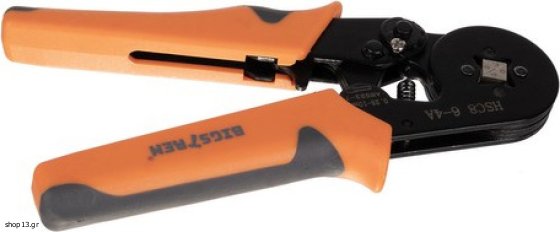

SLEEVE CRIMPING MACHINE + 1200 SLEEVES IN ORGANIZER CRIMPING TOOL - the tool is equipped with an automatic mechanism, thanks to which we do not have to put much force into crimping during work. Additionally, it has an adjustment knob installed, which allows you to adjust the puller depending on the thickness of the wire. The working range of the crimping tool is from 0.25 to 10 mm. Precise square profile of the clamp automatically adjusts to the cross-section of the crimped sleeve.

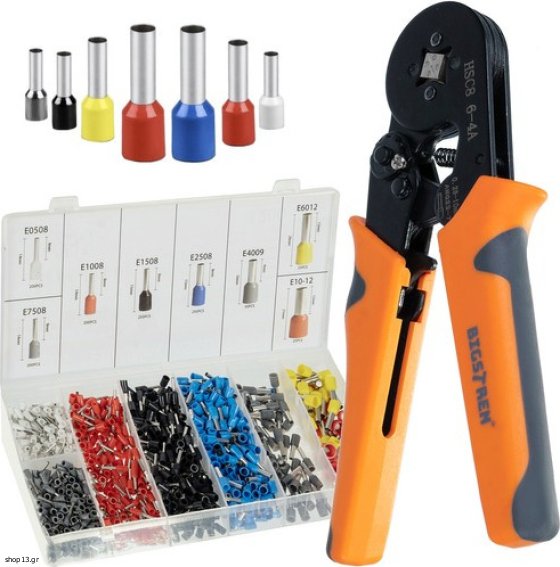

ORGANIZER WITH 8 SIZES OF SLEEVES - the crimper comes with a transparent organizer that holds 8 different sizes of crimp terminals from 0.5mm2 to 10mm2 . Each size is a different color.
QUICK CLAMPING - The process of crimping sleeves with a crimper involves placing the sleeve in the appropriate location in the material and then using the crimper to compress the sleeve. Due to the rapid movement, the sleeve is tightened, which permanently attaches it to the material. The crimping tool enables quick and efficient connection or clamping of elements, which speeds up work.
CLAMPING FORCE ADJUSTMENT - This feature allows you to adjust the clamping force to the specific needs and requirements of the application. Adjusting the clamping force is particularly important because too weak a clamp can lead to loose connections, while too strong a clamp can damage the wires or ferrules.
SPECIFICATION - color: black, orange; material: steel, others: TPE + iron, copper + tin + PP sleeves, PP organizer crimper working range: 0.25 to 10 mm; dimensions: 17 x 7.2 cm; weight: 556 g; weight in packaging: 621 g.
SPECIFICATION
color: black, orange
material: steel, other: TPE + iron, copper + tin + PP sleeves, PP organizer
crimper working range: 0.25 to 10 mm

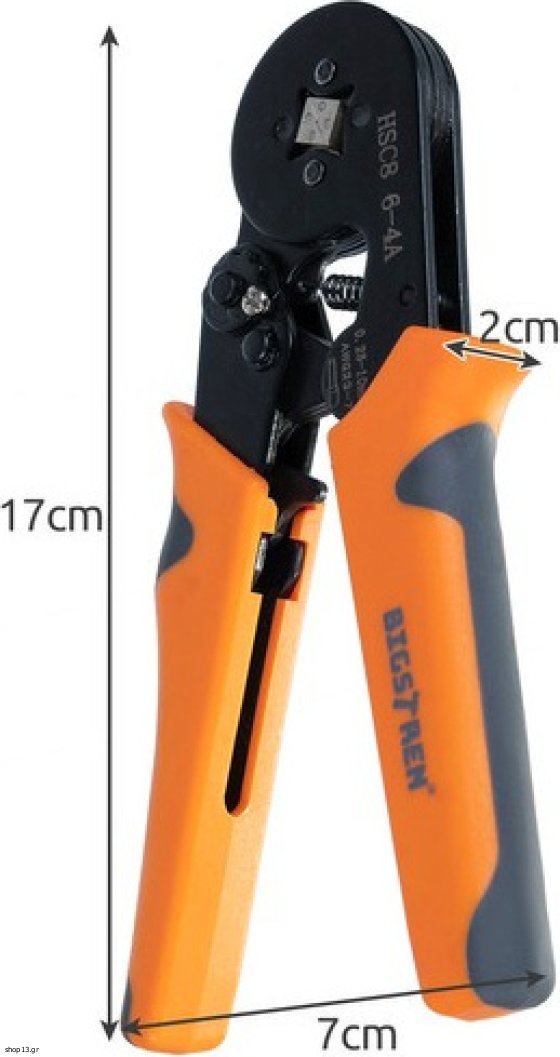

size: 17 x 7.2 cm
weight: 556 g
weight in package: 621 g
INCLUDED:
200 x white metal sleeve (length: 8 mm; cross-section: 0.50 mm2 )
200 x light gray metal sleeve, (length: 8 mm; cross section: 0.75 mm2 )
200 x red metal sleeve (length: 8 mm; cross-section: 1.00 mm2 )
250 x black iron sleeve (length: 8 mm; cross-section: 1.50 mm2 )
250 x blue metal sleeve (length: 8 mm; cross-section: 2.50 mm2 )
50 x gray metal sleeve (length: 9 mm; cross-section: 4.00 mm2 )
25 x yellow metal sleeve (length: 12 mm; cross section: 6.00 mm2 )
25 x red metal sleeve (length: 12 mm; cross-section: 10.00 mm2 )
organizer
crimper
Professional square press for crimping thin-walled terminals in the range of 0.25-10 mm 2 . The product is an essential tool for installing cable terminals, which can be used by both professionals and amateurs. Useful for all types of electrical and electrical installation assembly and service work.
PRODUCER:
ISO TRADE Sp??ka z o.o.
ul. Hangarowa 15
59-220 Legnica, Polska
[email protected] RESPONSIBLE PERSON IN THE EU:
ISO TRADE
WARNING CONTENT:
- Use as intended.
- Before use, make sure the crimper is not damaged.
- Keep the item clean.
- Do not use the tool for work for which it is not intended.
- Keep away from sources of ignition.
-Eye protection. Always wear safety glasses when using a crimper to protect your eyes from metal fragments or other debris that may be created during operation.
-Using protective gloves. Gloves can protect your hands from sharp edges or other injuries when handling wires and ferrules.
-Use both hands to operate. For safety and efficiency, always use both hands when clamping, which allows for better control of the tool
