Maximum performance in a compact PNP version

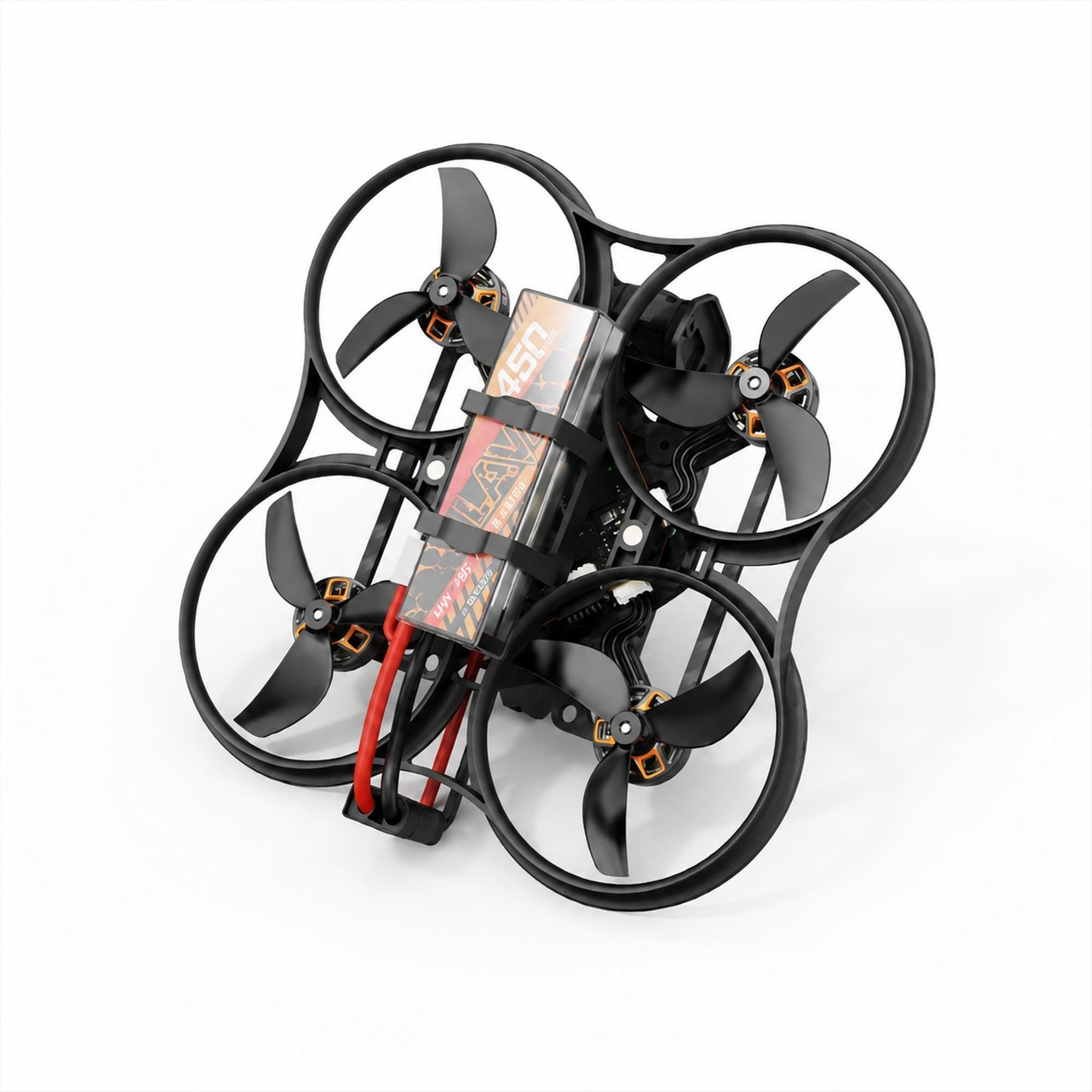

BETAFPV Pavo Pico II PNP SBUS is a lightweight FPV cinewhoop drone, designed as a compact platform for your own video system configuration. The 80 mm wheelbase combines the mobility of a micro drone with great expansion flexibility, making it ideal for freestyle flights and creating smooth close-range shots. The PNP / SBUS version weighs around 39.1 g without the battery and VTX module, allowing pilots to choose the image transmission system themselves according to their own requirements.
Rigid next-generation frame

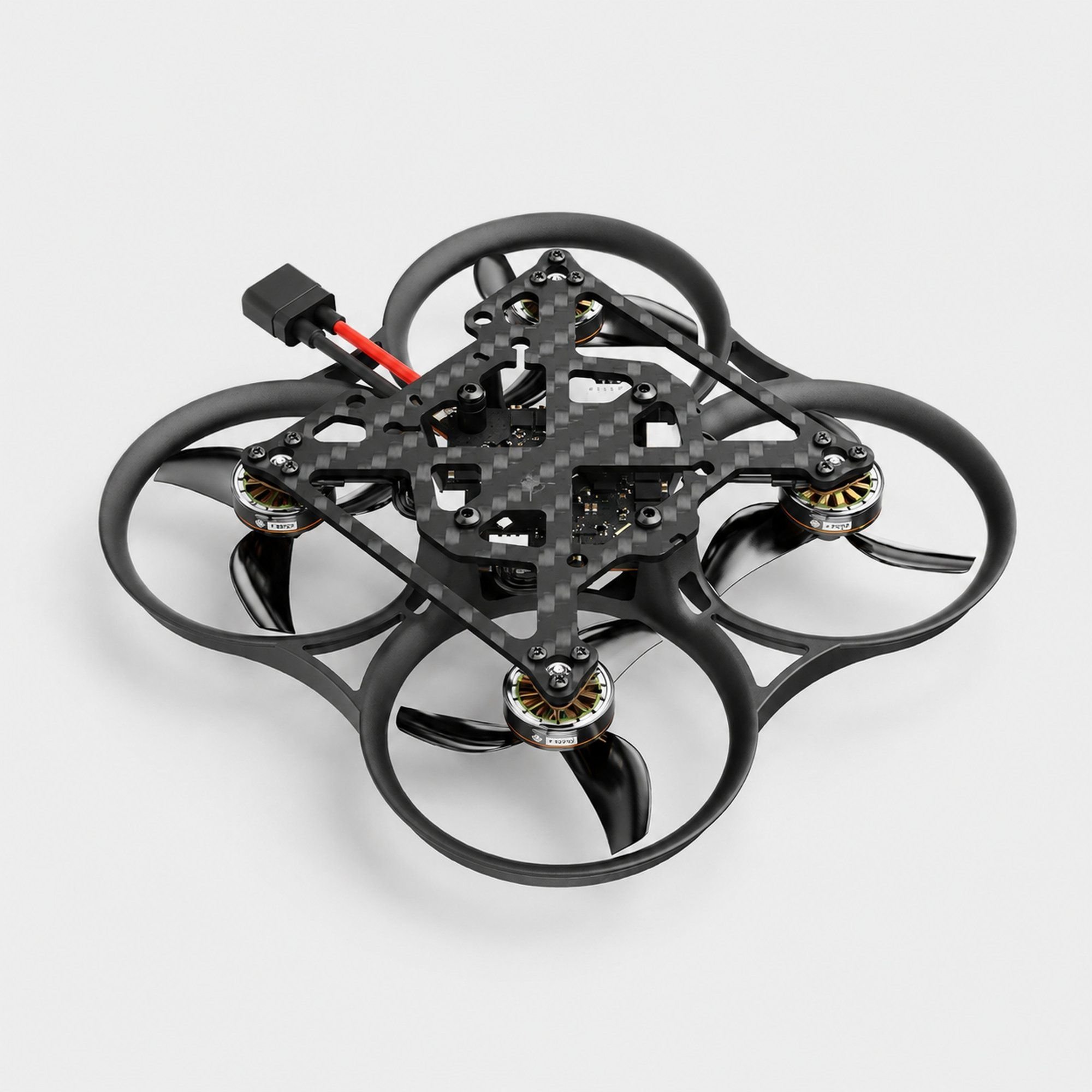

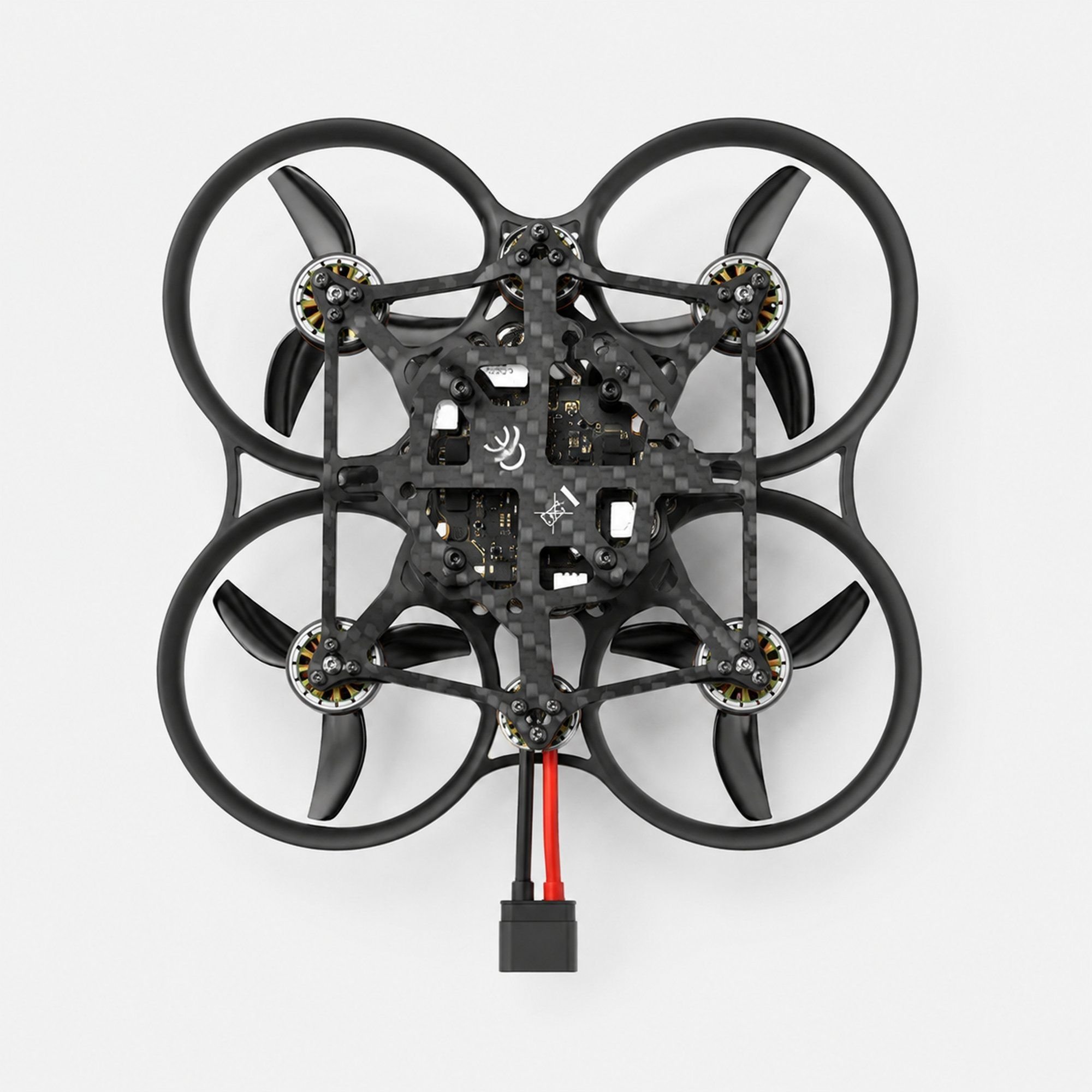

The new Pavo Pico II frame has been redesigned for greater rigidity, simpler assembly and more convenient servicing during everyday use. The design uses guided mounting points, embedded nuts and a 4-screw mounting system, which makes assembly easier and helps maintain proper fitment of the components. The carbon plate has been prepared for the DJI O4 Air Unit and DJI O4 Air Unit Pro, allowing the platform to support various FPV configurations.
Ready base for DJI O4 and O4 Pro
The Pavo Pico II in the PNP version has been prepared for users who want to build their own FPV set with a chosen video transmission system. The frame and mounting plate allow the use of the DJI O4 Air Unit or DJI O4 Air Unit Pro, enabling the construction of a lightweight set with digital HD video transmission. The PNP version does not include a VTX module, so it gives you the option to tailor the configuration to your own needs.
F4 2-3S 20A AIO controller in SBUS version
The heart of the design is the F4 2-3S 20A AIO FC flight controller, designed to work with the digital HD VTX system. The board features an integrated 20A ESC, 9V 2A power for the HD VTX system and 5V 3A for external devices. The PNP / SBUS version has been prepared to work with the DJI SBUS protocol, making it intended for pilots using compatible DJI controllers. A dedicated 6-pin HD VTX connector makes it easier to install FPV system components.
LAVA 1102 drive and lightweight construction
The Pavo Pico II uses LAVA 1102 14000KV motors and Gemfan 45 mm 3-Blade propellers, creating a setup focused on strong thrust, quick response and efficient operation. The manufacturer indicates a 10% increase in power compared with the previous configuration, which translates into dynamic acceleration and good control during flight. Once equipped with the appropriate video system and battery, the drone can serve as a lightweight cinewhoop for FPV flights, freestyle and recording in small spaces.
VTX system installation
The set includes plates and mounting brackets for the O4 Air Unit and O4 Air Unit Pro, 5.8G VTX antennas, damping balls, washers and a complete set of screws. This equipment makes it easier to prepare the structure for a digital HD video system and reduces the need to select additional mounting components. The PNP version does not include a VTX module, so the user can choose the final video transmission system independently.
Package contents
The BETAFPV Pavo Pico II PNP SBUS set includes the mounting components needed to prepare your own FPV configuration with the DJI O4 Air Unit or DJI O4 Air Unit Pro system.
1 x BETAFPV Pavo Pico II Brushless Whoop Quadcopter -- PNP version
1 x top plate for O4 Air Unit Bracket II
1 x bottom plate for O4 Air Unit Bracket II
1 x O4 Air Unit Pro Bracket mount
4 x GF 45 mm 3-Blade propellers
1 x Type-C to SH1.0 adapter
1 x SH1.0-4Pin adapter cable
6 x 6.6 mm damping balls for O4 Air Unit Pro Bracket
6 x 8.8 mm damping balls for O4 Air Unit Bracket II
6 x 1.5 mm damping pads for O4 Air Unit Bracket II
6 x M2x10 socket head cap screws
6 x M2x4 flat head hex screws
6 x M2x4 self-tapping hex screws
8 x M1.4x6 self-tapping Phillips pan head screws with washer
2 x 5.8G VTX antenna
1 x 5.8G VTX antenna mount
1 x Phillips screwdriver
1 x H1.5 hex screwdriver
Note: the PNP version does not include a VTX module in the set.
Technical specifications
Parameter
Details
ProductBETAFPV Pavo Pico II Brushless Whoop Quadcopter
VersionPNP / SBUS
TypeBrushless FPV whoop / cinewhoop PNP drone
ColourBlack
Wheelbase80 mm

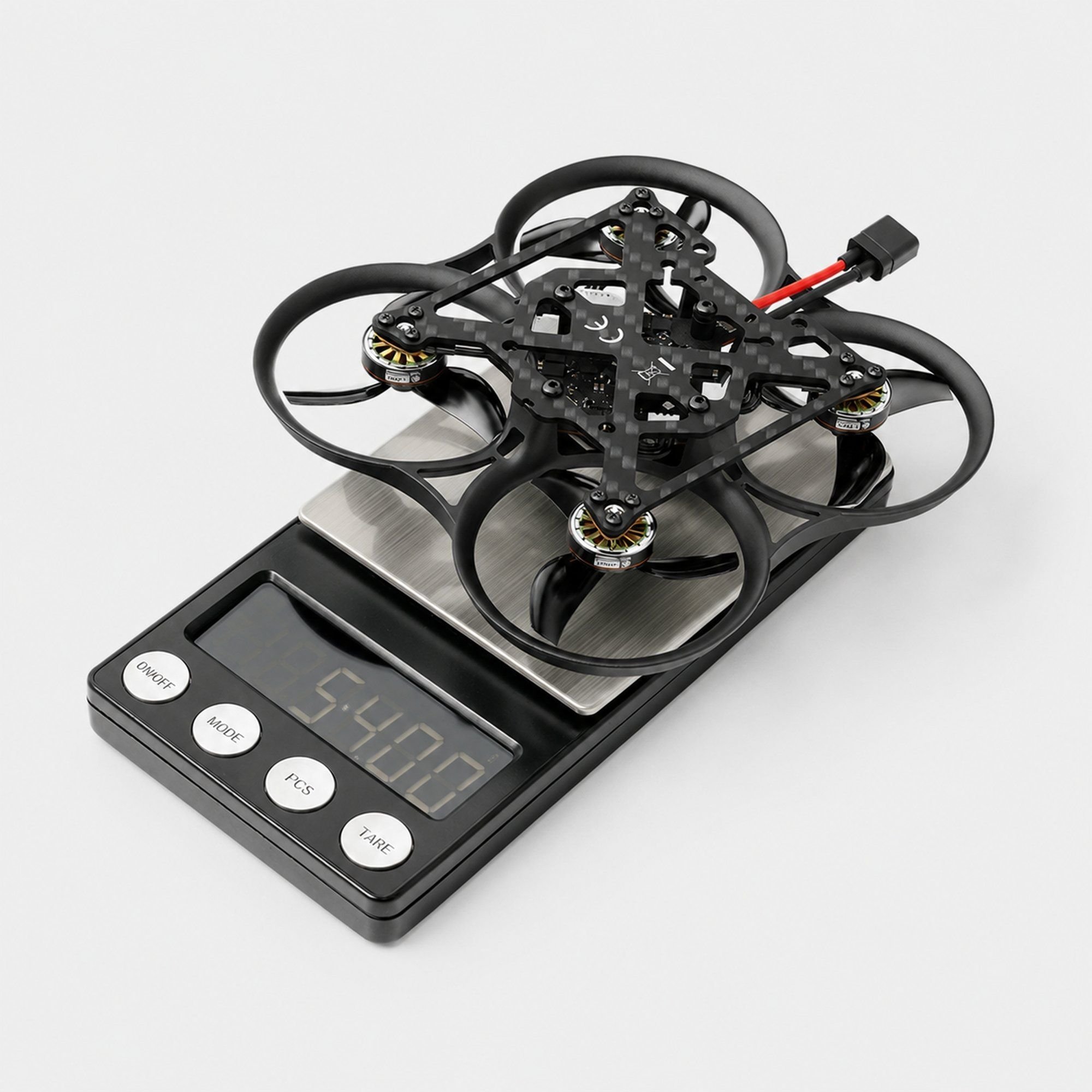

WeightApprox. 39.1 g -- PNP version without battery and VTX
FramePavo Pico II Brushless Whoop Frame
VTX compatibilityDJI O4 Air Unit, DJI O4 Air Unit Pro
VTX includedNo
Receiver / control protocolDJI SBUS
Flight controllerF4 2-3S 20A AIO FC
Controller MCUSTM32F405RGT6 168 MHz
ESCIntegrated 20A, 2-3S input
ESC peak current25A
ESC firmwareBluejay BB51
BEC9V 2A for HD VTX, 5V 3A for external devices
HD VTX connector6-pin
MotorsLAVA 1102 Brushless Motor
Motor KV14000KV
PropellersGF 45 mm 3-Blade
Battery connectorXT30
Battery slot16 x 12.7 mm
Recommended batteryLAVA II 2S 580 mAh / 680 mAh, LAVA 2S 550 mAh, LAVA 2S 450 mAh
Flight timeUp to approx. 6 min 30 s in O4 configuration with a LAVA 2S 550 mAh battery
Thrust-to-weight ratio6.35:1 in O4 configuration
Supported video systemDJI O4 Air Unit / DJI O4 Air Unit Pro after fitting out
Intended useFPV flights, freestyle, cinewhoop, custom HD VTX configurations, recording in small spaces
