Περιγραφή

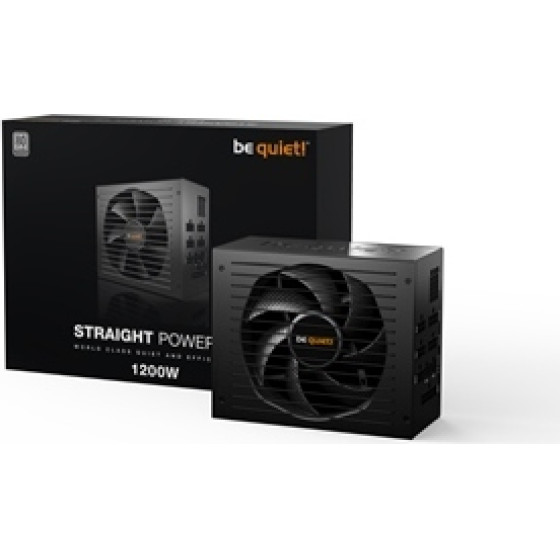

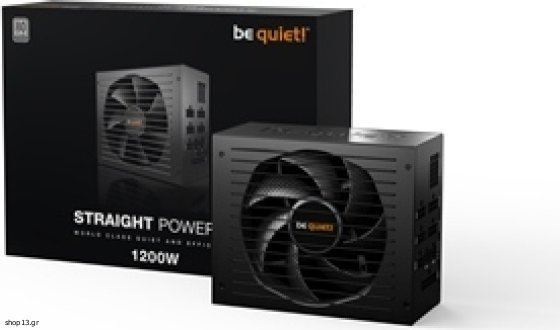

Straight Power 12, 1200W Modular Power Supply, 80 Plus Platinum Certified.
Compliant ATX 3.0. Full support for PCI-E 5.0 GPUs and GPUs with 6+2 pin connector.
AC Input: Voltage 110-240V, Current 15/7,5A, Frequency 50-60Hz.
DC Out: +3,3V max 25A, +5V max 25A, +12V1 max 100A, -12V max 0,5A, +5Vsb max 3A. Max Combined Power output 1200W. Power Good signal 100-150 ms.
Efficiency: Platinum Energy 80 Plus certification. 65.0% at 2% load, 89.0% at 10% load, 93.1% at 20% load, 93.7% at 50% load, 92.4% at 100% load.
Cables/Connectors: 1x ATX-Motherboard (20+4-pin), 1x P8 (CPU), 1x P4+4 (CPU), 2x 12VHPWR, 4x PCI-E 6+2 pin (GPU), 2x PATA, 9x SATA.
Fan: Silent Wings 135mm. Exceptional silent fan. Max fan speed 2600 rpm temperature dependent.
Protection: OCP (over current protection), OVP (over voltage protection), UVP (under Voltage protection), SCP (short circuit protection), OTP (over temperature protection), OPP (over power protection), SIP (surge & inrush protection).
MTBF: >100.000 Hours.
Safety Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, UKCA, cRUus
Environmental directives: Energy Star 8.0, ErP, WEEE, RoHs, Triman.
Dimensions without cable: 180(L)x150(W)x86(H)mm.
Total Weight: 2.04Kg.
Color: Black.
Warranty: 10 years.
