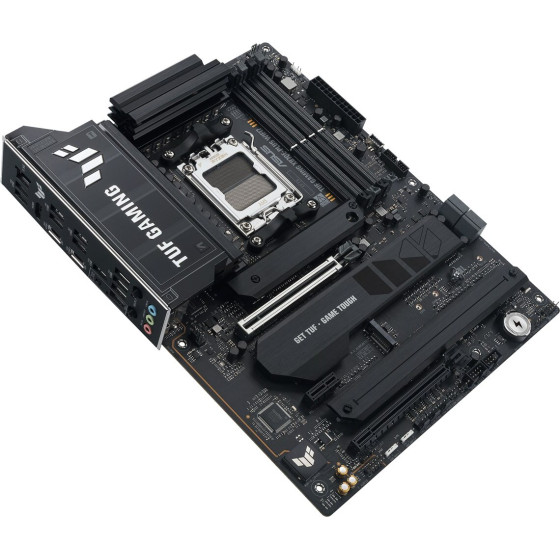

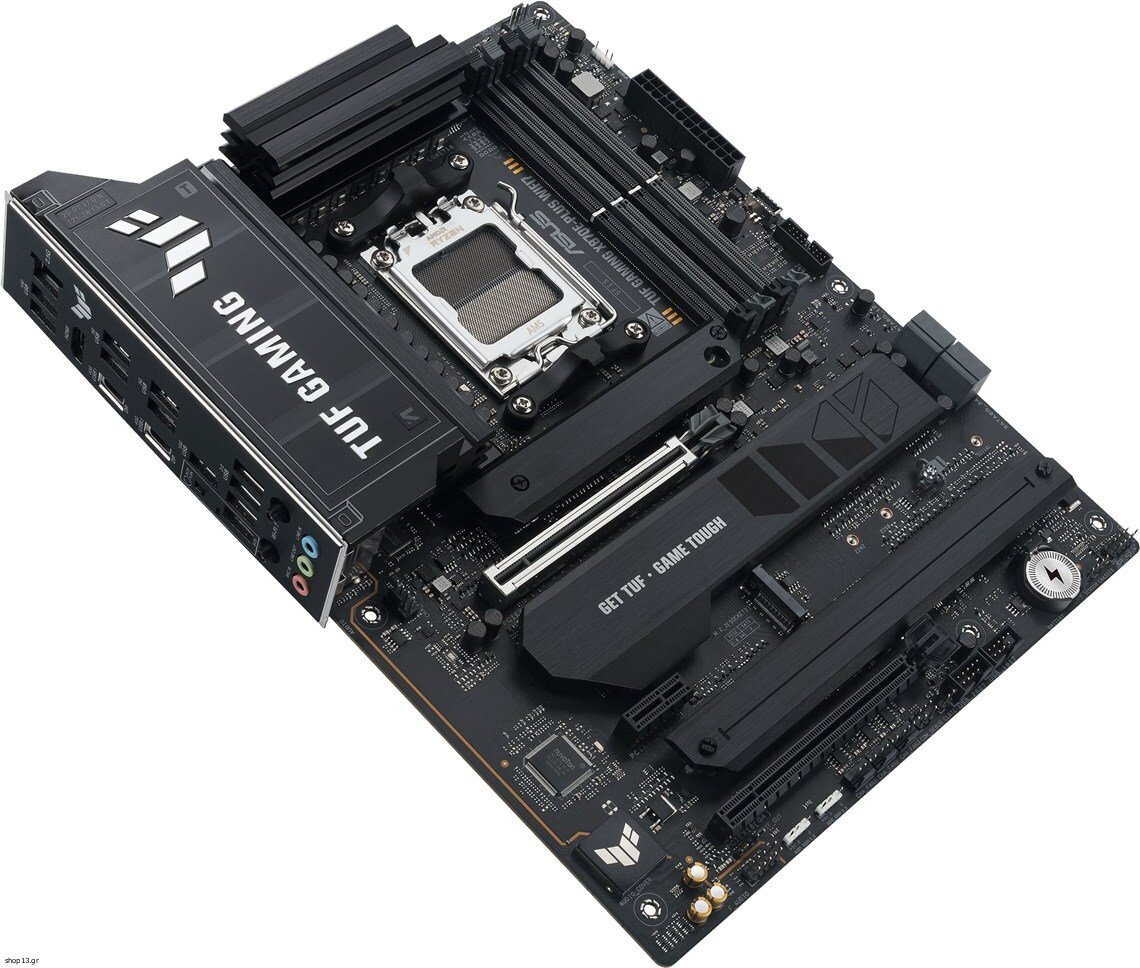

Asus Tuf Gaming X870E-Plus WIFI7 Amd X870E Socket AM5 Atx - (90MB1M70-M0EAY0)

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11
Motherboard form factor: ATX
Cooling type: Passive
Power source type: ATX
Motherboard chipset: AMD X870E
Product colour: Grey

Memory
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Height: 48 mm
Width: 305 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Bluetooth: Yes

Internal I/O
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
12V power connector: Yes
RGB LED pin header: Yes
Number of temperature sensor headers: 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
Number of EPS power connectors (8-pin): 2

BIOS
BIOS type: UEFI AMI

Packaging data
Package depth: 273 mm
Package weight: 2.08 kg
Package width: 353 mm
Package height: 68 mm

Packaging content
Cables included: SATA
Antenna included: Yes
Screws included: Yes

Storage controllers
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 8
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD

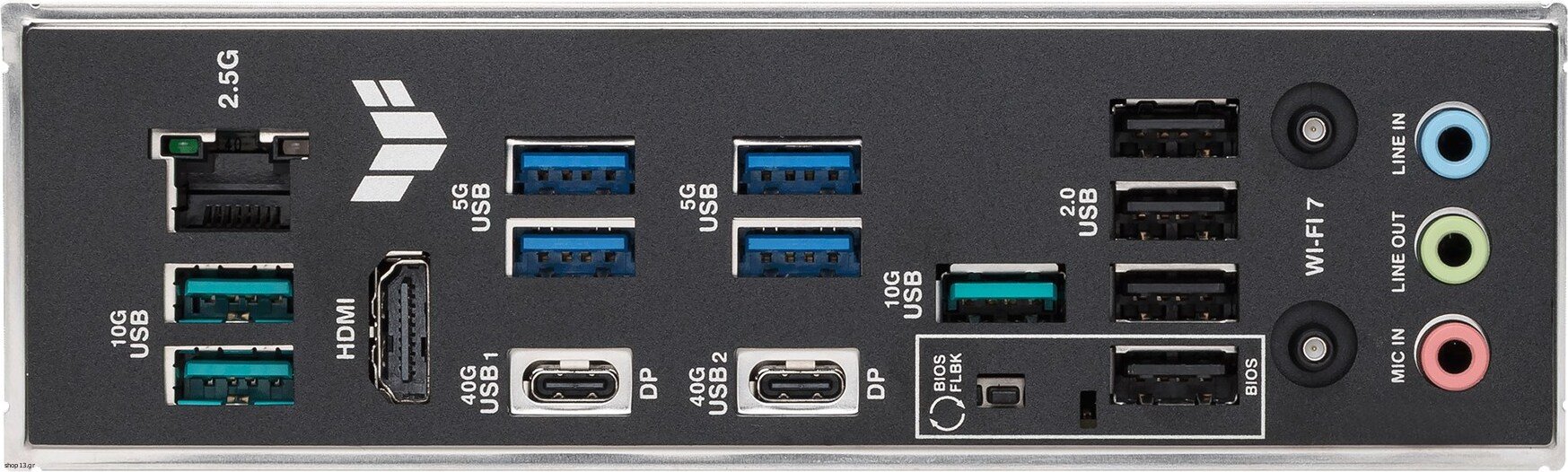

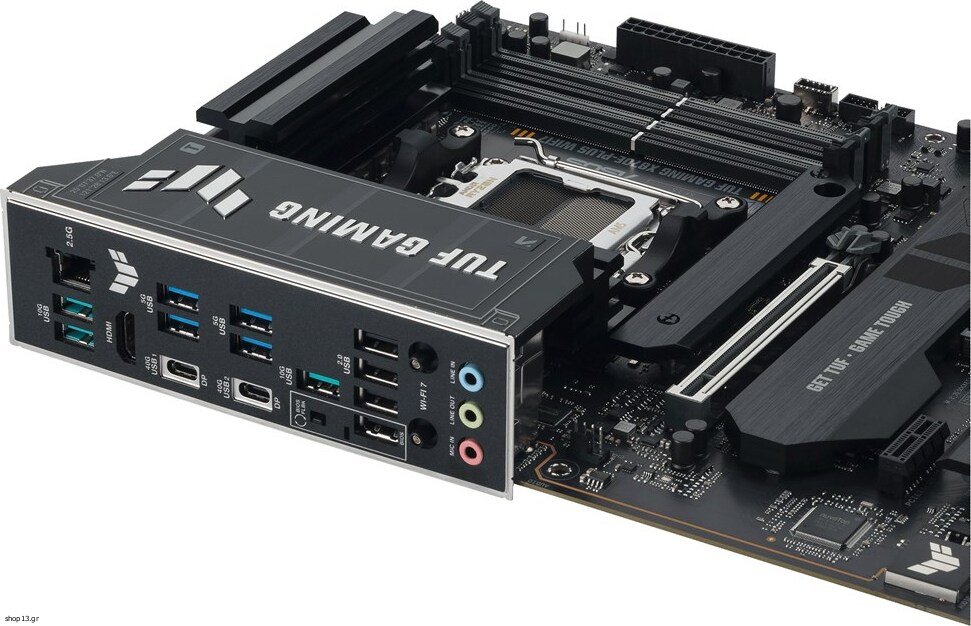

Rear panel I/O ports
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
WiFi-AP antenna jack: 2
USB4 Gen 3x2 ports quantity: 2

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
4th M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
4th M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 5.0
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 2280

Other features
Weight: 1.56 kg
Quick installation guide: Yes


Warranty: warranty 36 months
