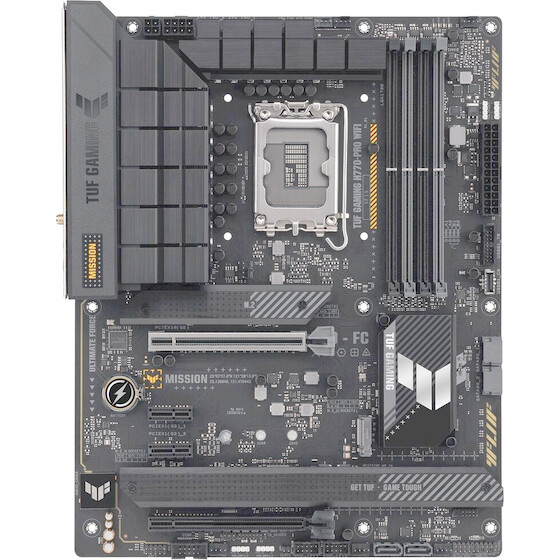

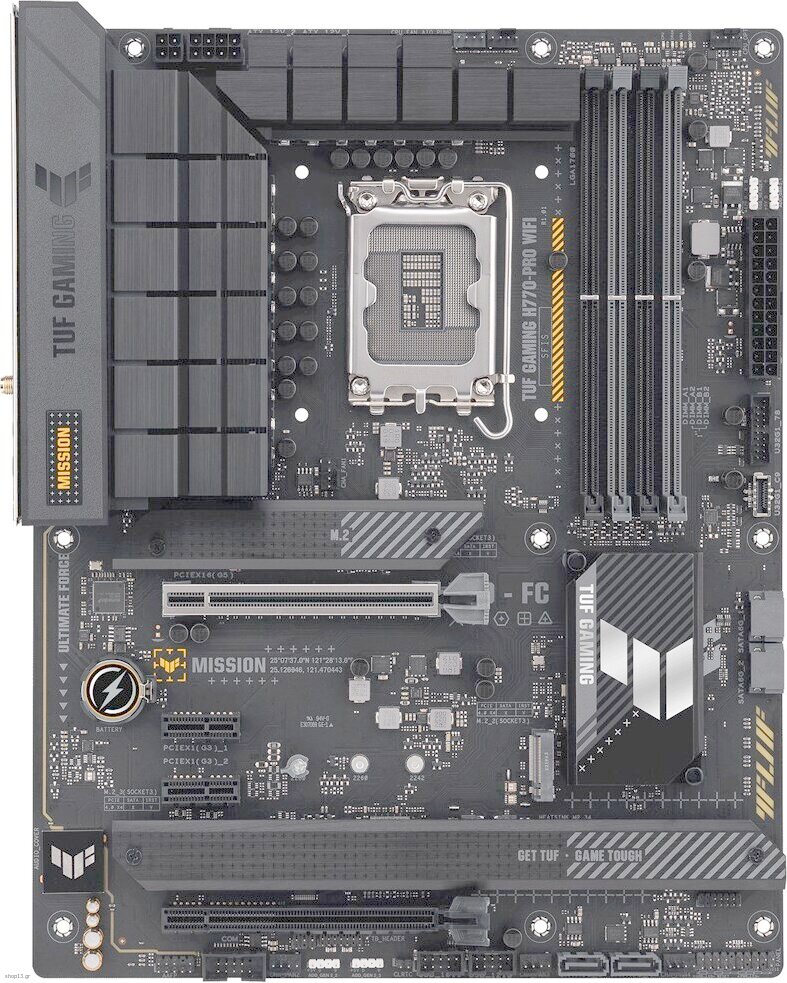

Asus Tuf Gaming H770-Pro Wifi Intel H770 Lga 1700 Atx - (90MB1D50-M1EAY0)

Processor
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R)
Maximum number of SMP processors: 1
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Power source type: ATX
Motherboard chipset: Intel H770
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset family: Intel
Cooling type: Passive
Windows operating systems supported: Windows 10, Windows 11

Memory
Supported memory clock speeds: 5000, 6000, 6800, 5200, 6600, 4800, 5800, 5400, 6200, 7000, 6400, 5600, 7200
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Supported memory clock speed (max): 7200 MHz
ECC ?ompatibility: Non-ECC
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Ethernet LAN: Yes

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Thunderbolt headers: 1
CPU fan connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
Front panel connector: Yes
EPS power connector (8-pin): Yes
Chassis intrusion connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
Front panel audio connector: Yes
Number of chassis fan connectors: 4
RGB LED pin header: Yes
12V power connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package height: 270 mm
Package depth: 75 mm
Package weight: 1.98 kg
Package width: 340 mm

Packaging content
User guide: Yes
Cables included: SATA

Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 5, 1, 10
Number of storage drives supported: 8
Number of HDDs supported: 4

Rear panel I/O ports
DisplayPort version: 1.4
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI version: 2.1
HDMI ports quantity: 1
Microphone in: Yes
Line-in: Yes
Headphone outputs: 1
WiFi-AP antenna jack: 2

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.


Warranty: warranty 36 months
