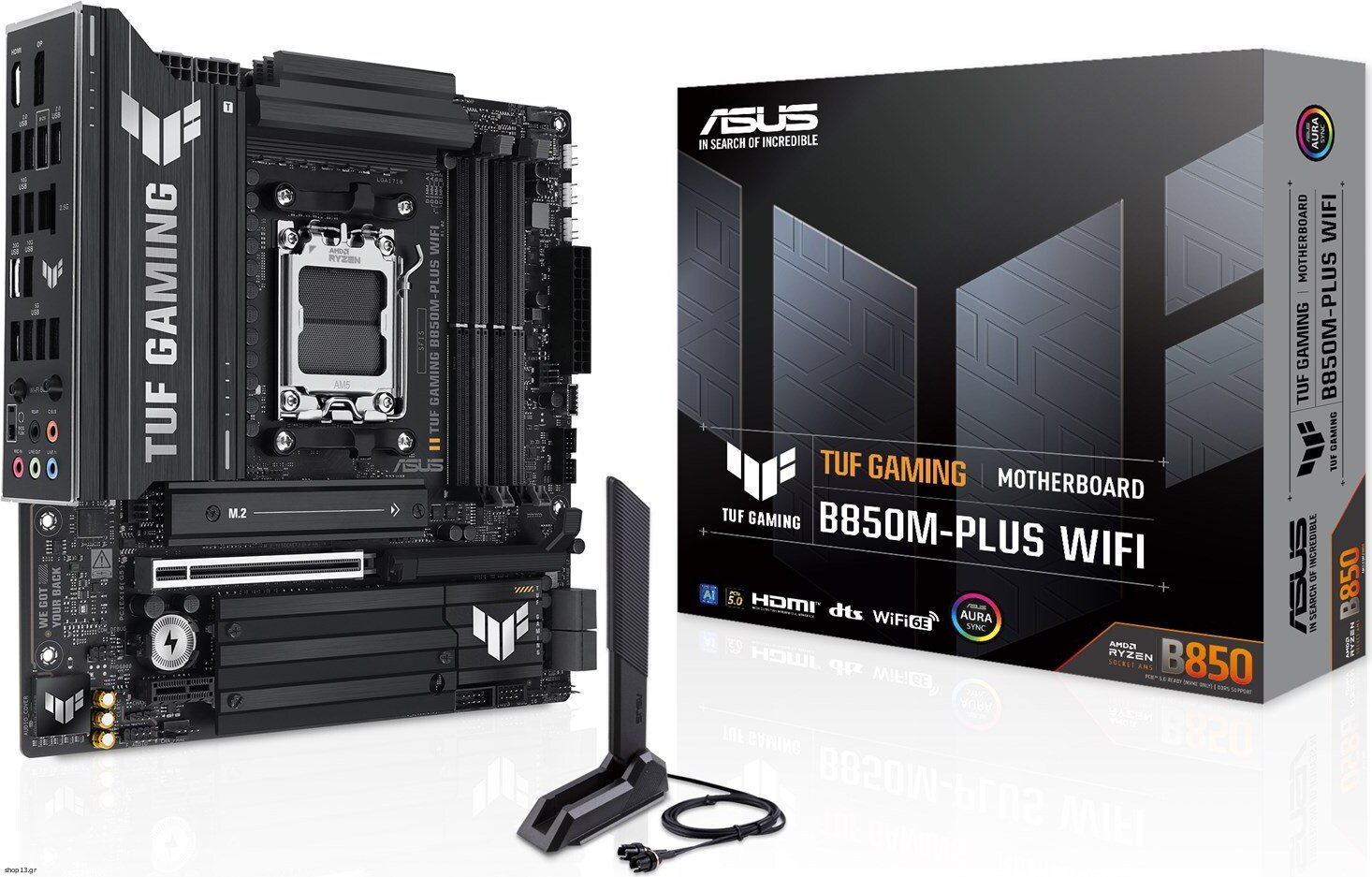

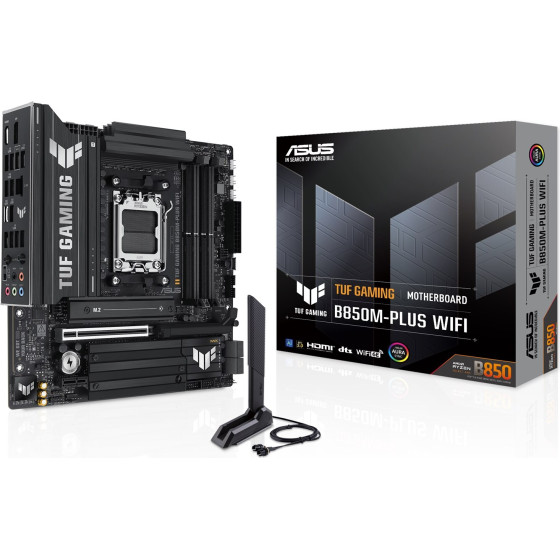

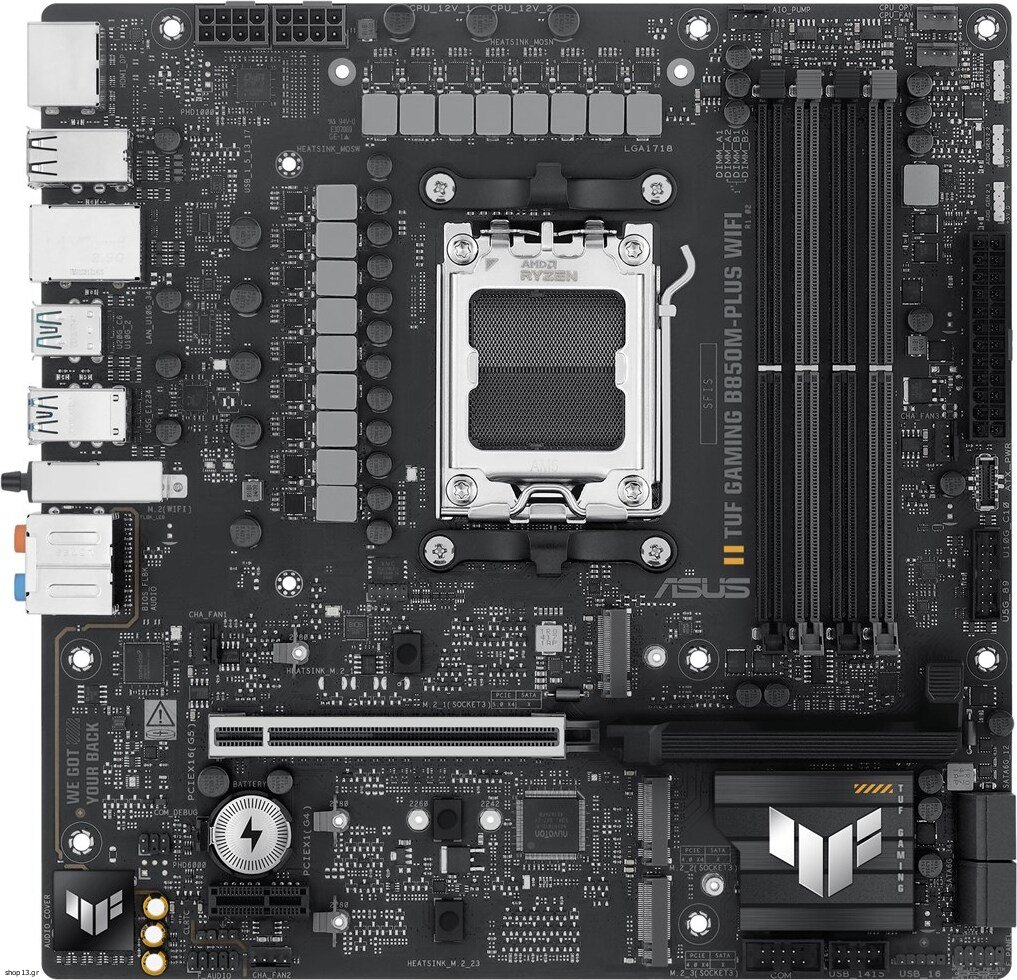

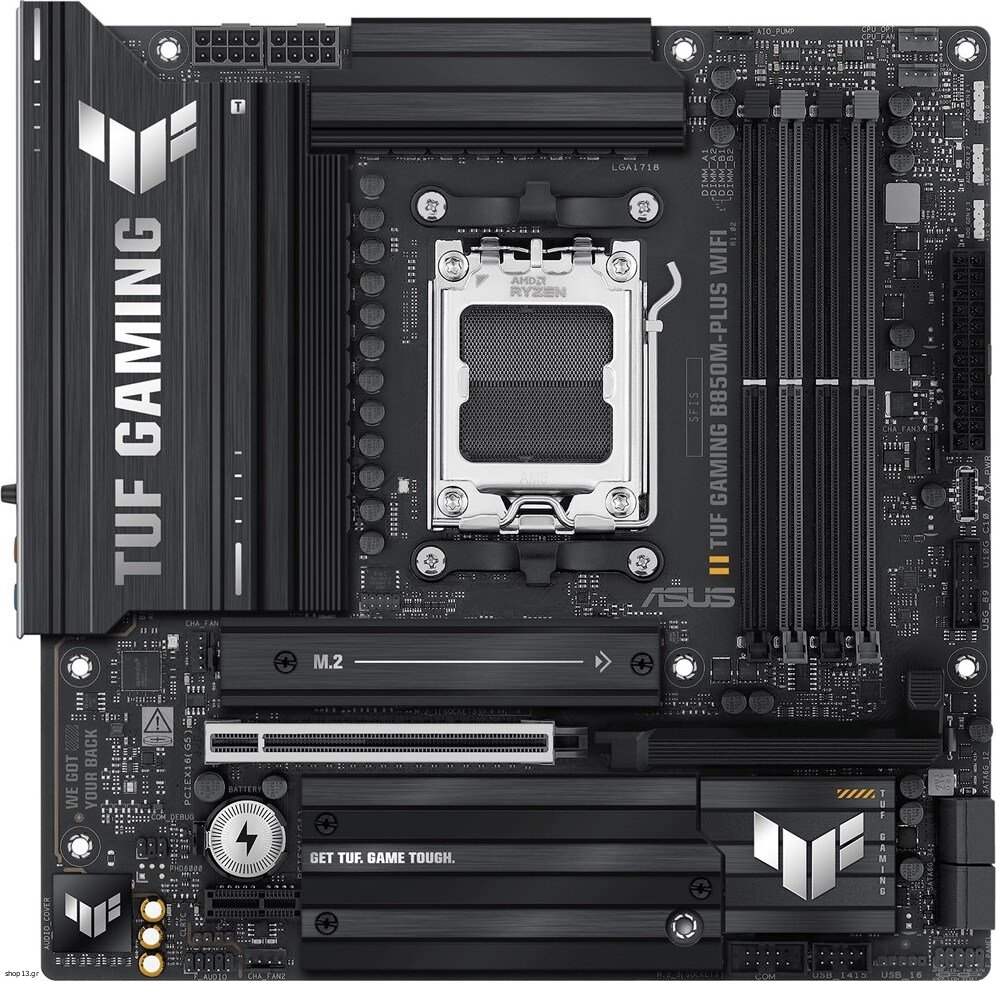

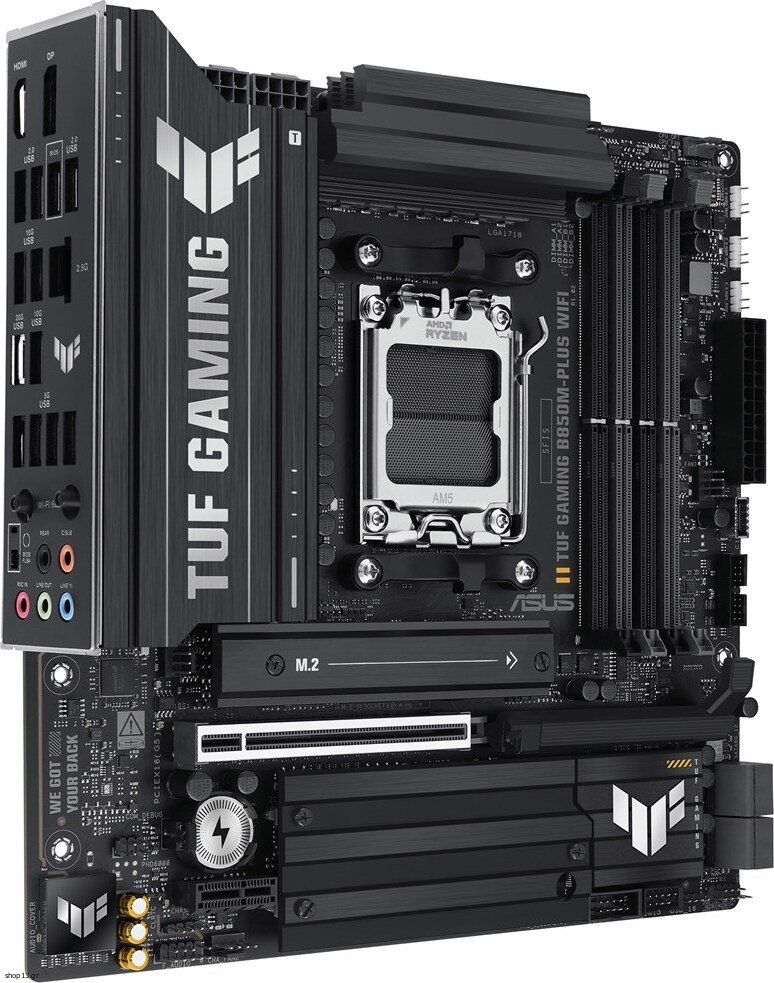

Asus Tuf Gaming B850M-Plus Wifi Amd B850 Socket AM5 Micro Atx - (90MB1IY0-M0EAY0)

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC1220P
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Product colour: Black

Memory
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory: 192 GB

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Bluetooth: Yes

Internal I/O
Chassis intrusion connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 3
Number of COM connectors: 1
12V power connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package depth: 275 mm
Package width: 275 mm
Package height: 67.5 mm
Package weight: 1.68 kg

Packaging content
Cables included: SATA
Antenna included: Yes
Screws included: Yes

Storage controllers
RAID levels: 0, 10, 5, 1
Number of HDDs supported: 4
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280

Other features
Weight: 1.2 kg

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.


Warranty: warranty 36 months
