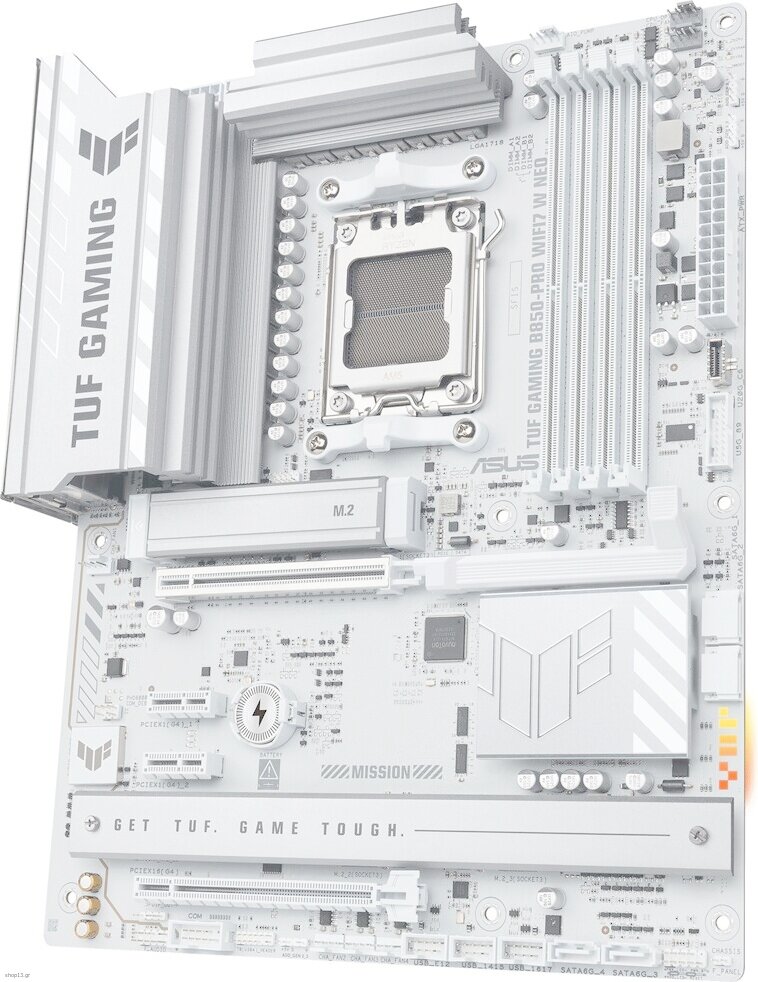

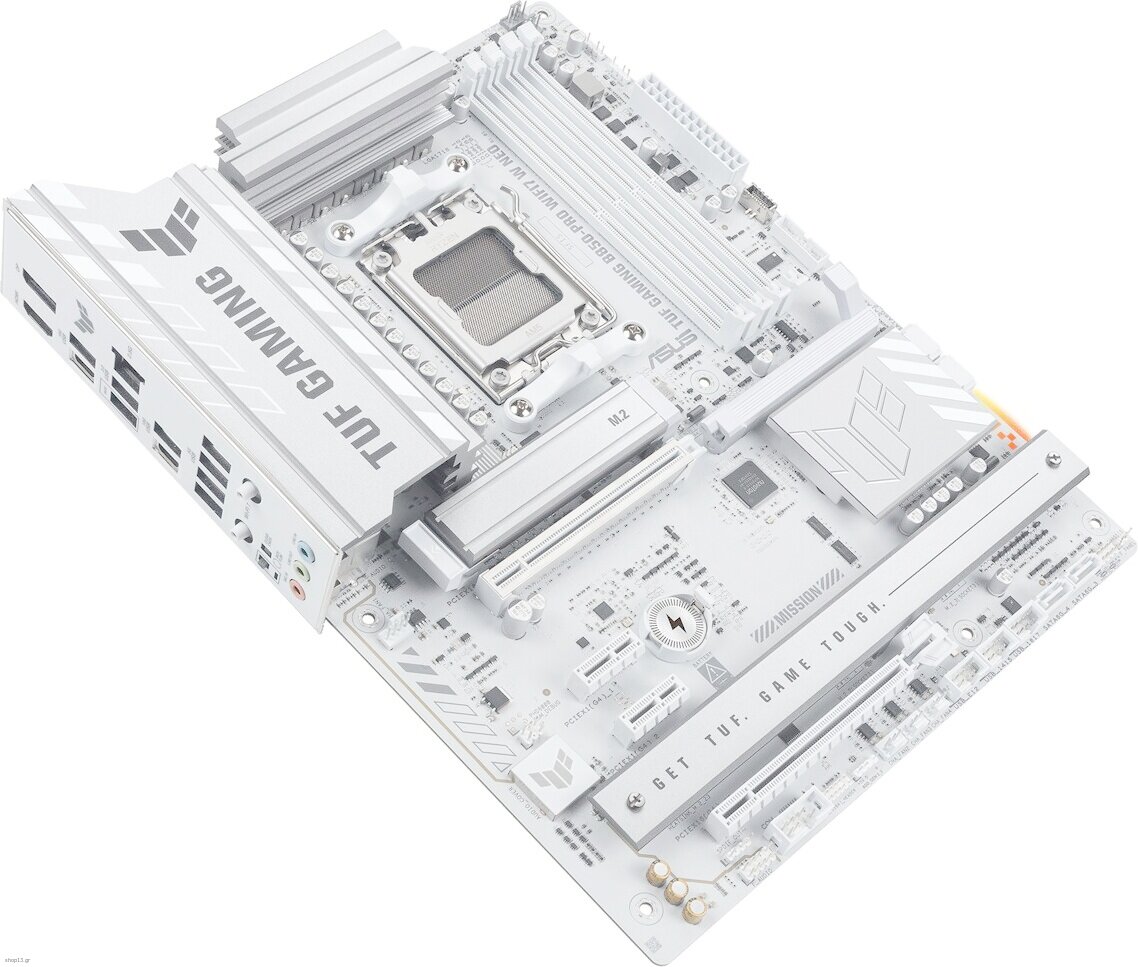

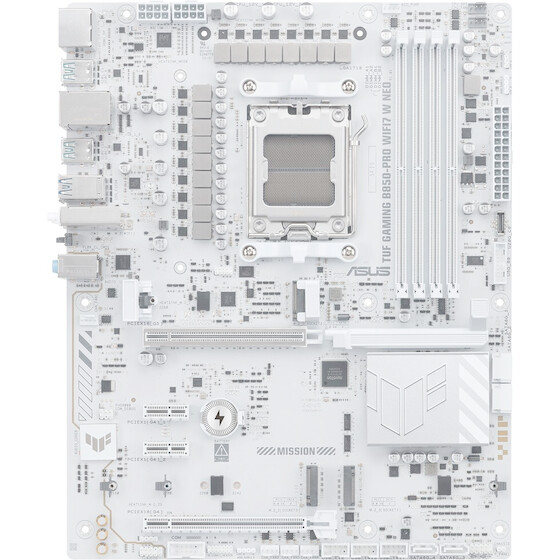

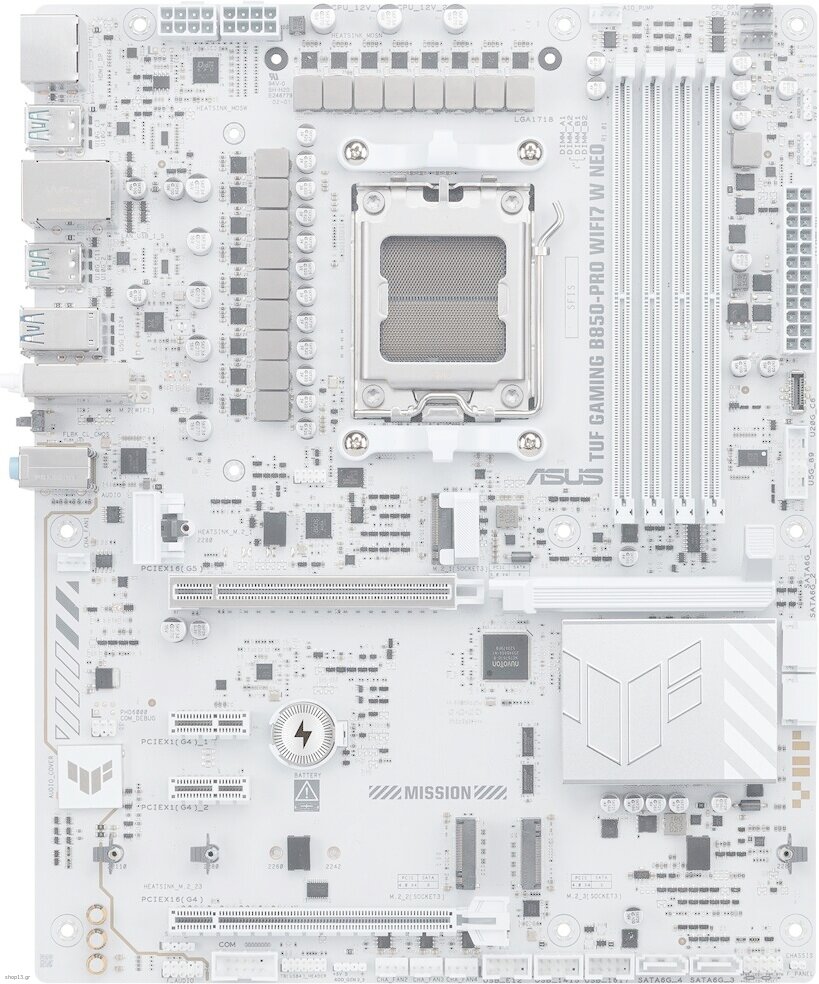

Asus Tuf Gaming B850-Pro WIFI7 W Neo Amd B850 Socket AM5 Atx - (90MB1NW0-M0EAY0)

Processor
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio chip: Realtek ALC1220P
Motherboard form factor: ATX
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Product colour: White
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

Memory
Supported memory clock speed (max): 9000 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB

Weight & dimensions
Depth: 244 mm
Height: 50 mm
Width: 305 mm

Network
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Realtek RTL8922AE
Ethernet LAN: Yes
Bluetooth version: 5.4
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O
12V power connector: Yes
Number of CPU fan connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of water pump connectors: 1
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
USB 2.0 connectors: 3
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 4

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package weight: 1.94 kg
Package depth: 273 mm
Package width: 353 mm
Package height: 68 mm

Storage controllers
Number of storage drives supported: 7
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 0, 10, 5
RAID support: Yes

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 4.x) slots: 2

Other features
Weight: 1.35 kg


Warranty: warranty 36 months
