Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Graphics
On-board graphics card: No
Parallel processing technology support: Not supported
Features
Windows operating systems supported: Windows 11, Windows 10 x64
Cooling type: Passive
Product colour: Multicolour
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset family: AMD
Memory
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Unbuffered memory: Yes
Maximum internal memory: 256 GB
ECC ?ompatibility: ECC & Non-ECC
Weight & dimensions
Height: 48 mm
Width: 305 mm
Depth: 244 mm
Network
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Bluetooth: Yes
Internal I/O
EPS power connector (8-pin): Yes
Front panel connector: Yes
RGB LED pin header: Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
Number of chassis fan connectors: 4
Number of COM connectors: 1
12V power connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Number of water pump connectors: 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 3
BIOS
BIOS type: UEFI AMI
Packaging data
Package width: 353 mm
Package weight: 1.78 kg
Package depth: 273 mm
Package height: 68 mm

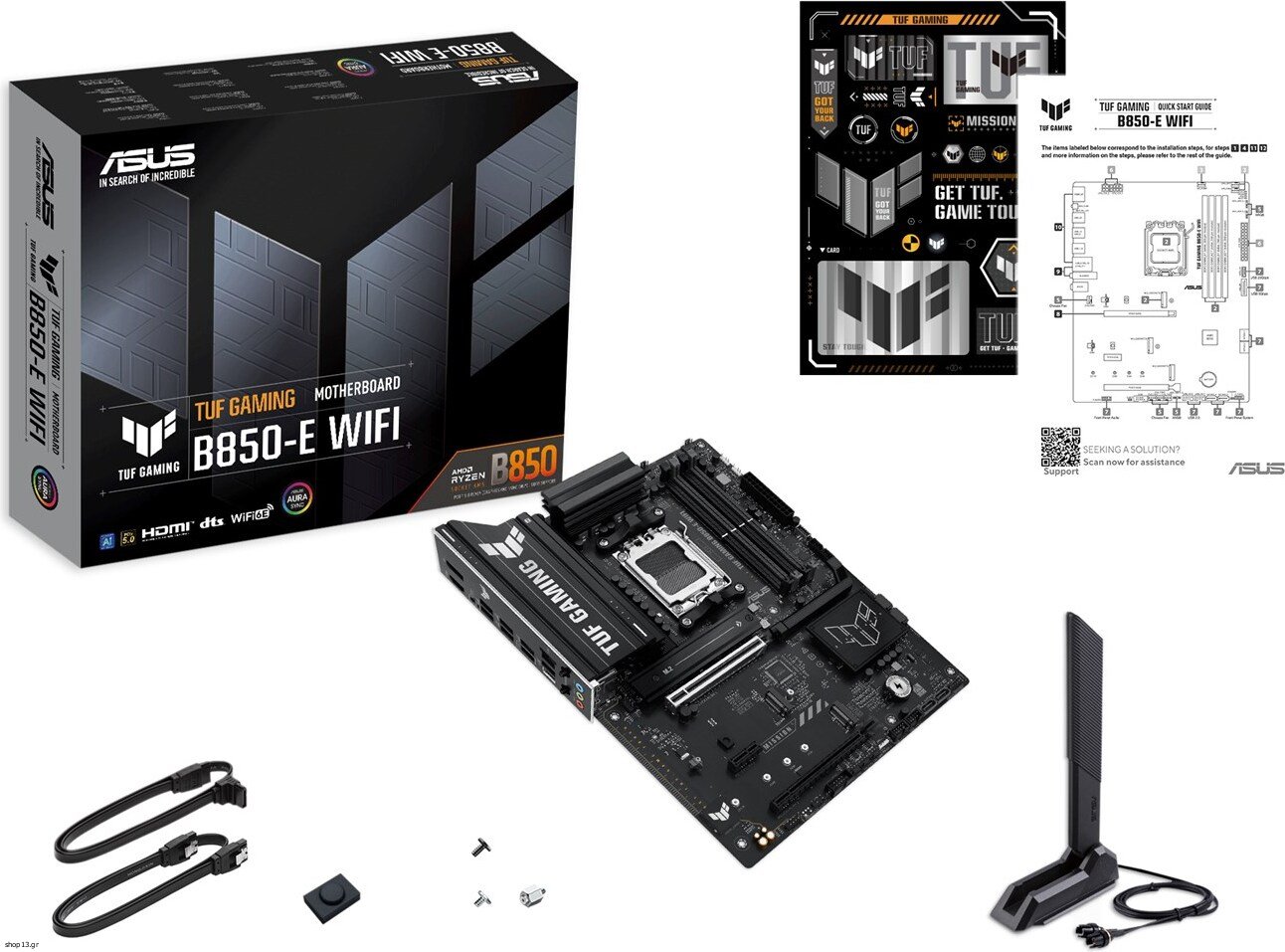

Packaging content

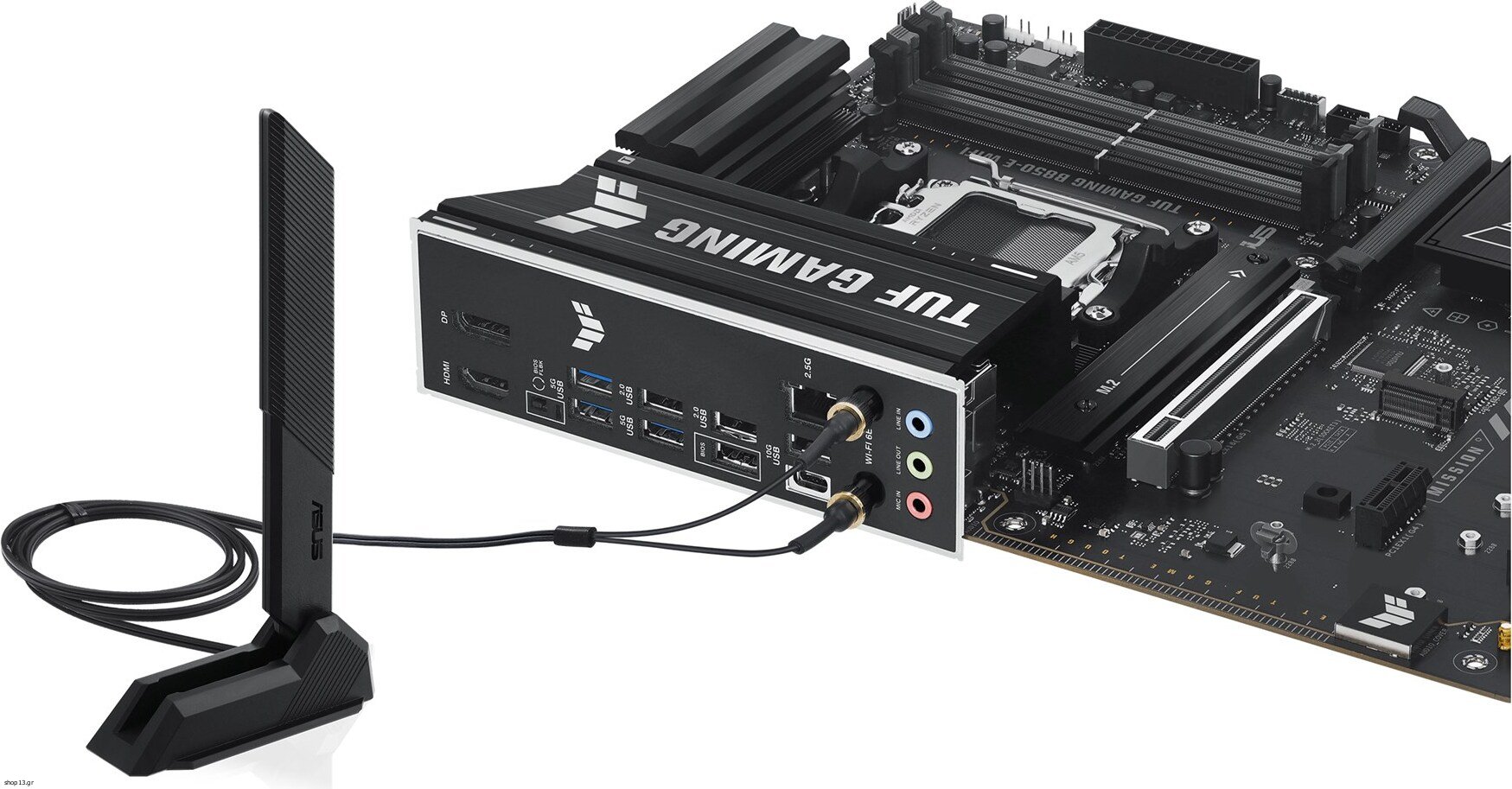

Antenna included: Yes
Storage controllers
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 7
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

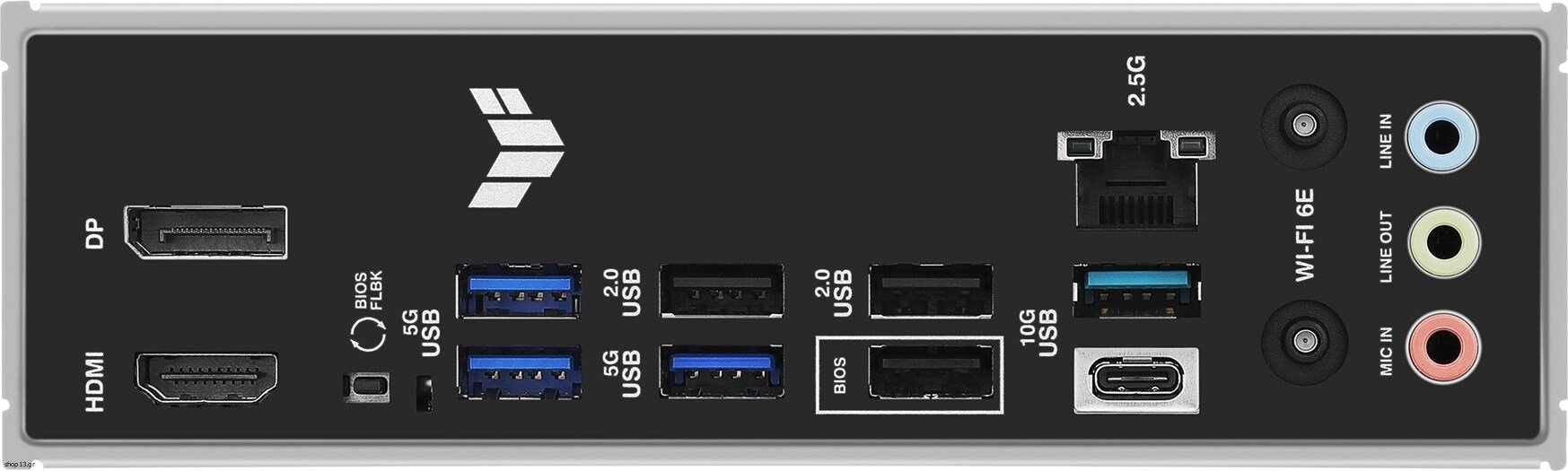

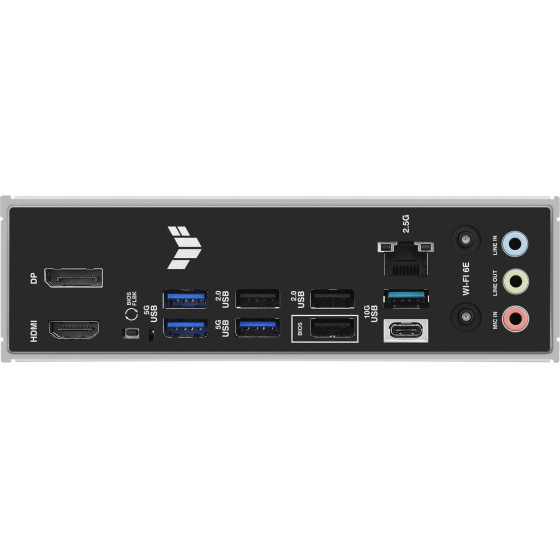

Rear panel I/O ports
USB connector type: USB Type-A, USB Type-C
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
Microphone in: Yes
Line-in: Yes
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 4.x) slots: 1
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
Other features
Weight: 1.21 kg
Warranty: warranty 36 months
