Asus Tuf Gaming B760M-Plus Wifi Ii Intel B760 Lga 1700 Micro Atx - (90MB1HE0-M0EAY0)

Processor
Compatible processor series: Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R)
Processor socket: LGA 1700
Processor manufacturer: Intel
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Power source type: ATX
Audio output channels: 7.1 channels
Product colour: Black
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10, Windows 11
Cooling type: Passive

Memory
Memory slots type: DIMM
Supported memory clock speed (max): 7800 MHz
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Unbuffered memory: Yes
Supported memory clock speeds: 4800, 5800, 5400, 6200, 7000, 5000, 6800, 6600 MHz, 7800, 6000, 6400, 5600, 5200
Maximum internal memory: 192 GB
Memory channels: Dual-channel

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 5.3
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)

Internal I/O
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 3

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.65 kg
Package height: 67.5 mm
Package width: 275 mm
Package depth: 275 mm

Packaging content
User guide: Yes
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 10, 5, 1, 0
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

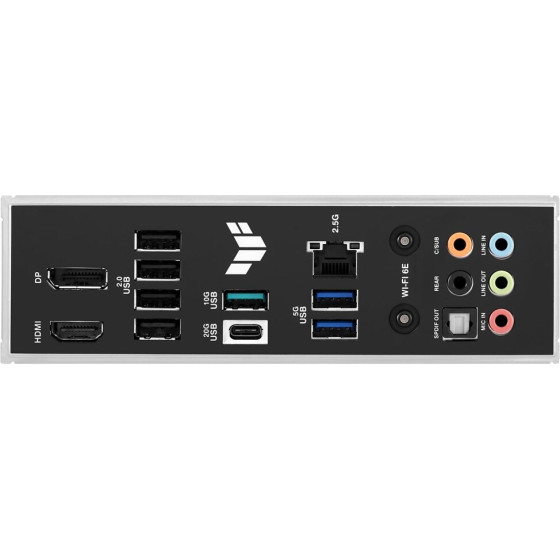

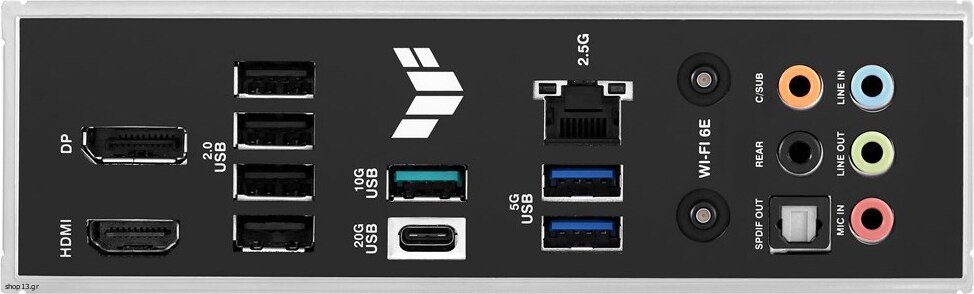

Rear panel I/O ports
Headphone outputs: 1
Line-in: Yes
WiFi-AP antenna jack: 2
Microphone in: Yes
DisplayPort version: 1.4
DisplayPorts quantity: 1
S/PDIF out port: Yes
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 3

Other features
Weight: 982 g

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply.


Warranty: warranty 36 months
