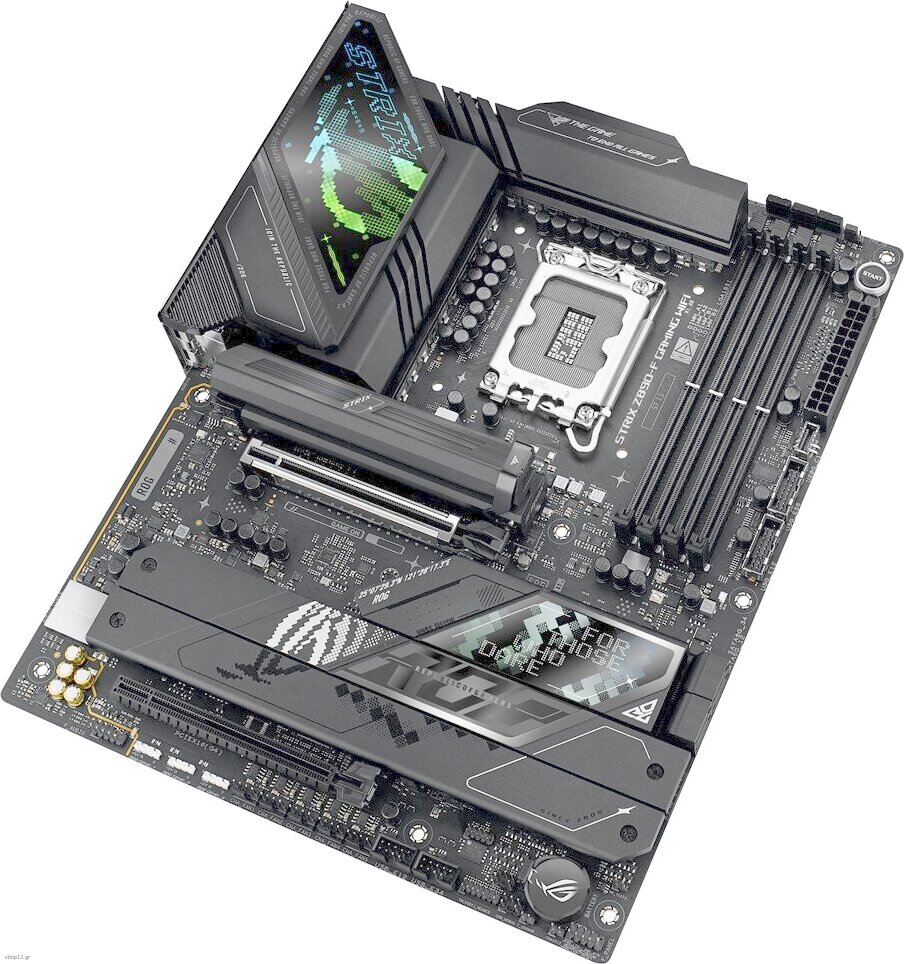

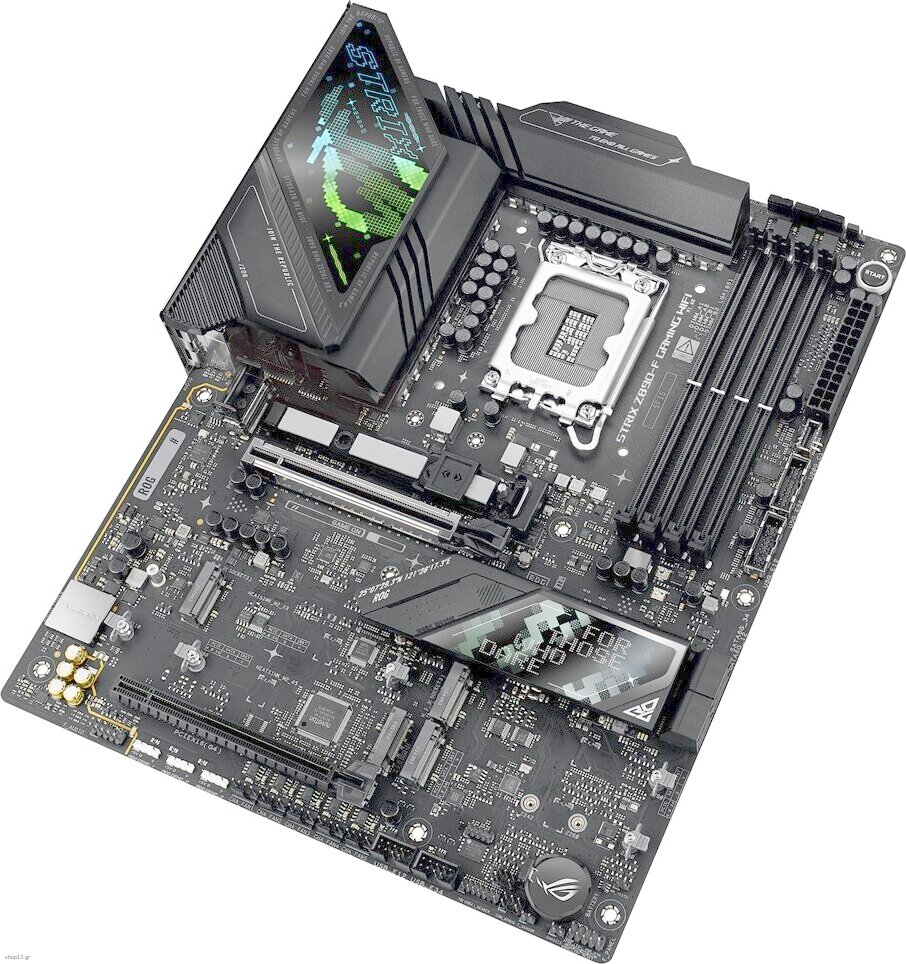

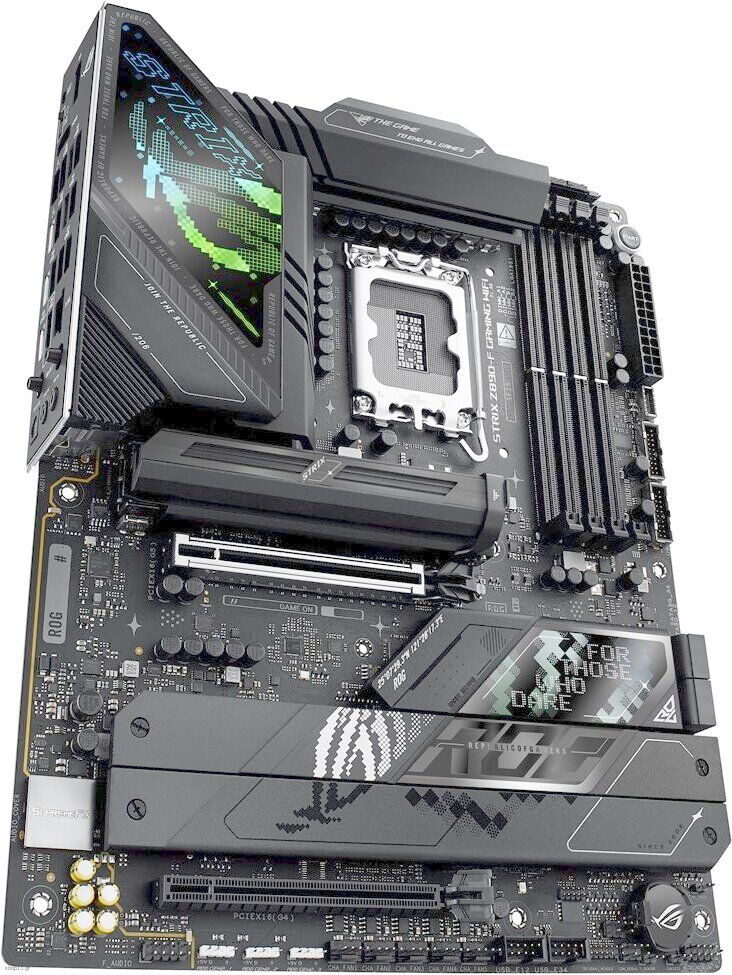

Asus Rog Strix Z890-F Gaming Wifi Intel Z890 Lga 1851 (Socket V1) Atx Motherboard - (90MB1I40-M0EAY0)

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z890
Windows operating systems supported: Windows 11
Motherboard form factor: ATX
Product colour: Black
Motherboard chipset family: Intel
Audio chip: Realtek ALC4080

Memory
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 8600 MHz
Number of memory slots: 4
Memory channels: Dual-channel
Maximum internal memory: 192 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth version: 5.4
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Wi-Fi: Yes

Internal I/O
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
Number of SATA III connectors: 4
Thunderbolt headers: 1
Number of chassis fan connectors: 5
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 1.98 kg
Package height: 68 mm
Package depth: 273 mm
Package width: 353 mm

Storage controllers
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 9
RAID levels: 5, 1, 0
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

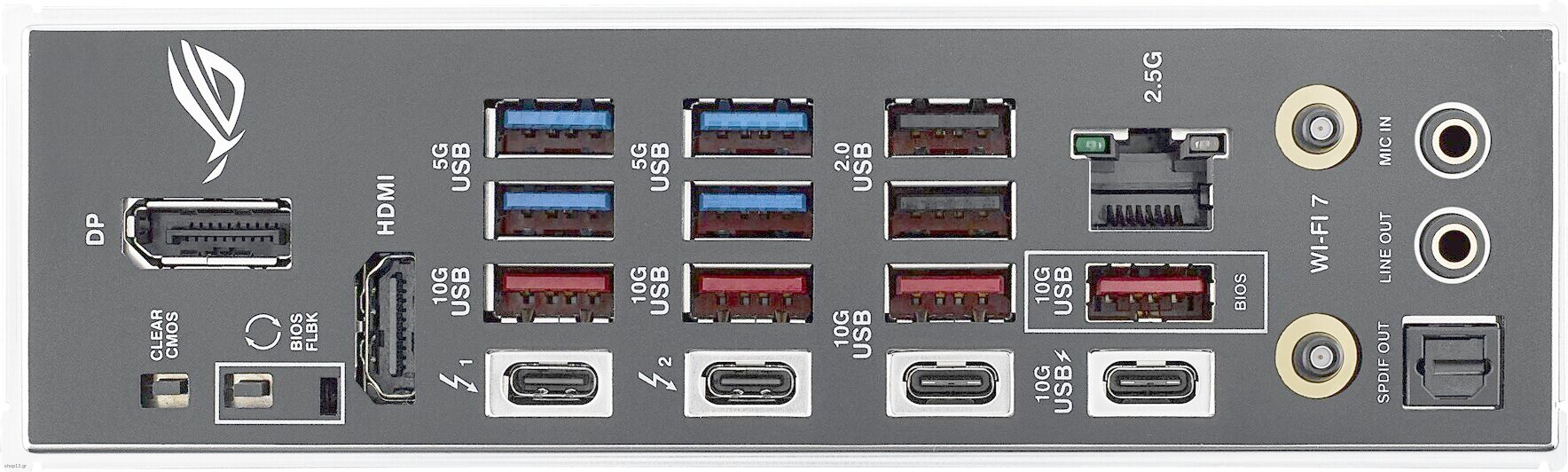

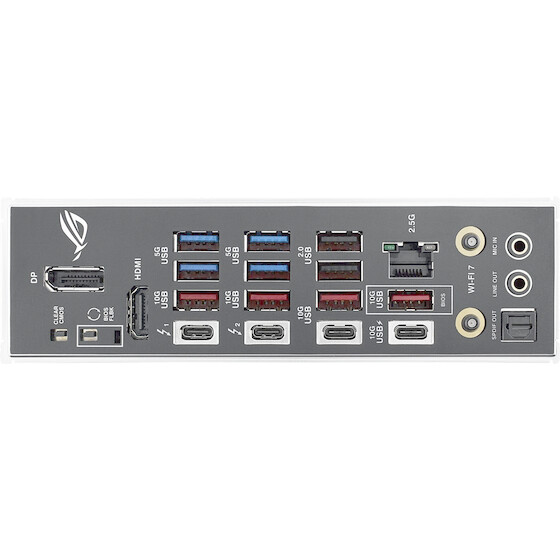

Rear panel I/O ports
Thunderbolt ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Microphone in: Yes
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 5


Warranty: warranty 36 months
