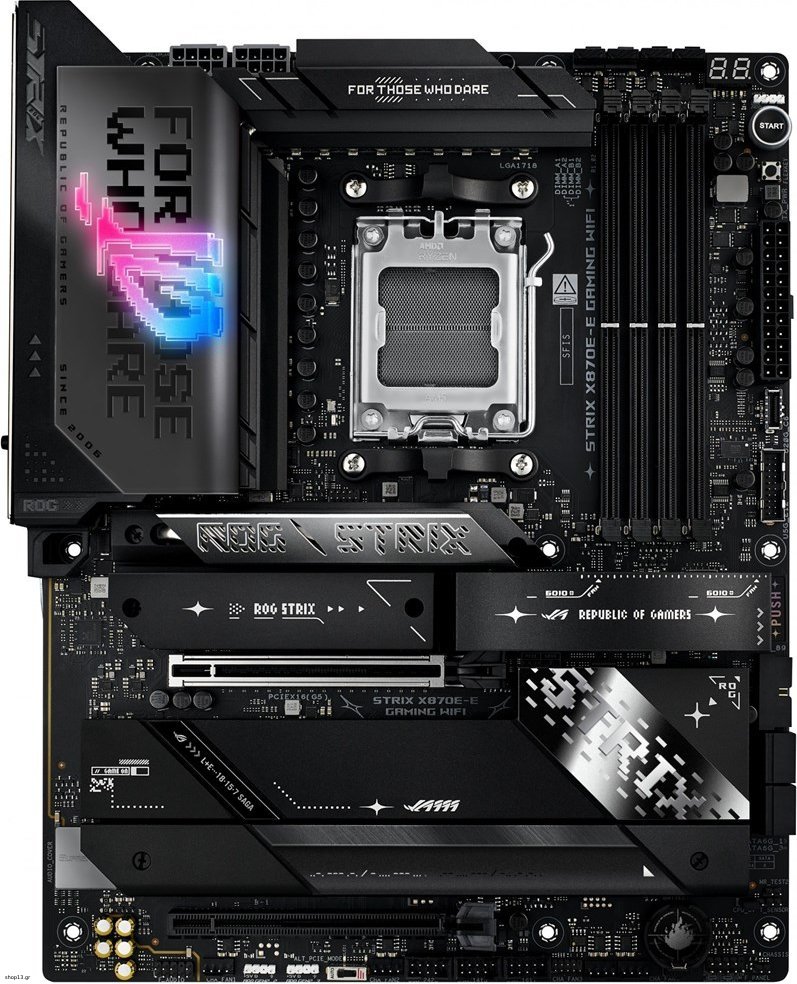

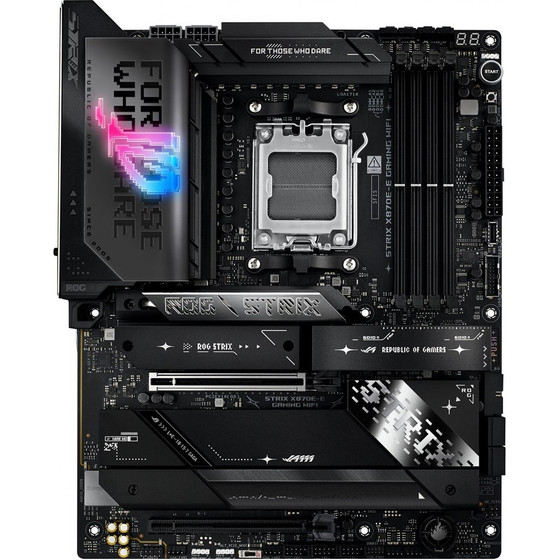

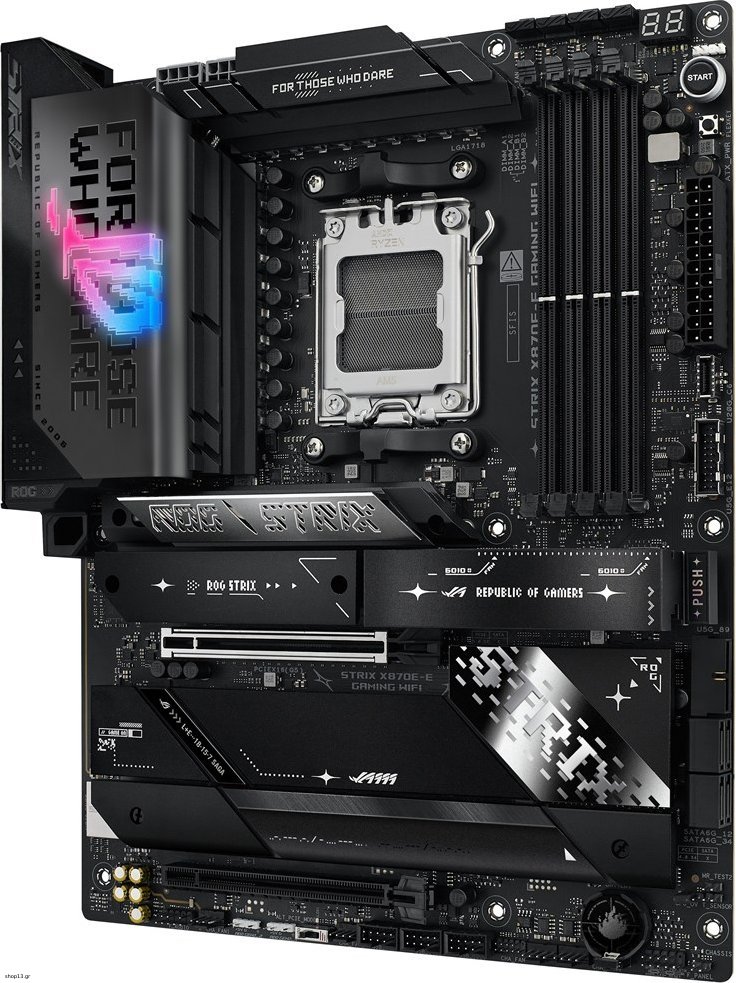

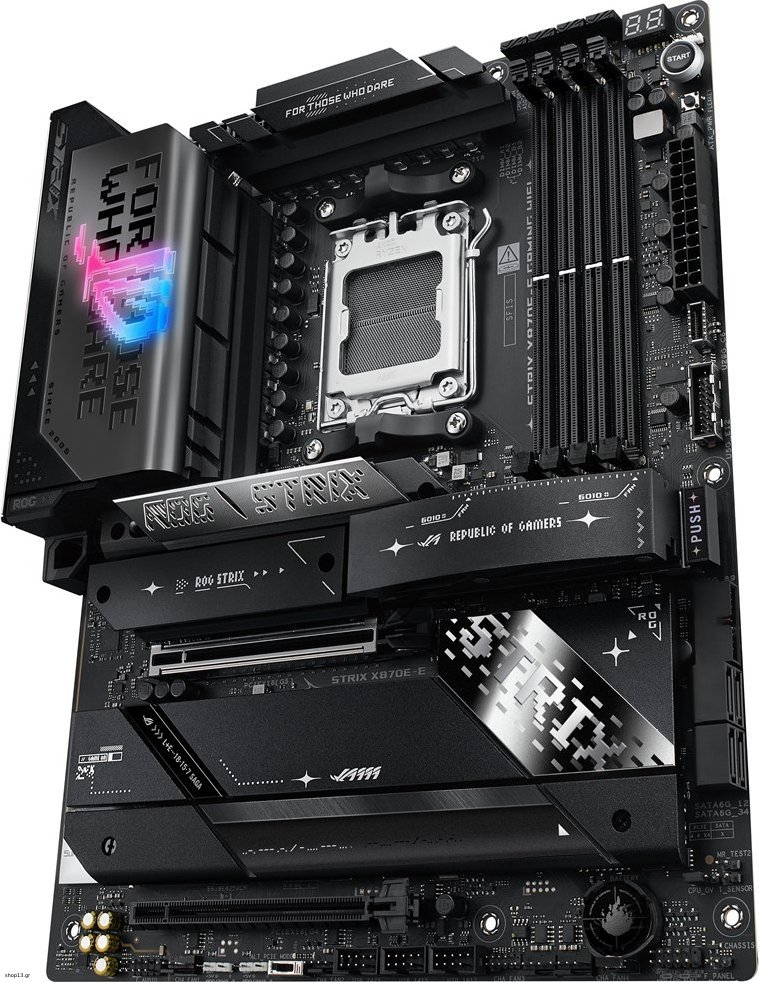

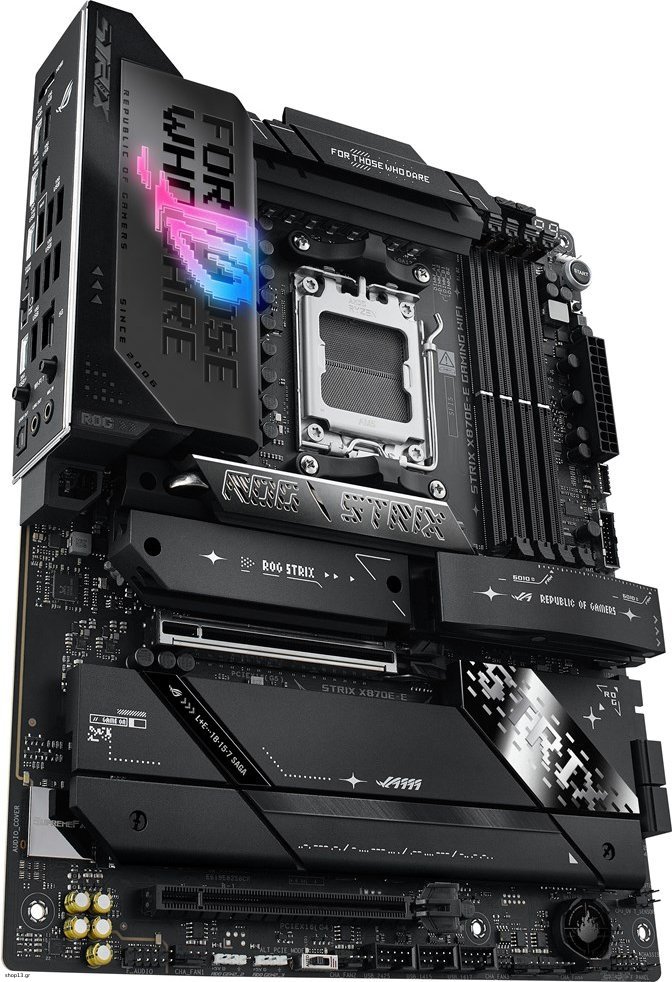

Asus Rog Strix X870E-E Gaming Wifi Amd X870E Socket AM5 Atx - (90MB1IB0-M0EAY0)

Processor
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Motherboard chipset: AMD X870E
Audio output channels: 7.1 channels
Audio chip: Realtek ALC4080
Product colour: Black
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX

Memory
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Maximum internal memory: 192 GB

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 50 mm

Network
Bluetooth version: 5.4
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth: Yes

Internal I/O
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 3
CPU fan connector: Yes
Number of chassis fan connectors: 5
ATX Power connector (24-pin): Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package height: 87 mm
Package depth: 281 mm
Package weight: 3.02 kg
Package width: 365 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 9
RAID levels: 5, 0, 1, 10
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes

Rear panel I/O ports
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB4 Gen 2x2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 9
Headphone outputs: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 5

Other features
Weight: 2.06 kg

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.


Warranty: warranty 36 months
