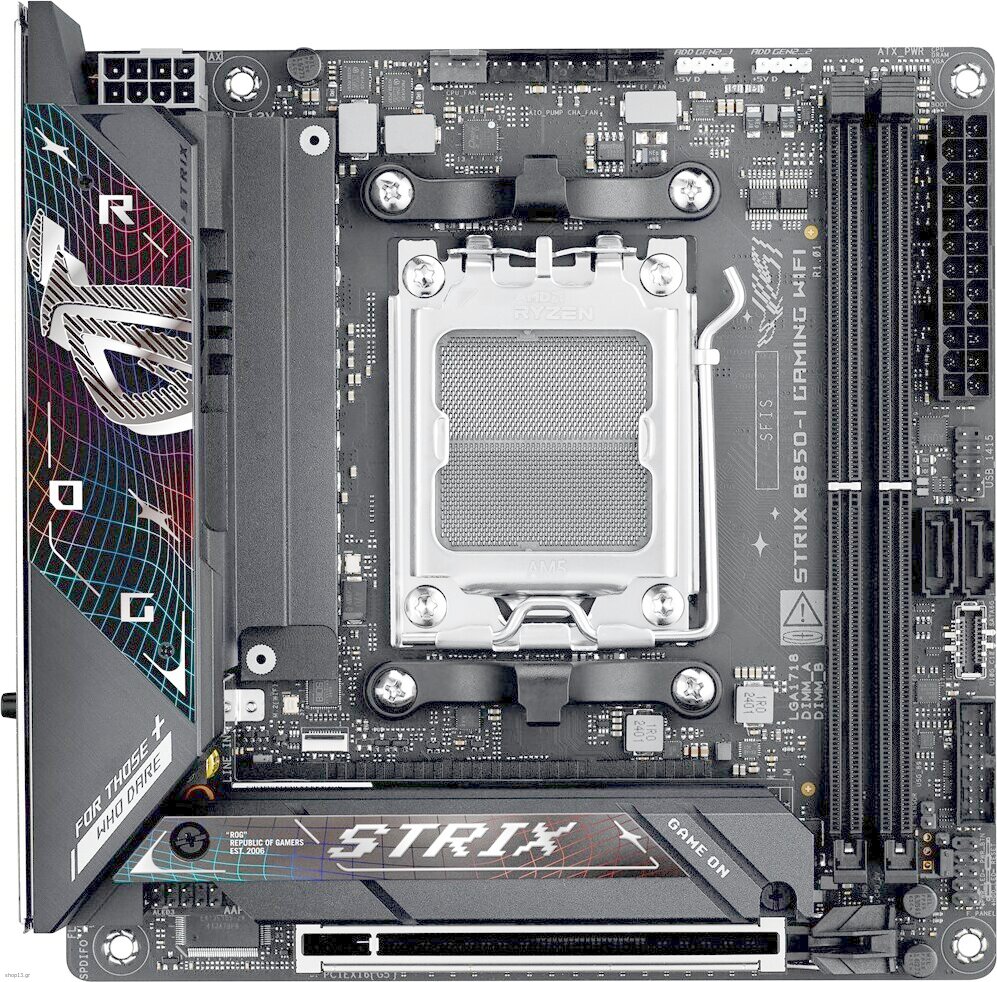

Asus Rog Strix B850-I Gaming Wifi Amd B850 Socket AM5 Mini Itx - (90MB1K30-M0EAY0)

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
On-board graphics card: No

Features
Audio chip: Realtek ALC4080
Product colour: Black
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11
Power source type: ATX
Motherboard form factor: mini ITX
Motherboard chipset: AMD B850

Memory
ECC ?ompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Maximum internal memory: 96 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 8400 MHz
Supported memory types: DDR5-SDRAM
Number of memory slots: 2

Weight & dimensions
Depth: 170 mm
Width: 170 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.4

Internal I/O
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of temperature sensor headers: 1
Number of RGB LED pin headers: 2
Number of water pump connectors: 1
CPU fan connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
Front panel connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 2
USB 2.0 connectors: 1
Number of chassis fan connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package depth: 185 mm
Package weight: 1.06 kg
Package height: 94 mm
Package width: 226 mm

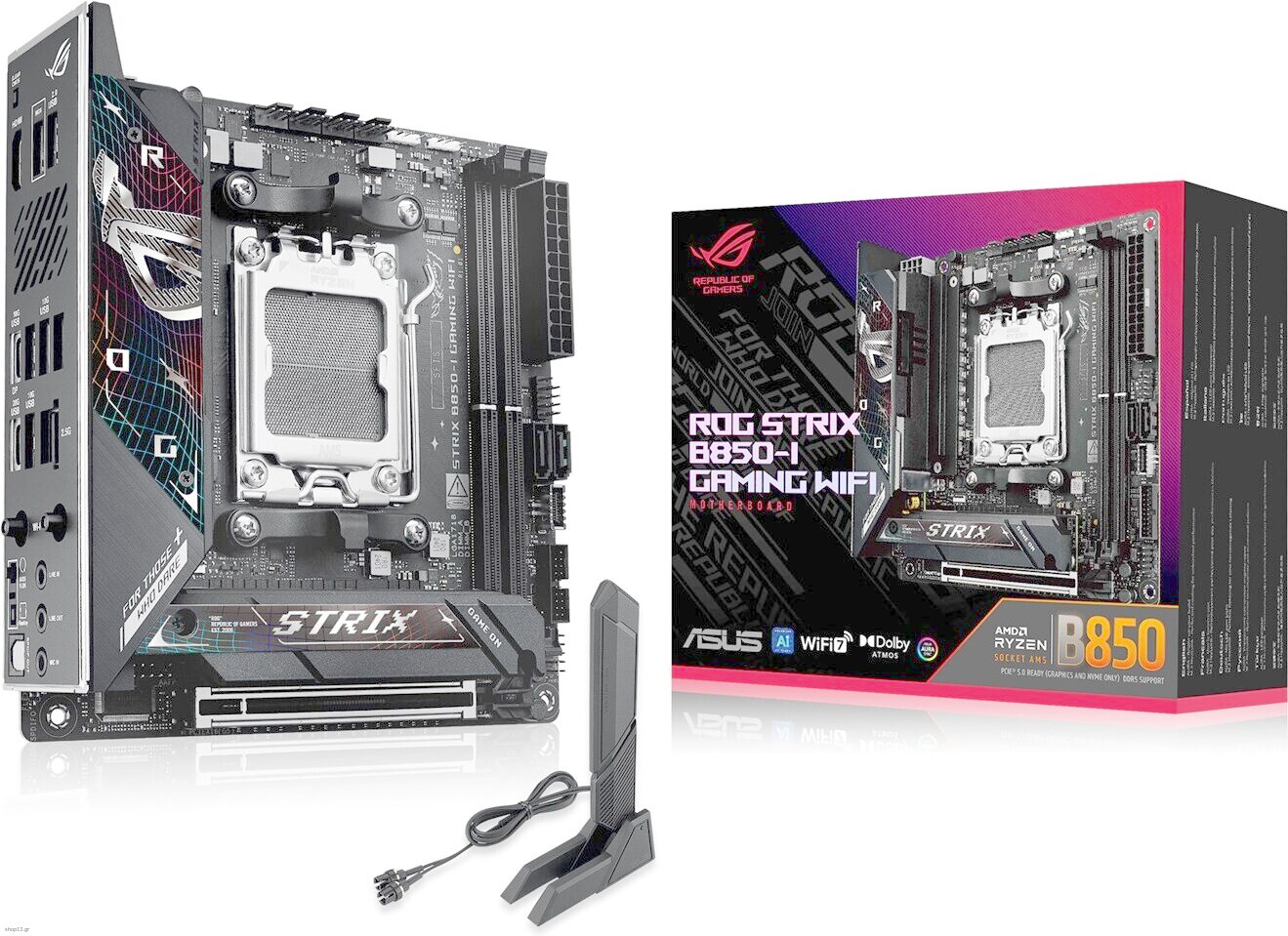

Packaging content
Cables included: SATA
Antenna included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 4
Number of HDDs supported: 2

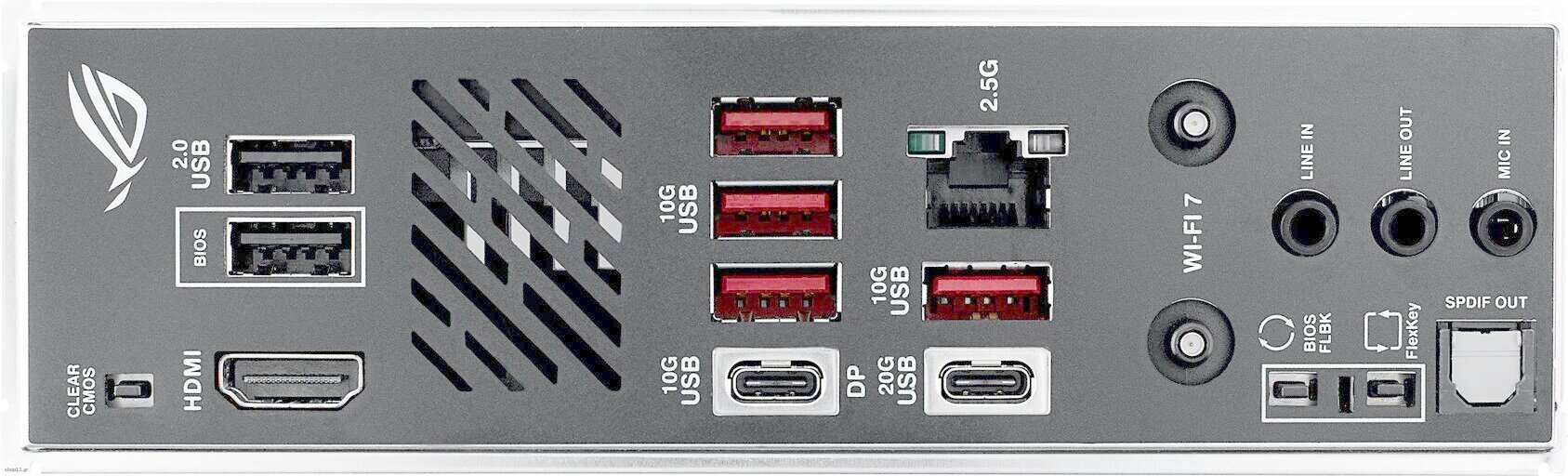

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
S/PDIF out port: Yes
HDMI ports quantity: 1
Digital audio optical out: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
Line-in: Yes
WiFi-AP antenna jack: 2
Headphone outputs: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
2nd M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1

Other features
Quick installation guide: Yes
Weight: 1.06 kg

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 36 months
