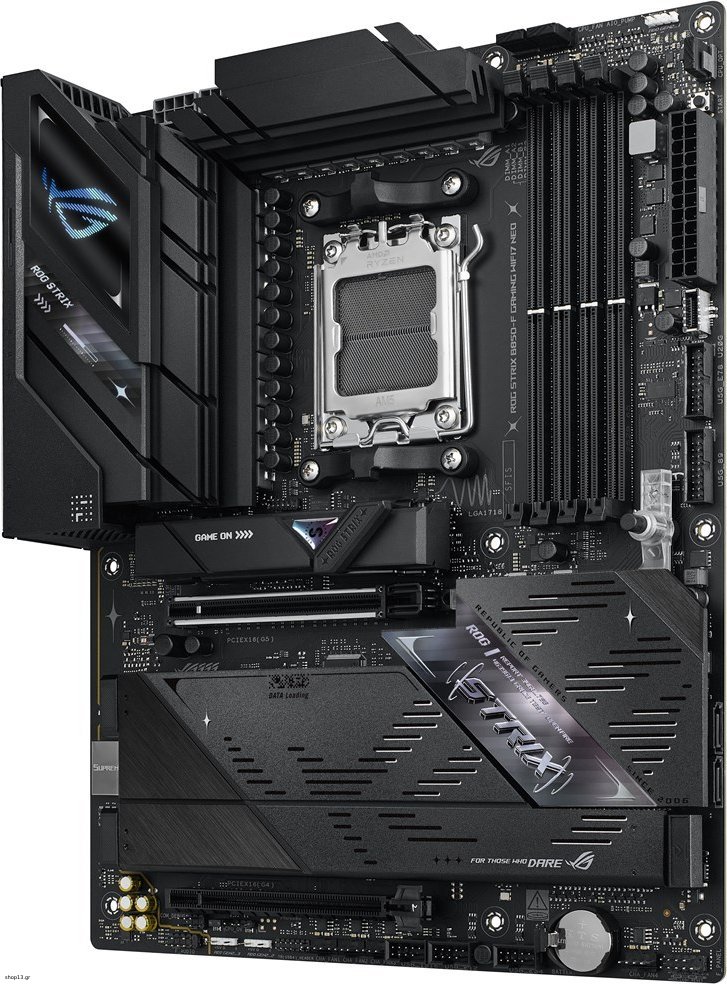

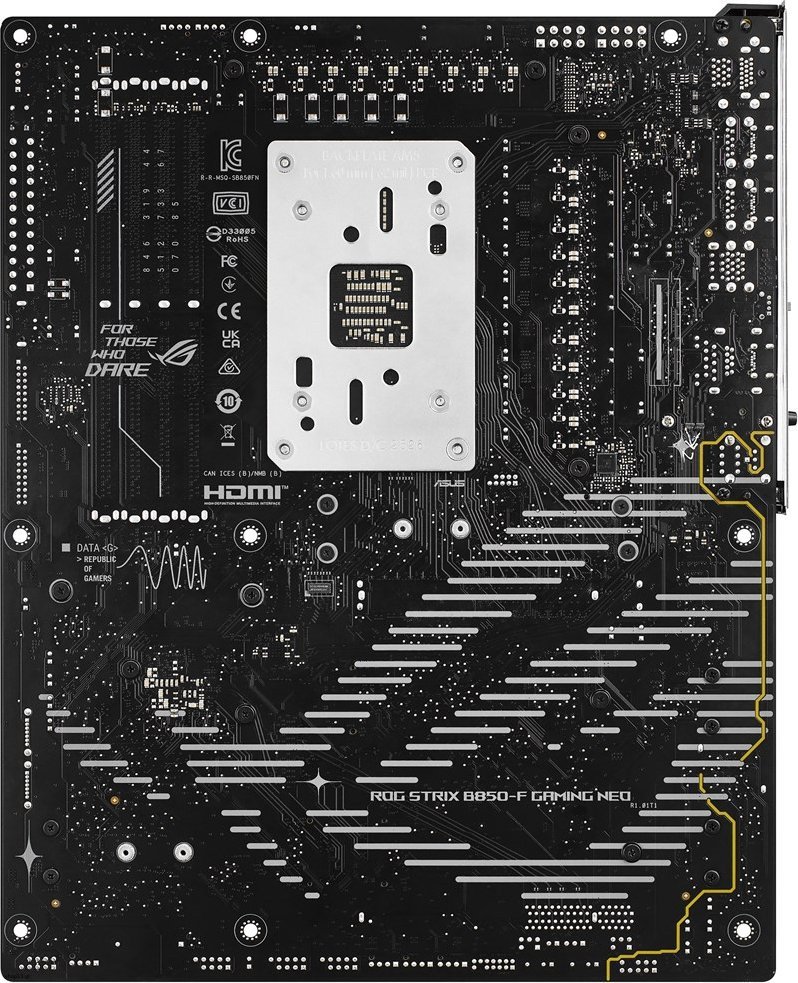

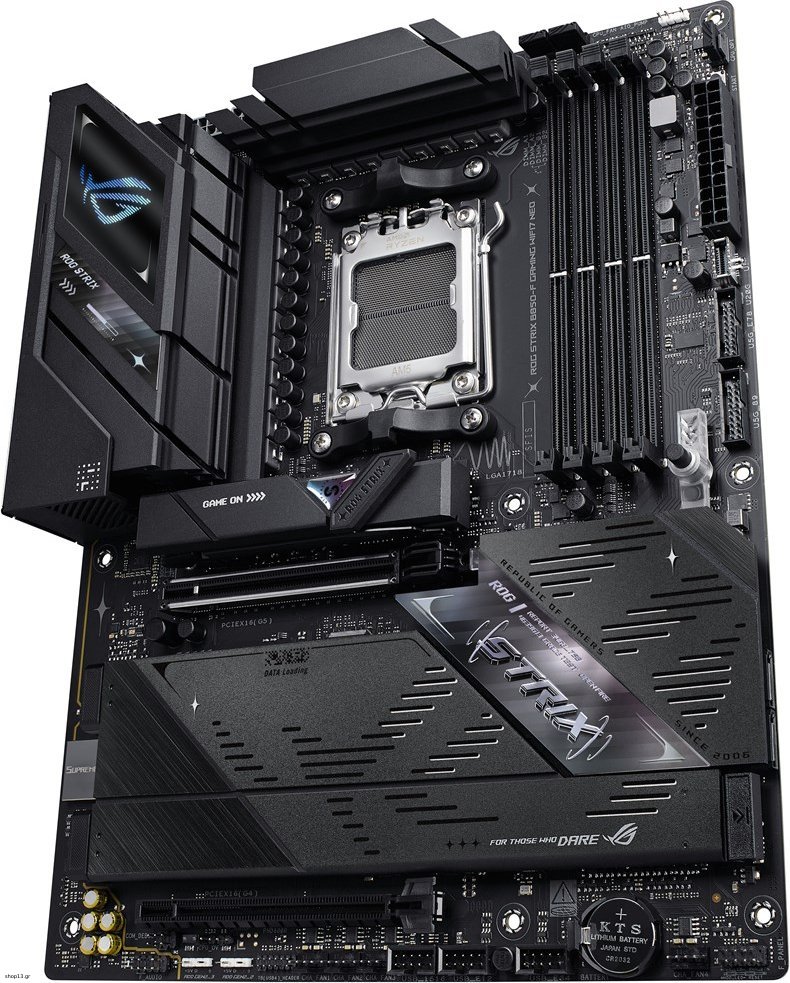

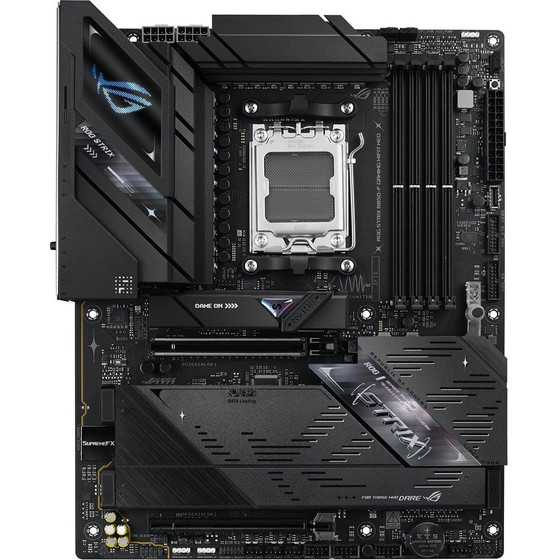

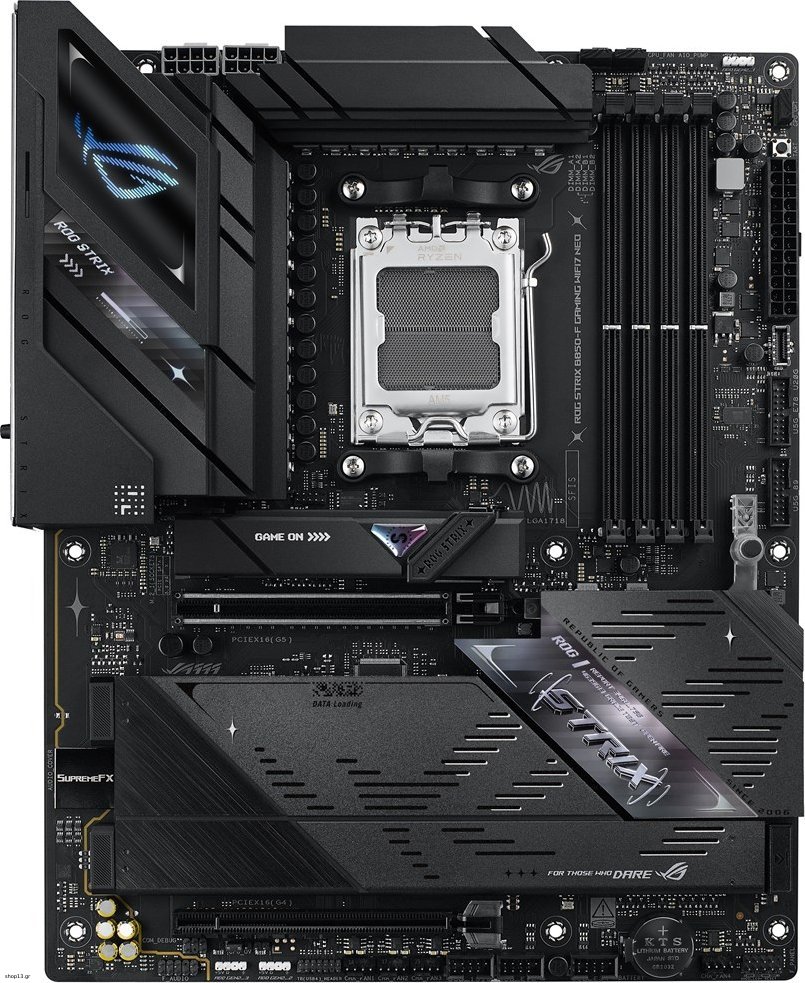

Asus Rog Strix B850-F Gaming WIFI7 Neo Amd B850 Socket AM5 Atx - (90MB1NX0-M0EAY0)

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Product colour: Multicolour
Motherboard chipset family: AMD
Audio chip: Realtek ALC4080

Memory
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz
ECC ?ompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes

Internal I/O
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
Number of CPU fan connectors: 1
12V power connector: Yes
Thunderbolt headers: 1
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 2

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package width: 353 mm
Package height: 68 mm
Package depth: 273 mm
Package weight: 2.18 kg

Storage controllers
Number of storage drives supported: 6
Number of HDDs supported: 2
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 10, 0, 5, 1

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
Number of M.2 (M) slots: 4

Other features
Weight: 1.63 kg


Warranty: warranty 36 months
