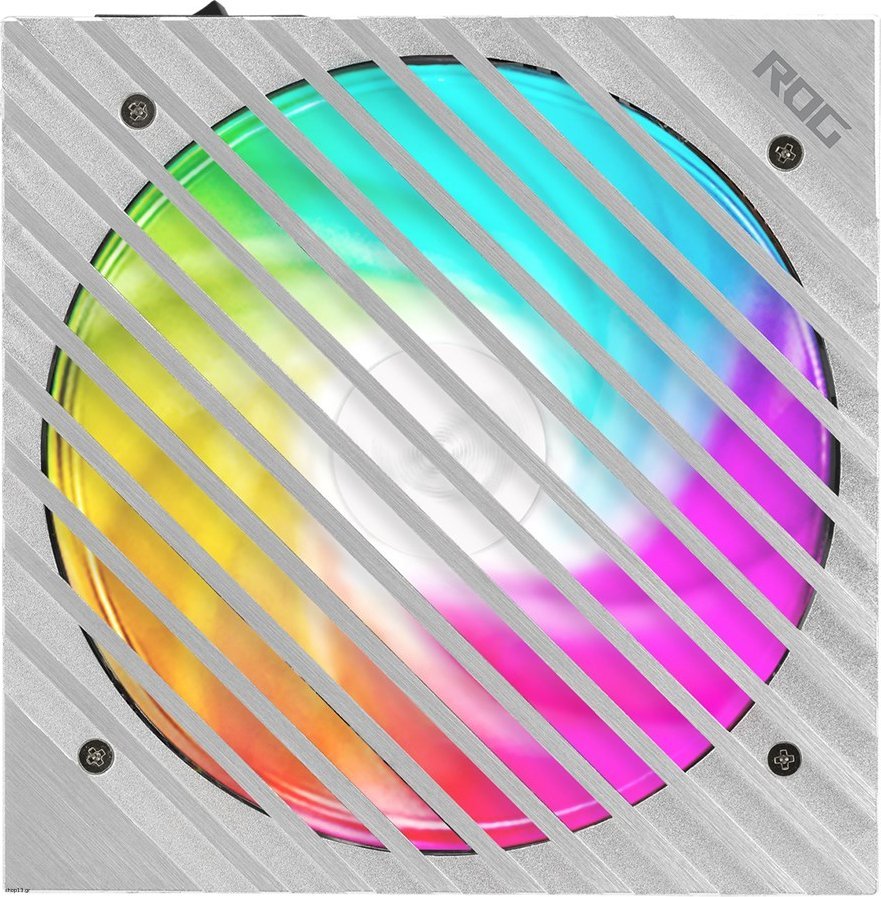

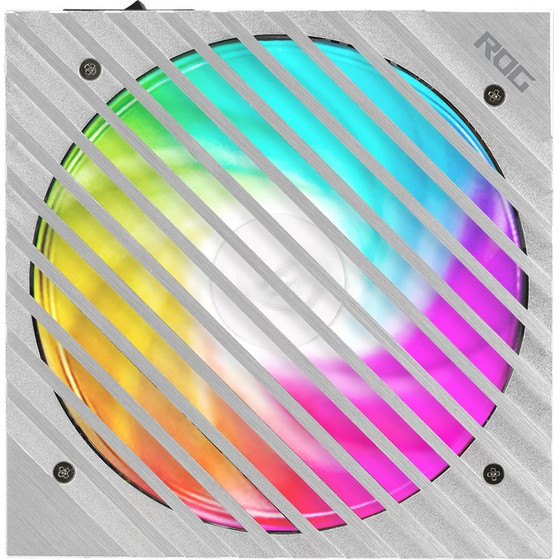

Asus Rog Loki SFX-L 850W Platinum White Power Supply Unit 24-Pin Atx - (90YE00N2-B0NA00)

Technical details
Sustainability compliance: Yes

Design
Product colour: White
On/off switch: Yes
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Cooling type: Active
Illumination: Yes

Power
Combined power (-12V): 9.6 W
Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Overcharge
Combined power (+5V): 110 W
Max output current (+3.3V): 20 A
Max output current (-12V): 0.8 A
Total power: 850 W
Max output current (+5Vsb): 2.5 A
Combined power (+3.3V): 110 W
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 12.5 W
Max output current (+12V): 70.8 A
Combined power (+12V): 850 W
Max output current (+5V): 20 A

Weight & dimensions
Weight: 1.81 kg
Width: 125 mm
Height: 63.5 mm
Depth: 125 mm

Performance
Power supply unit (PSU) form factor: SFX-L
80 PLUS certification: 80 PLUS Platinum
Bearing technology: Ball bearing
Supported motherboard form factors: ATX
Purpose: PC

Packaging data
Package weight: 2.5 kg
Package depth: 190 mm
Package width: 285 mm
Package type: Box
Package height: 100 mm

Certificates
Compliance certificates: RoHS

Ports & interfaces
PCI Express power connectors (16-pin): 1
PCI Express power connectors (8-pin): 3
Cabling type: Fully-Modular
Motherboard power connector: 24-pin ATX
CPU power connector (4+4 pin): Yes
CPU power cable length: 55 cm
PCI Express power cable length: 45 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power cable length: 45 cm
Peripheral (Molex) power cable length: 600 mm
SATA power cable length: 600 mm


Warranty: warranty 12 months
