Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Graphics
Parallel processing technology support: Not supported
Features
Windows operating systems supported: Windows 11
Audio output channels: 7.1 channels
Audio chip: Realtek S1220A
Motherboard chipset family: AMD
Motherboard chipset: AMD X870E
Motherboard form factor: ATX
Memory
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Unbuffered memory: Yes
Maximum internal memory: 192 GB
ECC ?ompatibility: ECC & Non-ECC
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Network
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Internal I/O
CPU fan connector: Yes
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 5
Number of COM connectors: 1
Front panel audio connector: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
USB 2.0 connectors: 3
USB 3.2 Gen 2x2 connectors: 1
BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI
Packaging content
Cables included: DisplayPort, SATA
Storage controllers
Number of HDDs supported: 4
RAID levels: 10, 0, 5, 1
Number of storage drives supported: 8
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

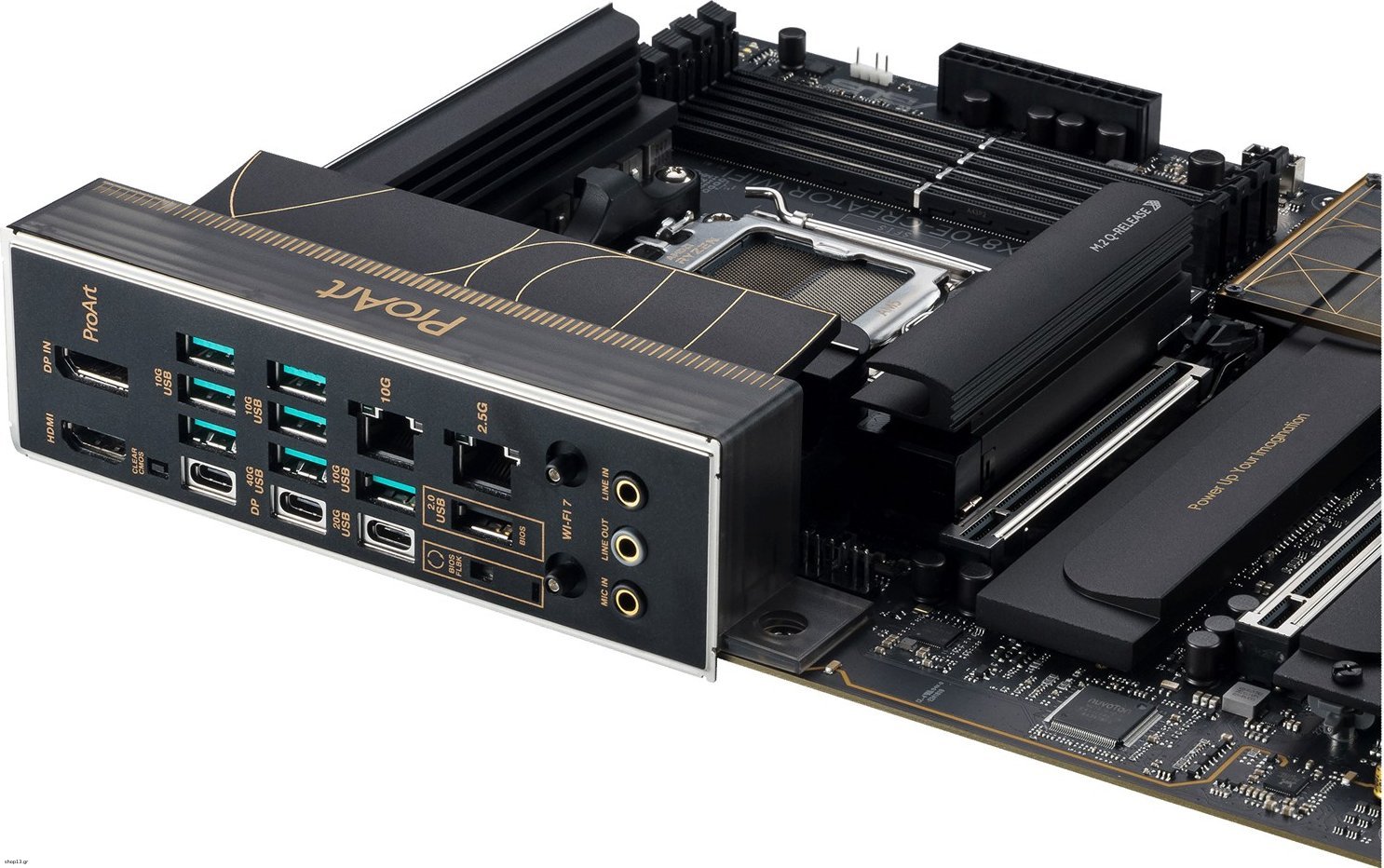

Rear panel I/O ports
HDMI ports quantity: 1
USB 2.0 ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
Ethernet LAN (RJ-45) ports: 2
USB4 Gen 2x2 ports quantity: 2
WiFi-AP antenna jack: 1
Microphone in: Yes
DisplayPorts quantity: 1
Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
Warranty: warranty 36 months
