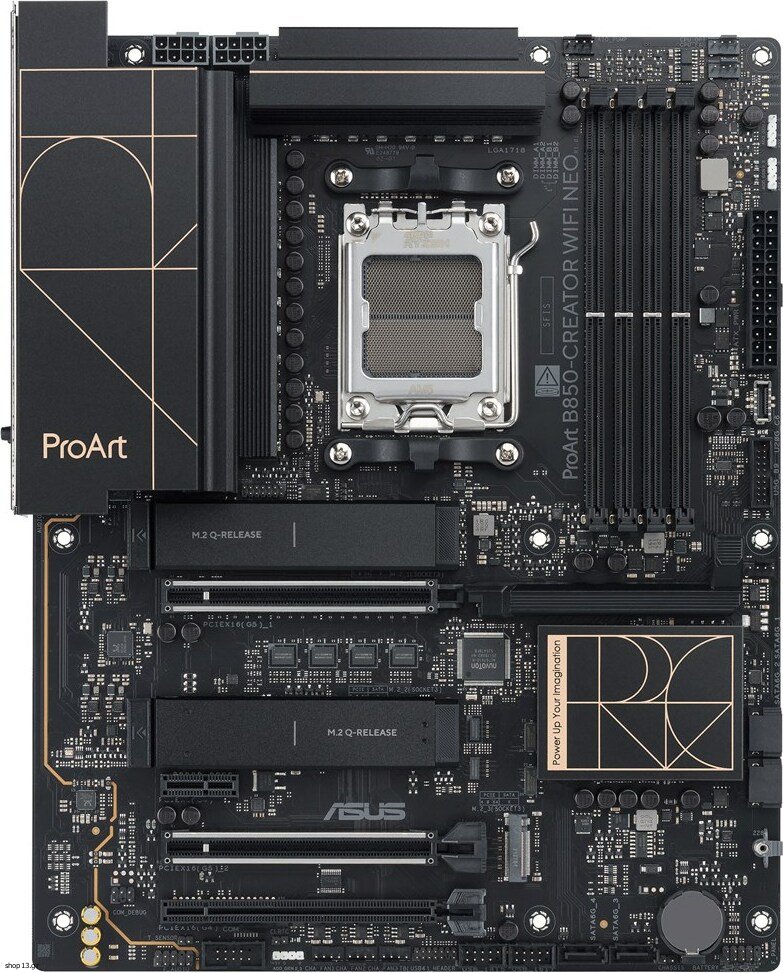

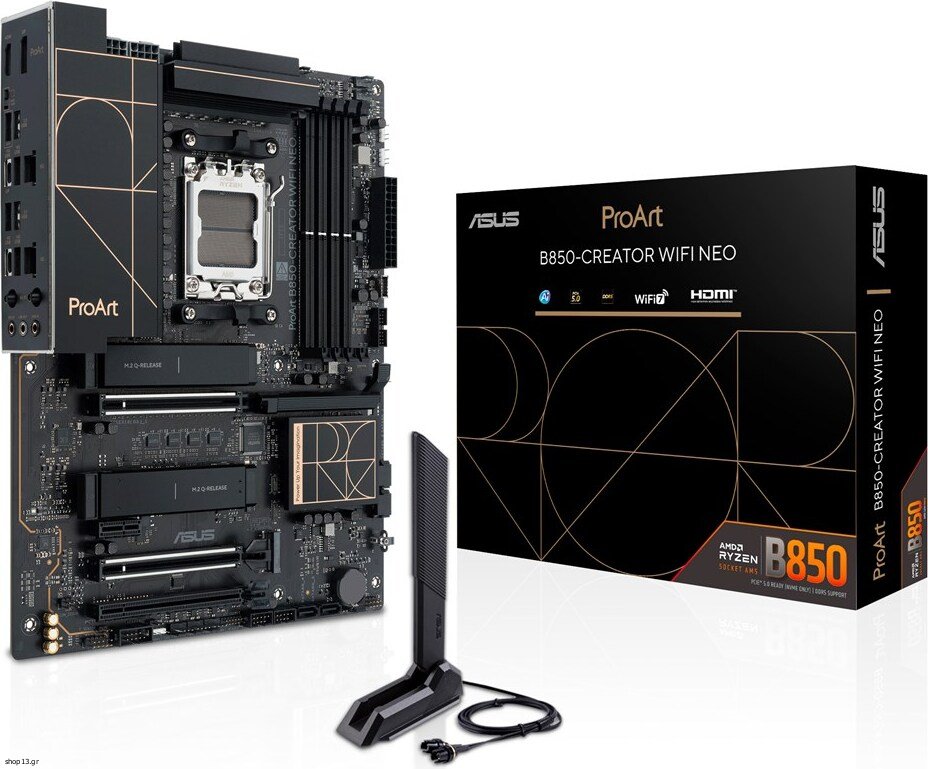

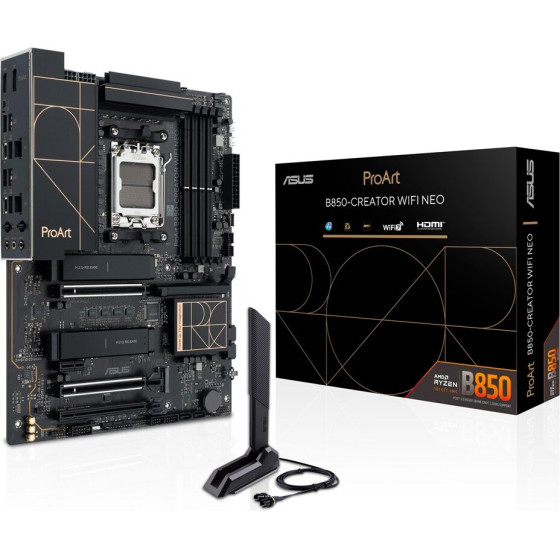

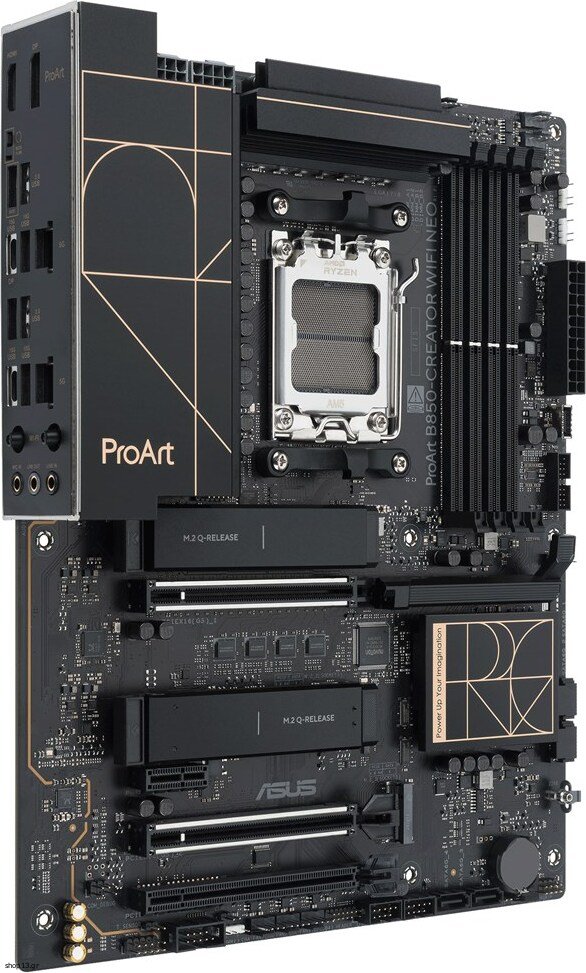

Asus Proart B850-Creator Wifi Neo Amd B850 Socket AM5 Atx - (90MB1P60-M0EAY0)

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Motherboard chipset: AMD B850
Product colour: Black
Motherboard form factor: ATX
Audio chip: Realtek ALC1220P
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Windows 11

Memory
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 9000 MHz
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4

Weight & dimensions
Height: 48 mm
Depth: 244 mm
Width: 305 mm

Network
WLAN controller model: Realtek RTL8922AE
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet

Internal I/O
Number of temperature sensor headers: 1
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
Number of CPU fan connectors: 2
RGB LED pin header: Yes
Number of EPS power connectors (8-pin): 2
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Thunderbolt headers: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
Number of COM connectors: 1
Front panel connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 4

BIOS
BIOS flashback button: Yes
BIOS type: UEFI AMI

Packaging data
Package weight: 2.14 kg
Package depth: 273 mm
Package width: 353 mm
Package height: 68 mm

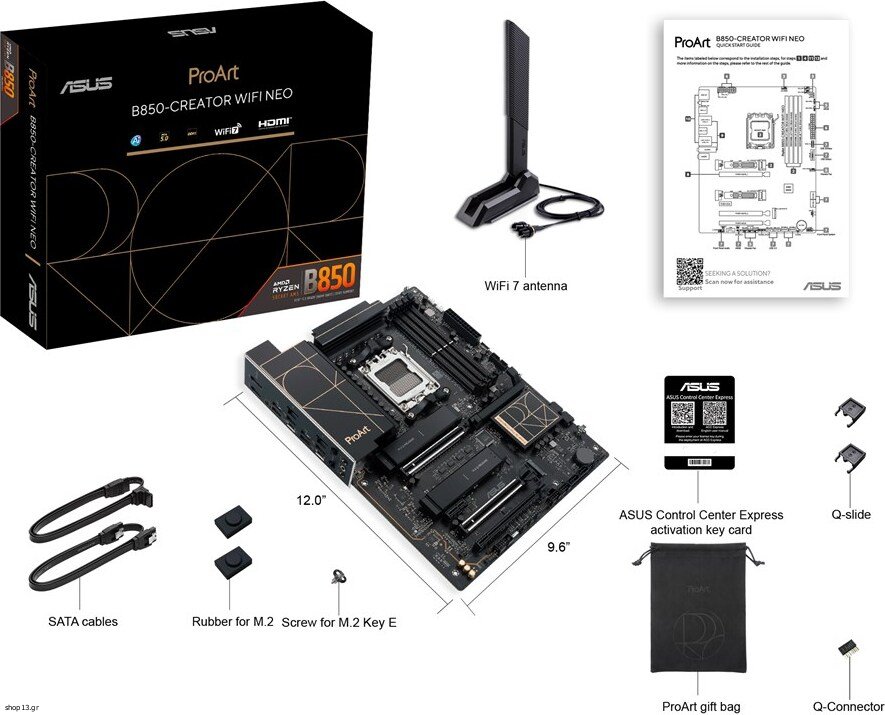

Packaging content
Antenna included: Yes
Cables included: SATA
Screws included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 5, 1, 10, 0
Number of HDDs supported: 4
Number of storage drives supported: 7

Rear panel I/O ports
WiFi-AP antenna jack: 2
Line-in: Yes
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
USB 2.0 ports quantity: 4

Expansion slots
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 4.x) slots: 2
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
PCI Express x4 (Gen 1.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 3

Other features
Weight: 1.33 kg
Quick installation guide: Yes


Warranty: warranty 36 months
