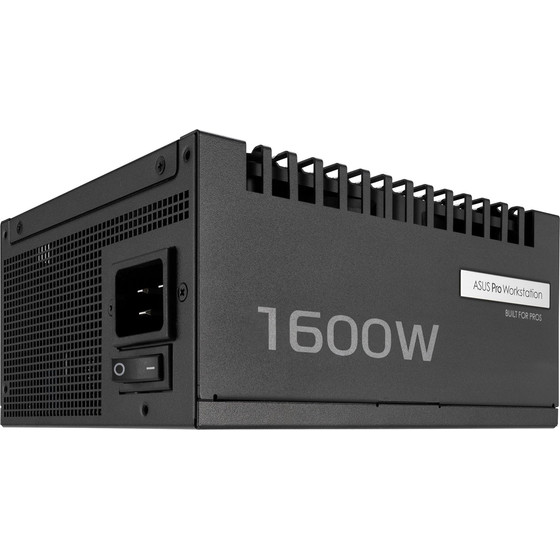

Asus Pro Ws 1600W Platinum Power Supply Unit 20+4 Pin Atx Atx Black - (90YE00Z2-B0NA00)

Design
On/off switch: Yes
Product colour: Black
Cooling type: Active

Power
AC input voltage: 200 - 240 V
Total power: 1600 W
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Overheating, Over power
Efficiency: 92%
Combined power (+5Vsb): 15 W
Max output current (+5V): 25 A
Max output current (+3.3V): 25 A
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 133.3 A
Combined power (-12V): 9.6 W
Combined power (+5V): 130 W
Combined power (+12V): 1600 W
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.8 A

Weight & dimensions
Height: 86 mm
Weight: 2 kg
Width: 150 mm
Depth: 175 mm

Performance
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Bearing technology: Ball bearing
ATX version: 3.1

Packaging data
Package weight: 4.4 kg
Package depth: 208 mm
Package type: Box
Package height: 144 mm
Package width: 346 mm

Certificates
Compliance certificates: RoHS

Ports & interfaces
Cabling type: Fully-Modular
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
CPU power cable length: 100 cm
ATX power connector (20+4 pin): Yes
CPU power connector (4+4 pin): Yes
SATA power cable length: 400 mm, 120
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 9
Peripheral (Molex) power cable length: 400 mm, 150
PCI Express power cable length: 75 cm
PCI Express power connectors (16-pin): 2

Logistics data
Warranty period: 10 year(s)


Warranty: warranty 120 months
