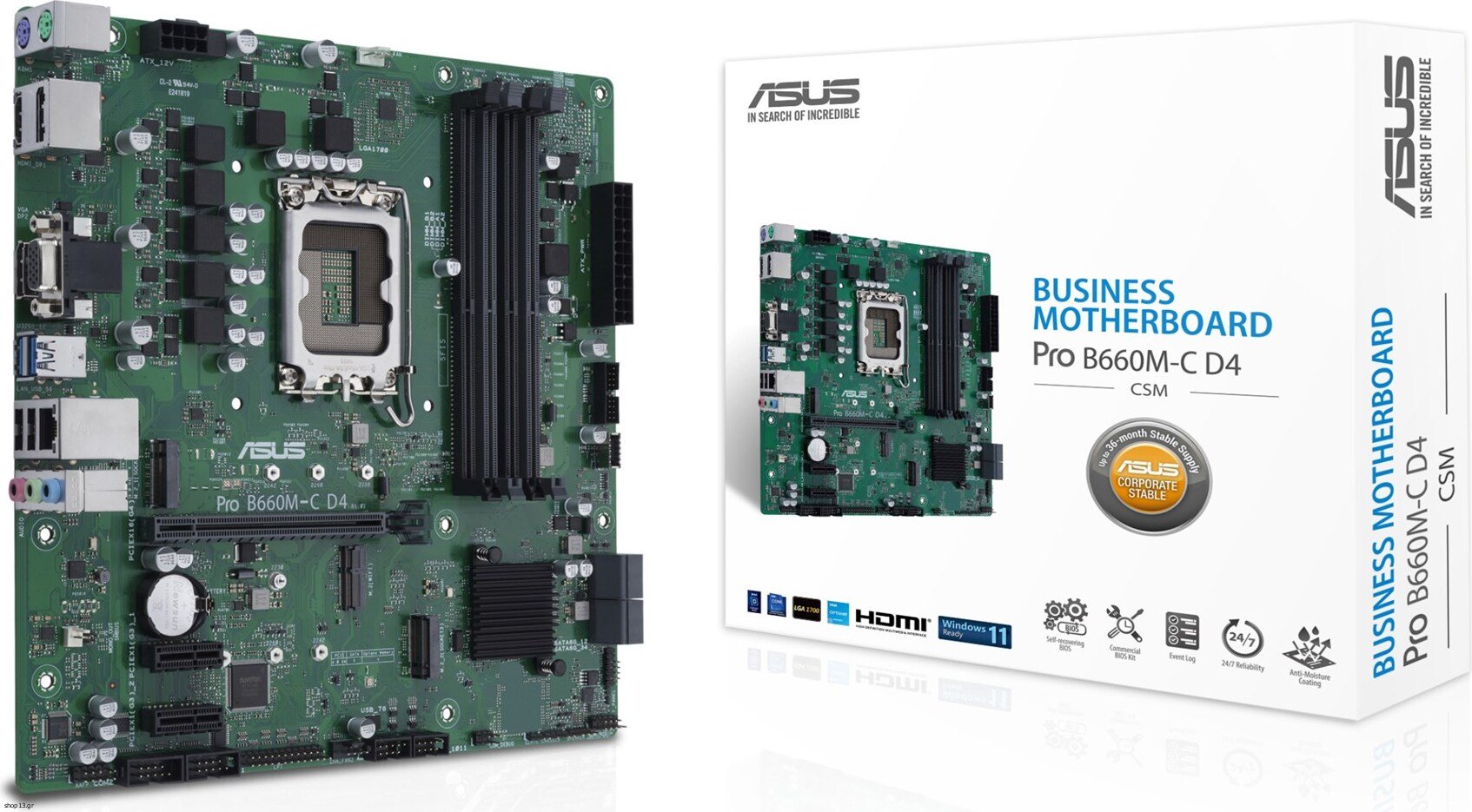

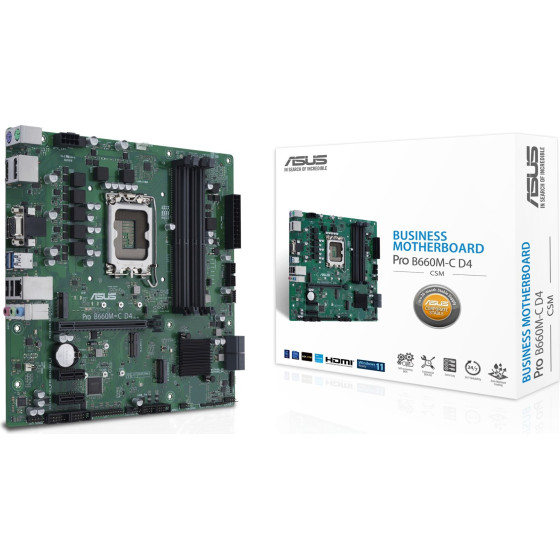

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX - (90MB19B0-M1EAYC)

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel(R) Core(TM) i3, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Pentium(R)
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum number of SMP processors: 1

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No
Number of displays supported: 3

Features
Audio chip: Realtek ALC897
Product colour: Green
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel B660

Memory
Supported memory clock speeds: 3400, 4600, 2133, 3200 MHz, 2666, 3466, 3733, 4400, 5000, 2400, 2800, 4000, 4800, 3000, 2933, 3600, 3333
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
ECC ?ompatibility: Non-ECC
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM

Weight & dimensions
Width: 244 mm
Height: 51 mm
Depth: 244 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Not available
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Bluetooth version: 5.2
Wi-Fi: No

Internal I/O
Number of COM connectors: 1
Number of chassis fan connectors: 2
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Number of SATA III connectors: 4
RGB LED pin header: Yes
12V power connector: Yes

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID levels: 10, 0, 1, 5
RAID support: Yes
Supported storage drive interfaces: M.2, SATA
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
HDMI ports quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPorts quantity: 2
USB 2.0 ports quantity: 2
PS/2 ports quantity: 2
Microphone in: Yes
Headphone outputs: 1
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1

Other features
Weight: 634 g

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.


Warranty: warranty 36 months
