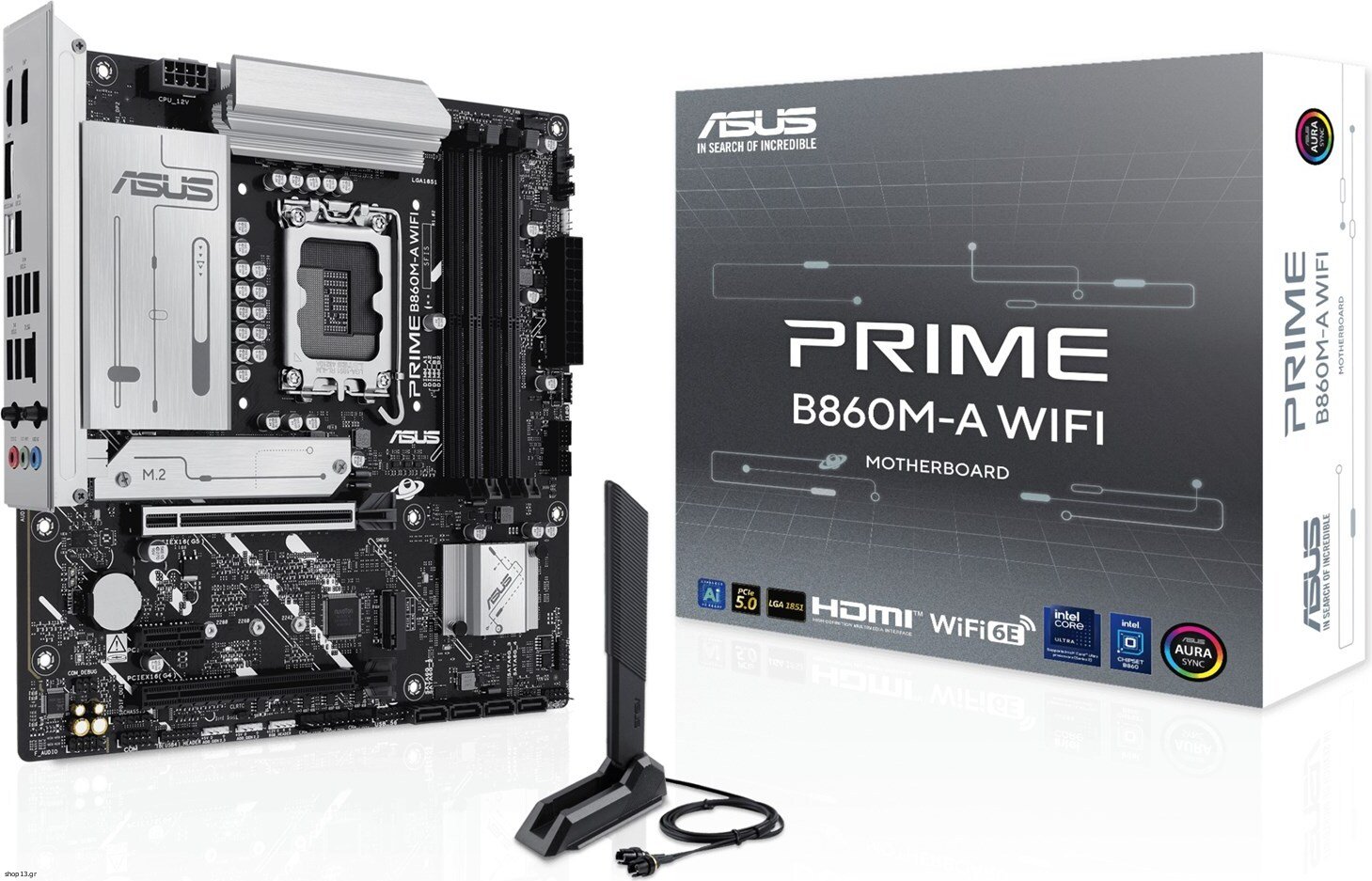

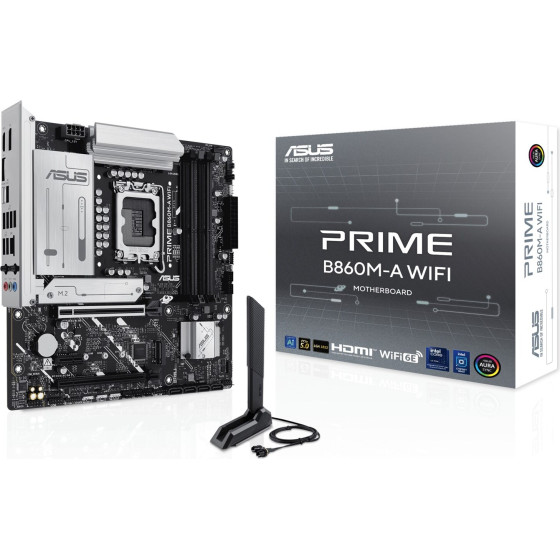

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX - (90MB1JY0-M0EAY0)

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard chipset: Intel B860
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels

Memory
Unbuffered memory: Yes
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
S/PDIF out connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
Chassis intrusion connector: Yes
CPU fan connector: Yes
TPM connector: Yes
Front panel audio connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
Thunderbolt headers: 1
Number of COM connectors: 1
Number of chassis fan connectors: 3
12V power connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package depth: 275 mm
Package width: 275 mm
Package weight: 1.44 kg
Package height: 67.5 mm

Packaging content
Cables included: SATA
Antenna included: Yes
Screws included: Yes

Storage controllers
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 5, 10, 1, 0
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
WiFi-AP antenna jack: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.


Warranty: warranty 36 months
