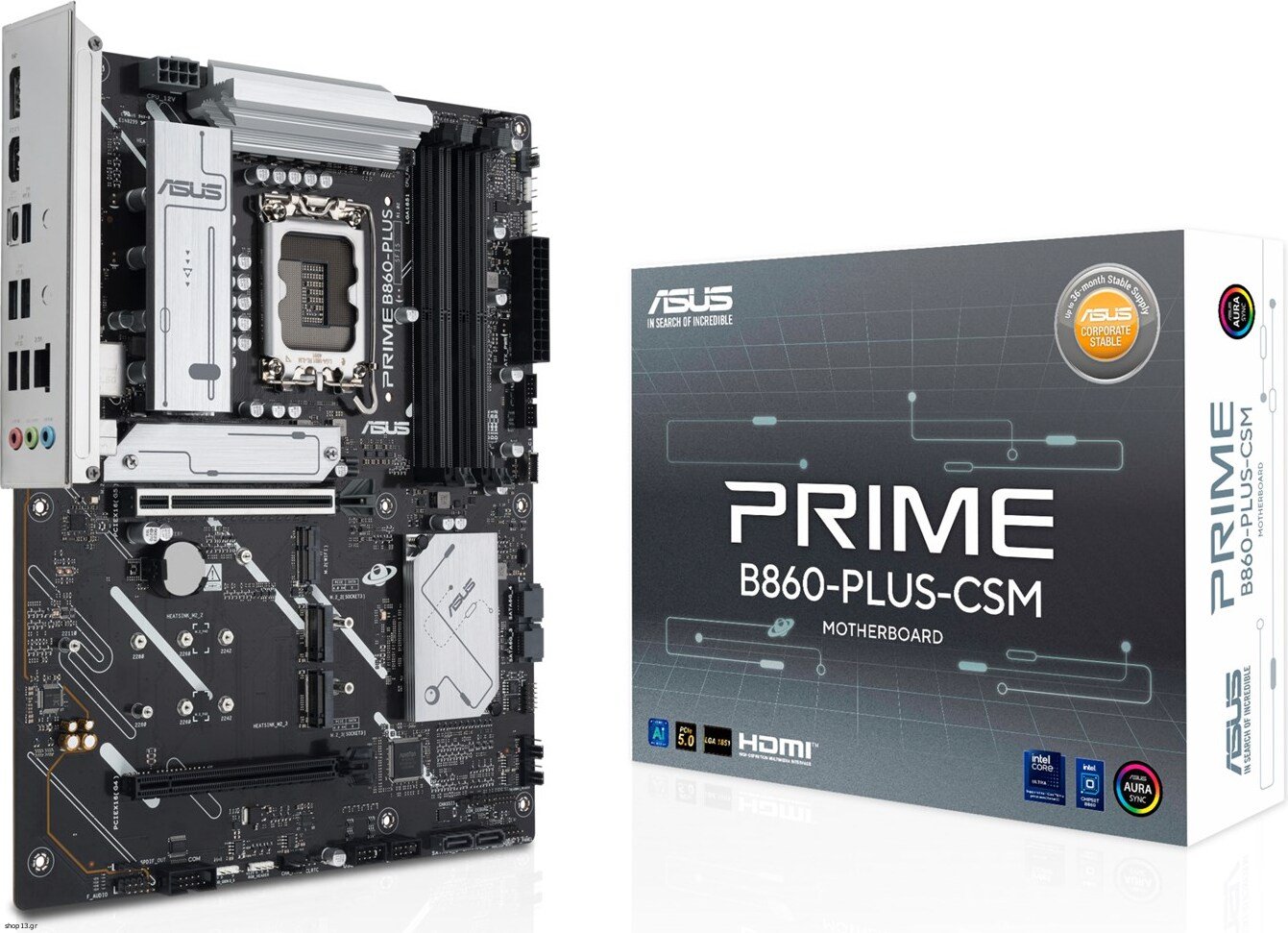

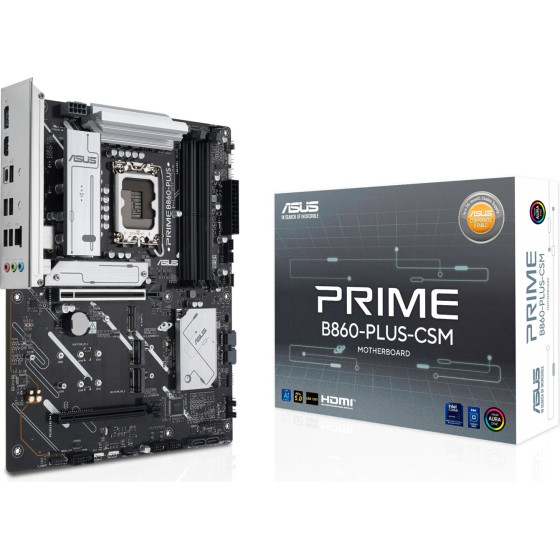

ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 (Socket V1) ATX - (90MB1KA0-M0EAYC)

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Product colour: Multicolour
Motherboard chipset: Intel B860

Memory
Supported memory clock speed (max): 8666 MHz
ECC ?ompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Unbuffered memory: Yes
Memory channels: Dual-channel
Memory slots type: DIMM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
Number of CPU fan connectors: 1
12V power connector: Yes
RGB LED pin header: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
USB 2.0 connectors: 2
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Number of chassis fan connectors: 4
S/PDIF out connector: Yes
Thunderbolt headers: 1

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID levels: 1, 10, 0, 5
Supported storage drive interfaces: M.2, Serial ATA
RAID support: Yes

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Line-in: Yes
Number of audio jack connectors: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3

Safety warning
Warnings: In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics.


Warranty: warranty 36 months
