Περιγραφή
Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Graphics
Parallel processing technology support: Not supported
Features
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B650
Windows operating systems supported: Windows 10 x64, Windows 11
Memory
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speeds: 6200, 5200, 6000, 6800, 6400, 5000, 5600, 7200, 7000, 7400, 4800 MHz, 7600 MHz, 7800, 6600, 5800, 5400
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 7600 MHz
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Network
Bluetooth: Yes
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Internal I/O
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Thunderbolt headers: 1
CPU fan connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Number of COM connectors: 1
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 3
BIOS
BIOS type: UEFI AMI
Packaging data
Package weight: 1.35 kg
Package depth: 373 mm
Package width: 338 mm
Package height: 68 mm
Packaging content
Antenna included: Yes
Cables included: SATA
Screws included: Yes
Storage controllers
RAID levels: 1, 0, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4

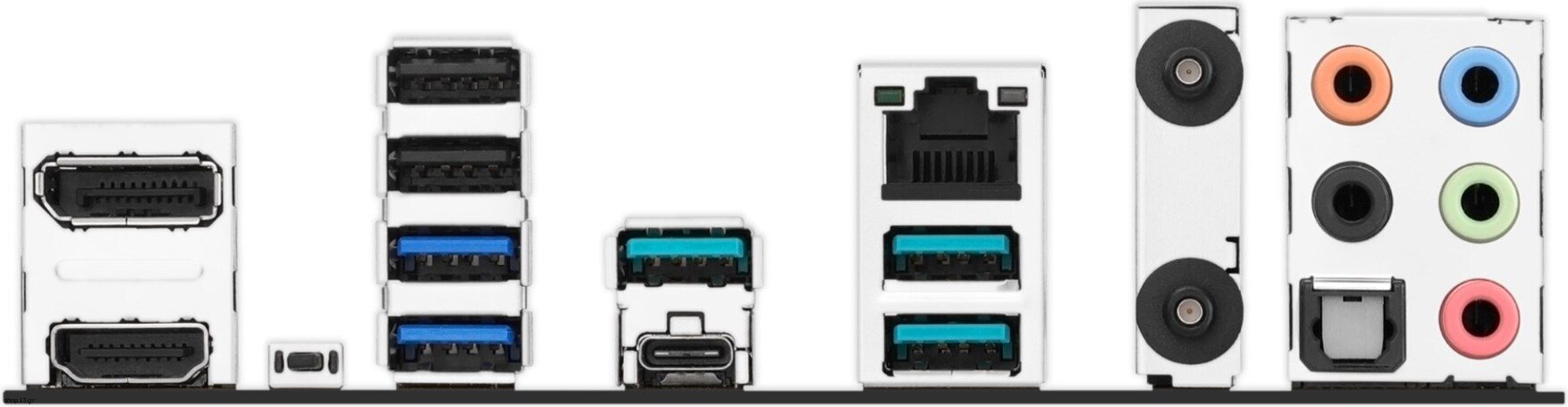

Rear panel I/O ports
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
WiFi-AP antenna jack: 1
Expansion slots
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 22110
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 2
Warranty: warranty 36 months
