Περιγραφή
Processor
Compatible processor series: AMD Ryzen 9 5th Gen, AMD Ryzen(TM) 3, AMD Ryzen(TM) 5, 3rd Generation AMD Ryzen(TM) 9, AMD Ryzen(TM) 7
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Graphics
Parallel processing technology support: Not supported
Features
Windows operating systems supported: Windows 10, Windows 11
Audio output channels: 7.1 channels
Motherboard chipset: AMD A520
Product colour: Black
Motherboard chipset family: AMD
Cooling type: Passive
Motherboard form factor: micro ATX
Power source type: ATX
Memory
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 5100 MHz
Number of memory slots: 2
Supported memory clock speeds: 3733, 3400, 3866, 2400, 2800, 3000, 5100 MHz, 4333, 4600 MHz, 3200 MHz, 2666, 4266, 2133, 4200, 3466, 4400, 4666, 4866, 4133, 4000, 2933, 3600, 3333, 4466
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Weight & dimensions
Depth: 193 mm
Width: 236 mm
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Internal I/O
12V power connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
TPM connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
Number of COM connectors: 1
Number of chassis fan connectors: 1
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
BIOS
BIOS type: UEFI AMI
Packaging data
Package weight: 880 g
Package width: 270 mm
Package depth: 263 mm
Package height: 51.5 mm

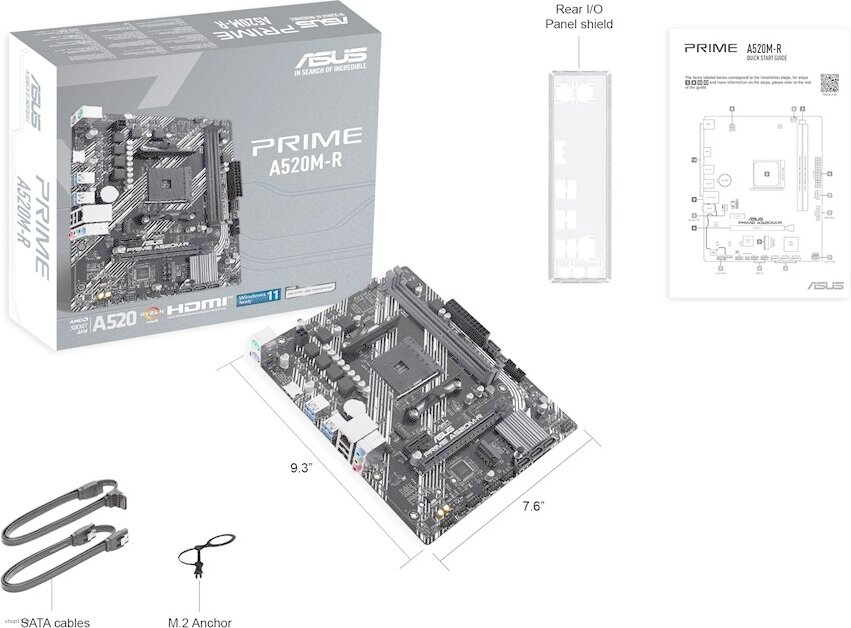

Packaging content
Cables included: SATA
Storage controllers
Number of storage drives supported: 5
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 1, 0, 10
Supported storage drive interfaces: M.2, SATA III
Rear panel I/O ports
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
PS/2 ports quantity: 2
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Safety warning
Warnings: Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture., Dispose of according to local electro-waste regulations.
Warranty: warranty 36 months
