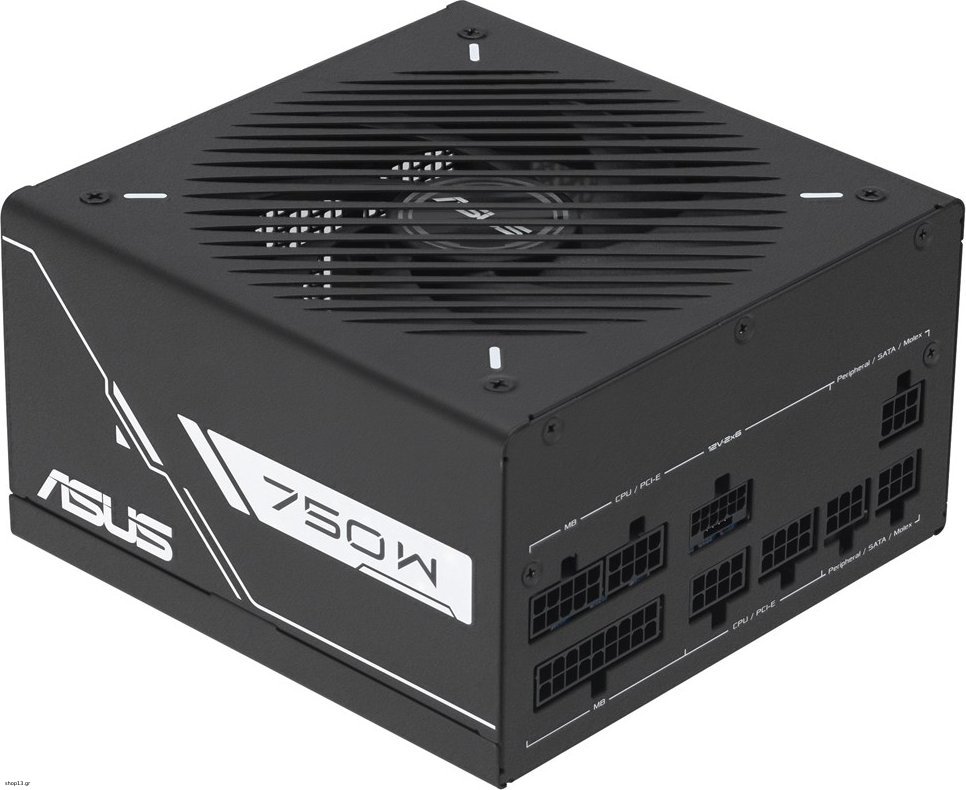

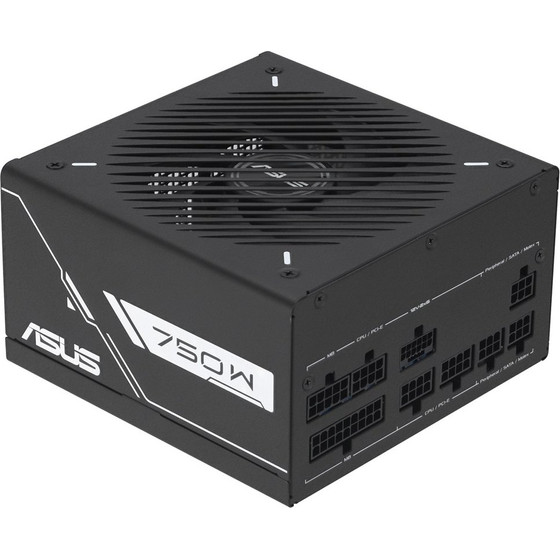

Asus Prime -750G Power Supply Unit 750 W 20+4 Pin Atx Atx Black - (90YE00U3-B0NA00)

Design
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Product colour: Black
On/off switch: Yes

Power
Power Factor Correction (PFC) type: Active
Max output current (+12V): 62 A
Combined power (+3.3V): 110 W
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
AC input voltage: 100 - 240 V
Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Combined power (+12V): 744 W
Combined power (-12V): 3.6 W
Combined power (+5V): 110 W
Max output current (+3.3V): 20 A
Total power: 750 W

Weight & dimensions
Height: 86 mm
Depth: 150 mm
Width: 150 mm
Weight: 1.45 kg

Performance
Mean time between failures (MTBF): 120000 h
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Bearing technology: DBB
Power supply unit (PSU) form factor: ATX
Purpose: PC

Packaging data
Package width: 320 mm
Package weight: 2.74 kg
Package depth: 213 mm
Package height: 113 mm
Package type: Box

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
PCI Express power connectors (16-pin): 1
Number of SATA power connectors: 5
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
Cabling type: Fully-Modular
Peripheral (Molex) power cable length: 150, 400 mm
Motherboard power cable length: 60 cm
SATA power cable length: 400 mm, 120


Warranty: warranty 120 months
