Περιγραφή
Processor
Processor manufacturer: Intel
Compatible processor series: Intel(R) Pentium(R), Intel Xeon E
Processor socket: LGA 1700
Graphics
Graphics card: AST2600
Graphics card family: ASPEED
Features
Component for: Server
Motherboard chipset: Intel C262
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Memory
Supported memory module capacities: 16GB, 8GB, 32GB
Supported memory clock speeds: 4400, 3600, 4000
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%
Operating temperature (T-T): 10 - 50 °C
Weight & dimensions
Depth: 244 mm
Width: 244 mm
Network
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Internal I/O
ATX Power connector (24-pin): Yes
TPM connector: Yes
Serial port headers: 1
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 3
Number of SATA III connectors: 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 1
Packaging data
Package weight: 1.3 kg
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 8

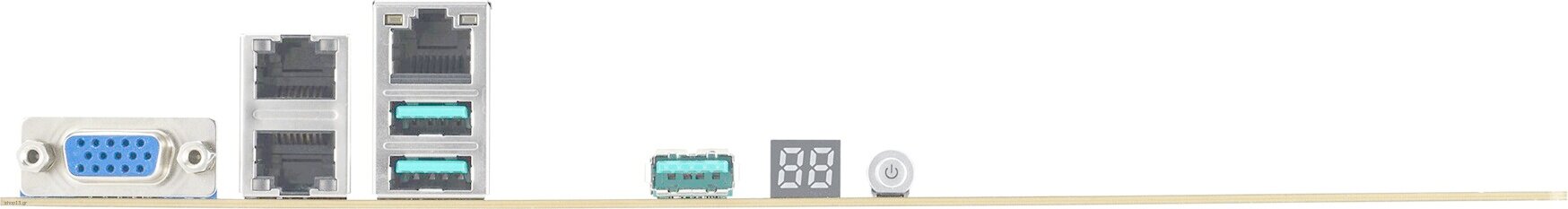

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 2
Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Other features
Weight: 760 g
Warranty: warranty 36 months
