Asus P13R-I Intel C262 Lga 1700 Mini Itx - (90SB0CR0-M0UAY0)

Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel Xeon E, Intel(R) Pentium(R), Intel(R) Xeon(R)
Supported processor sockets: LGA 1700

Graphics
On-board graphics card memory: 64 MB
Graphics card: AST2600
Parallel processing technology support: Not supported

Features
Motherboard form factor: mini ITX
Cooling type: Passive
Motherboard chipset family: Intel
Motherboard chipset: Intel C262
Product colour: Black
Component for: Server

Memory
ECC ?ompatibility: ECC
Supported memory clock speed (max): 4800 MHz
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Supported memory clock speeds: 3600, 4000, 4800, 4400
Number of memory slots: 2
Maximum internal memory: 64 GB

Operational conditions
Operating temperature (T-T): 10 - 50 °C
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Width: 170 mm
Depth: 170 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Number of CPU fan connectors: 1
Number of SATA III connectors: 6
Number of COM connectors: 1
TPM connector: Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 2

Storage controllers
Supported storage drive interfaces: PCI Express 4.0, SATA III
Number of HDDs supported: 6
Supported storage drive types: HDD & SSD
Number of storage drives supported: 7

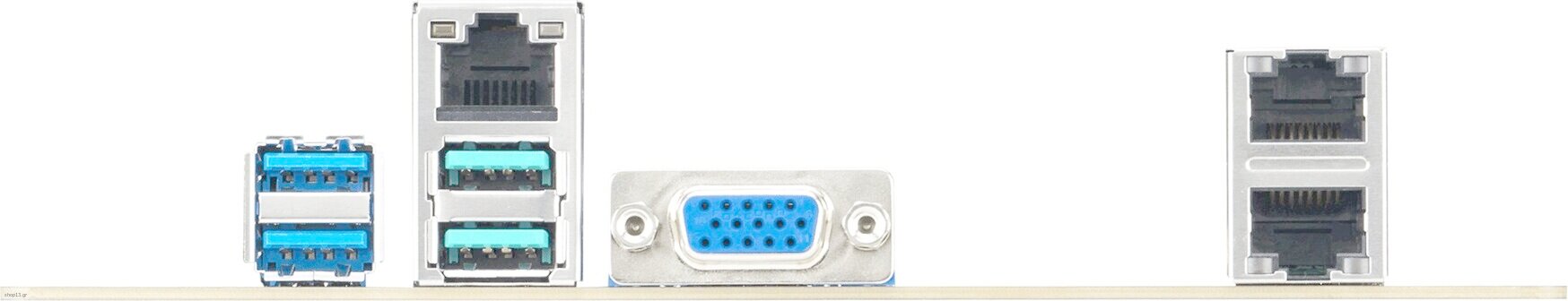

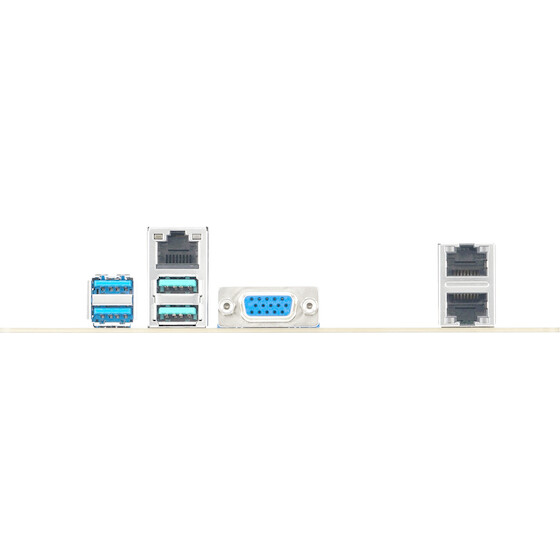

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1

Expansion slots
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 1

Safety warning
Warnings: Adjust adequate ventilation to avoid overheating and potential damage., The product contains electrical components - take care during installation to avoid injury., Avoid contact with liquids and moisture to prevent damage to equipment.


Warranty: warranty 36 months
