Περιγραφή
Processor
Supported processor sockets: LGA 1700
Compatible processor series: AMD Turion X2 Ultra Dual-Core, Intel Xeon 6300, Intel(R) Pentium(R), Intel Xeon E
Processor manufacturer: Intel
Processor socket: LGA 1700
Graphics
Parallel processing technology support: Not supported
Features
Component for: Server
Cooling type: Passive
Power source type: ATX
Motherboard chipset: Intel C266
PC health monitoring: CPU, Temperature, Fan
Product colour: Black
Motherboard chipset family: Intel
Motherboard form factor: ATX
Memory
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Supported memory clock speed (max): 4400 MHz
Memory slots type: DIMM
Maximum internal memory per slot: 32 GB
ECC ?ompatibility: ECC
Supported memory clock speeds: 4000, 3600, 4400
Maximum internal memory: 128 GB
Operational conditions
Storage relative humidity (H-H): 20 - 90%
Operating temperature (T-T): 10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Weight & dimensions
Depth: 244 mm
Height: 68 mm
Width: 305 mm
Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Internal I/O
Number of chassis fan connectors: 6
12V power connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Number of COM connectors: 1
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
Number of EPS power connectors (8-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 1
Number of SATA III connectors: 8
Packaging data
Package height: 78 mm
Package width: 341 mm
Package weight: 1.5 kg
Package depth: 281 mm
Storage controllers
Number of storage drives supported: 10
Number of HDDs supported: 8
Supported storage drive interfaces: PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD

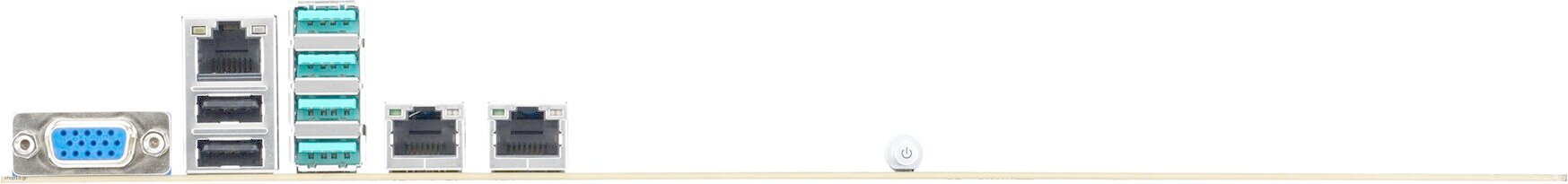

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Expansion slots
PCI Express x4 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x8 (Gen 5.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 22110
Other features
Weight: 800 g
Warranty: warranty 36 months
