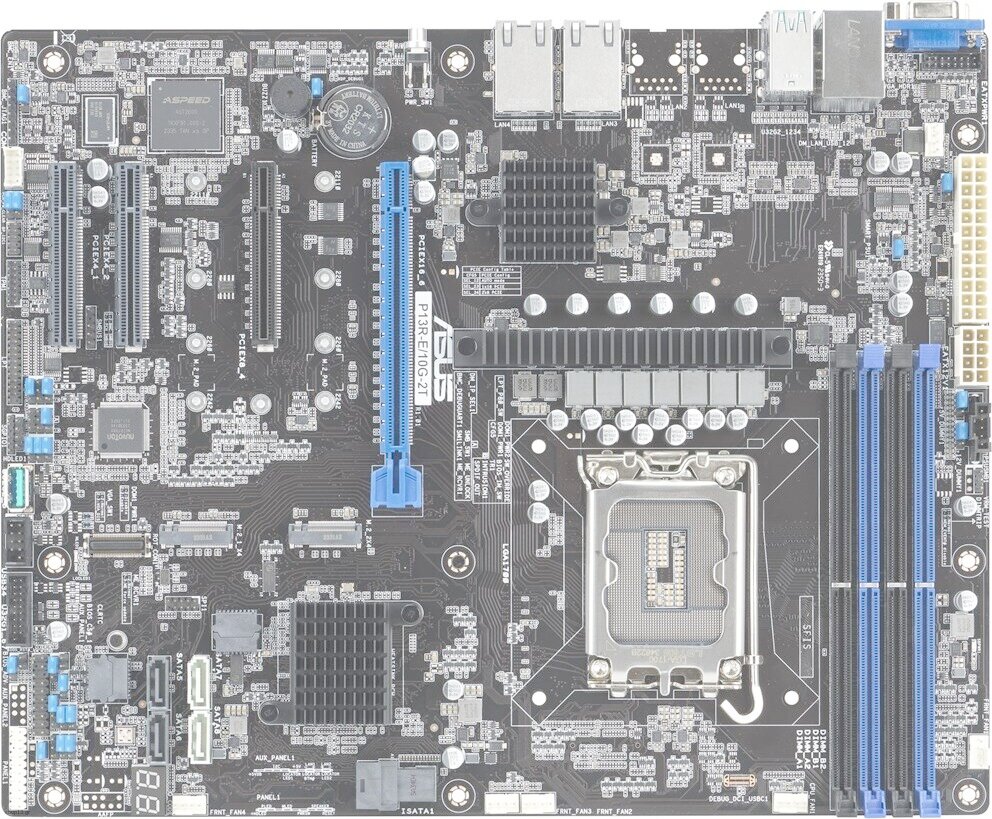

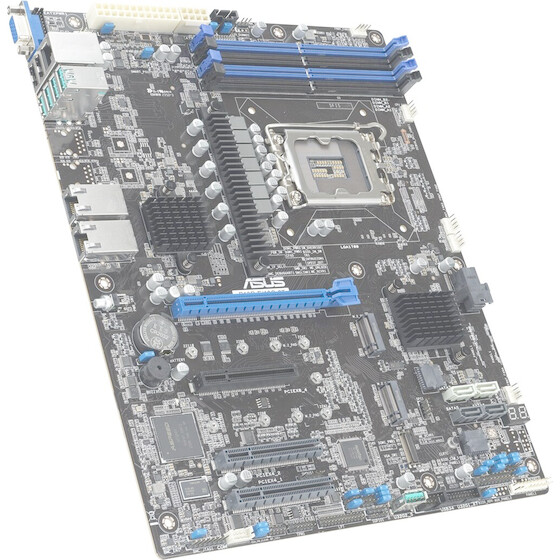

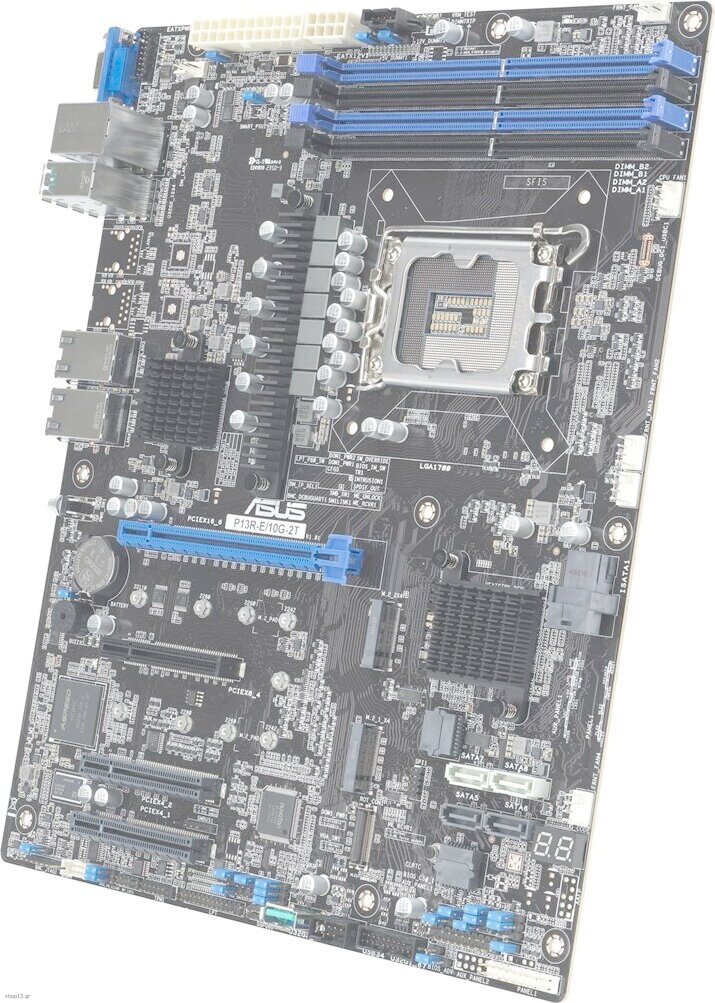

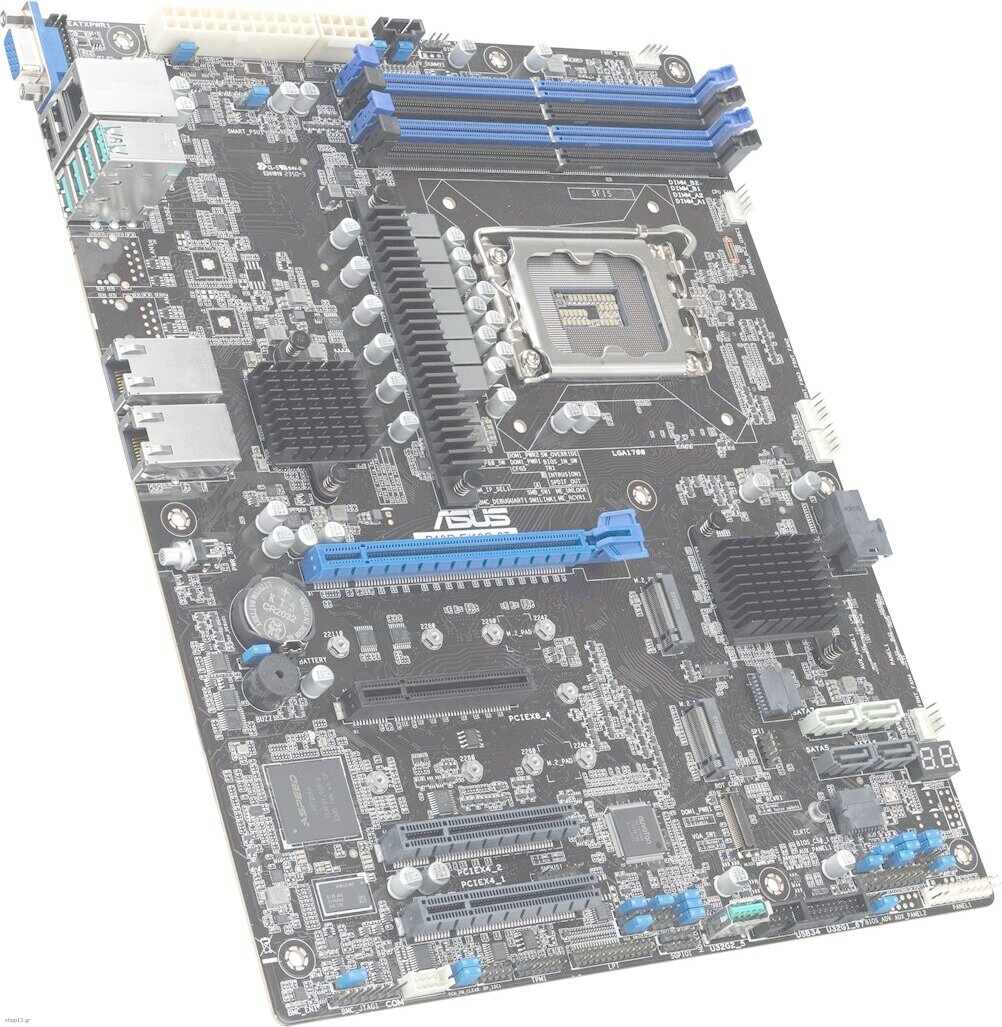

Asus P13R-E/10G-2T Intel C266 Lga 1700 Atx - (90SB0CY0-M0UAY1)

Processor
Processor manufacturer: Intel
Compatible processor series: Intel(R) Pentium(R), Intel Xeon E
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
PC health monitoring: Temperature, Fan, CPU
Cooling type: Passive
Product colour: Black
Power source type: ATX
Motherboard chipset: Intel C266
Motherboard chipset family: Intel
Motherboard form factor: ATX
Component for: Server

Memory
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
ECC ?ompatibility: ECC
Supported memory clock speed (max): 4400 MHz
Maximum internal memory per slot: 32 GB
Memory channels: Dual-channel
Supported memory clock speeds: 3600, 4400, 4000
Maximum internal memory: 128 GB

Operational conditions
Storage relative humidity (H-H): 20 - 90%
Operating temperature (T-T): 10 - 50 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: 10 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
12V power connector: Yes
Number of EPS power connectors (8-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of COM connectors: 1
EPS power connector (8-pin): Yes
Number of SATA III connectors: 8
TPM connector: Yes
USB 2.0 connectors: 1
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 6

Packaging data
Package weight: 1.9 kg
Package height: 78 mm
Package width: 341 mm
Package depth: 281 mm

Storage controllers
Number of HDDs supported: 8
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express, SATA III
Number of storage drives supported: 10

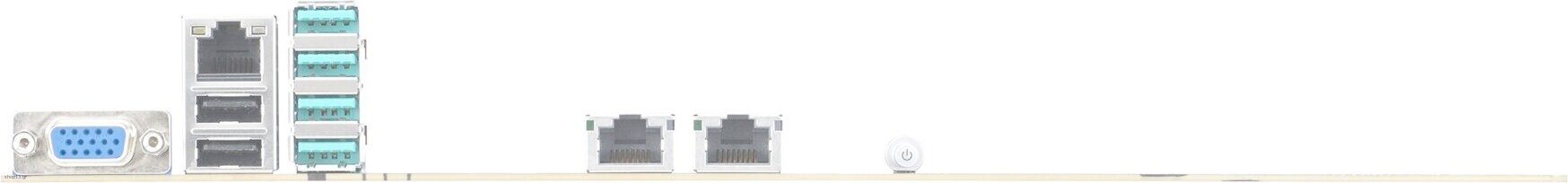

Rear panel I/O ports
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express x4 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x8 (Gen 5.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2

Other features
Weight: 800 g


Warranty: warranty 36 months
