Περιγραφή
Processor
Compatible processor series: Intel(R) Pentium(R), Intel Xeon E
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Graphics
On-board graphics card memory: 64 MB
On-board graphics card model: Aspeed AST2600
On-board graphics card: Yes
Graphics card family: ASPEED
Features
PC health monitoring: CPU, Fan
Motherboard chipset family: Intel
Motherboard chipset: Intel C256
Motherboard form factor: ATX
Component for: Server
Memory
Supported memory clock speeds: 3200 MHz, 2666, 2933
Supported memory module capacities: 32GB, 16GB, 8GB
Memory slots type: DIMM
Number of memory slots: 4
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Supported memory clock speed (max): 3200 MHz
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 50 °C
Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 68 mm
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Internal I/O
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Power fan connector: Yes
TPM connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 8
USB 2.0 connectors: 1
Packaging data
Package weight: 1.5 kg
Package width: 341 mm
Package height: 78 mm
Package depth: 281 mm
Storage controllers
Number of HDDs supported: 8
RAID support: Yes
Number of storage drives supported: 10
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

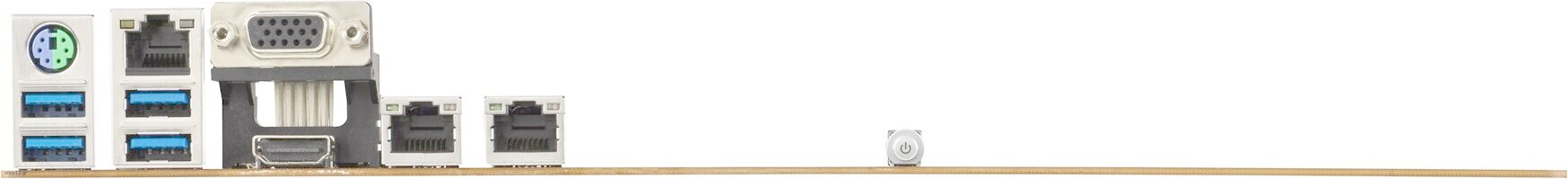

Rear panel I/O ports
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
PS/2 ports quantity: 1
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x8 (Gen 3.x) slots: 2
PCI Express x8 (Gen 4.x) slots: 1
Other features
Weight: 800 g
Logistics data
Harmonized System (HS) code: 84733020
Safety warning
Warnings: Adjust adequate ventilation to avoid overheating and potential damage., The product contains electrical components - take care during installation to avoid injury., Avoid contact with liquids and moisture to prevent damage to equipment.
Warranty: warranty 36 months
