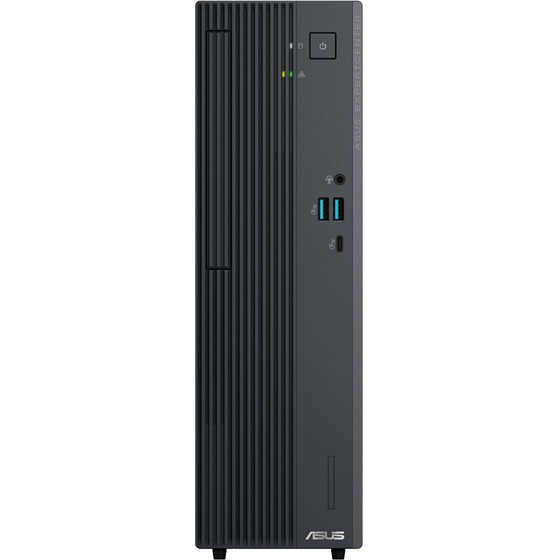

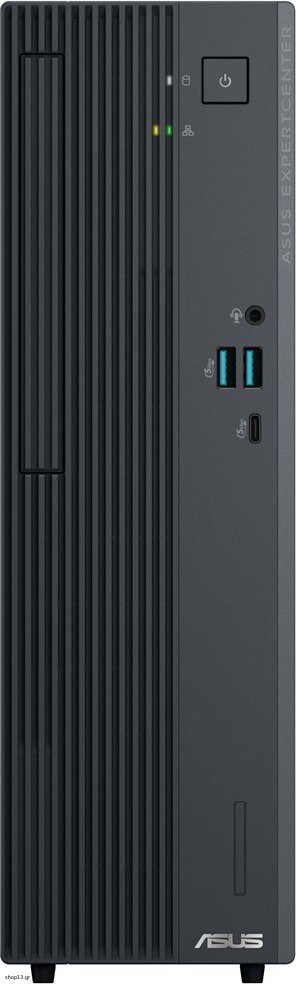

Asus Expertcenter P500 Sff Intel Core 7 240H 16 Gb DDR5-Sdram 512 Gb Ssd Pc Grey - (P500SV-07240H0040)

Processor
Processor boost frequency: 5.2 GHz
Processor cores: 10
Processor family: Intel Core 7
Efficient-core base frequency: 1.8 GHz
Maximum turbo power: 115 W
Processor model: 240H
Efficient cores: 4
Processor generation: Intel Core (Series 2)
Processor base power: 45 W
Processor threads: 16
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor manufacturer: Intel
Performance-core base frequency: 2.5 GHz
Performance cores: 6
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core Max Turbo Frequency: 5.2 GHz

Graphics
On-board graphics card model: Intel(R) Graphics
Discrete graphics card model: Not available
On-board graphics card: Yes
Discrete graphics card: No
On-board GPU manufacturer: Intel
On-board graphics card family: Intel(R) Graphics

Memory
Maximum internal memory: 64 GB
Memory layout (slots x size): 1 x 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Internal memory: 16 GB

Design
Product colour: Grey
Cable lock slot: Yes
Cable lock slot type: Kensington
Chassis type: SFF
Introduction year: 2025
Number of 3.5" bays: 1
Colour name: Grey

Power
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50 - 60 Hz
Power supply: 180 W
80 PLUS certification: 80 PLUS Bronze

Weight & dimensions
Weight: 5.06 kg
Height: 309 mm
Depth: 296 mm
Width: 93 mm

Network
Antenna type: 2x2
Ethernet LAN data rates: 100, 1000, 10
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.4
Wi-Fi: Yes

Performance
Audio system: High Definition Audio
Trusted Platform Module (TPM): Yes
Audio output channels: 7.1 channels
Password protection type: HDD, User
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Market positioning: Business
Password protection: Yes

Packaging data
Package height: 510 mm
Package depth: 168 mm
Package width: 490 mm

Packaging content
Mouse included: No
Keyboard included: No

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1

Display
Display included: No

Software
Operating system installed: No

Certificates
Compliance certificates: REACH

Storage
Optical drive type: No
SSD form factor: M.2
Storage media: SSD
Total storage capacity: 512 GB
SSD capacity: 512 GB
Number of SSDs installed: 1
Total SSDs capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
M.2 SSD size: 2280 (22 x 80 mm)

Ports & interfaces
Number of rear USB ports: 4
Number of SATA III connectors: 2
Ethernet LAN (RJ-45) ports: 1
Number of front audio ports: 1
Number of rear audio ports: 3
DisplayPort version: 1.4
DisplayPorts quantity: 1
Number of front USB ports: 3
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 1.4
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
Combo headphone/mic port: Yes
Line-out: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Sustainability
Sustainability certificates: EPEAT Silver, ENERGY STAR


Warranty: Manufacturer warranty 36 months
