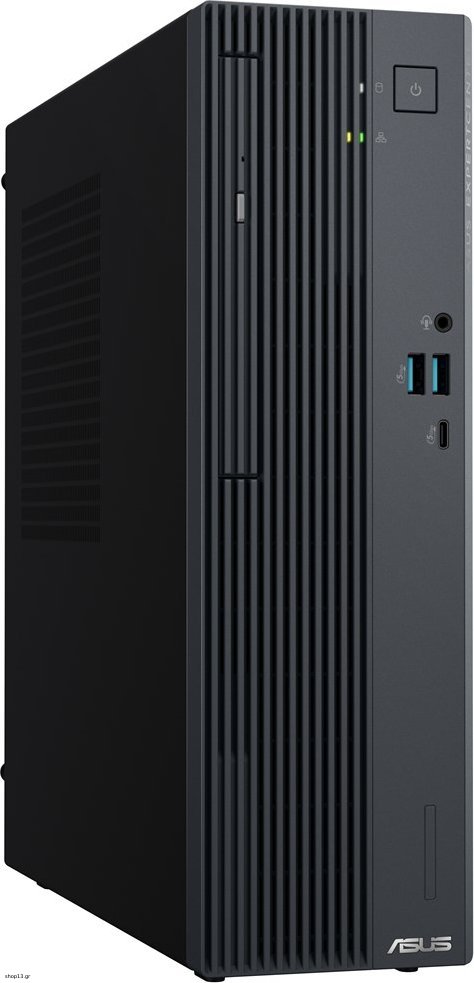

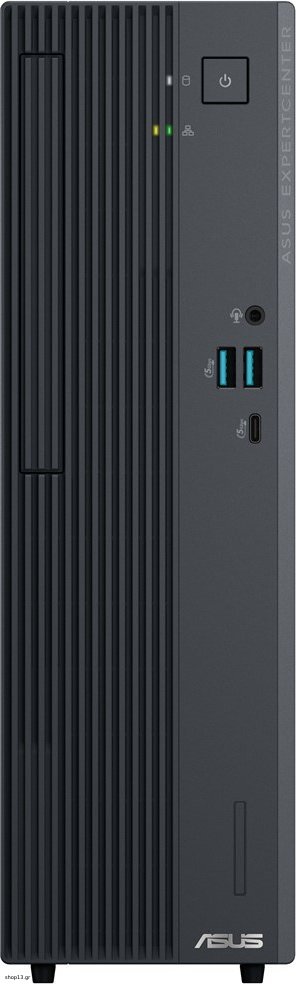

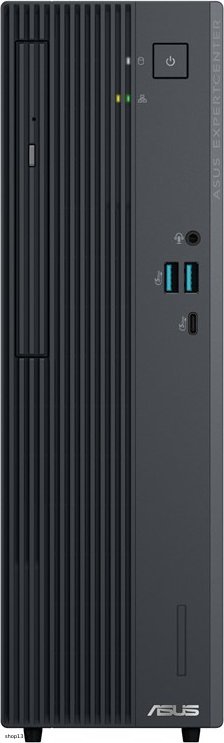

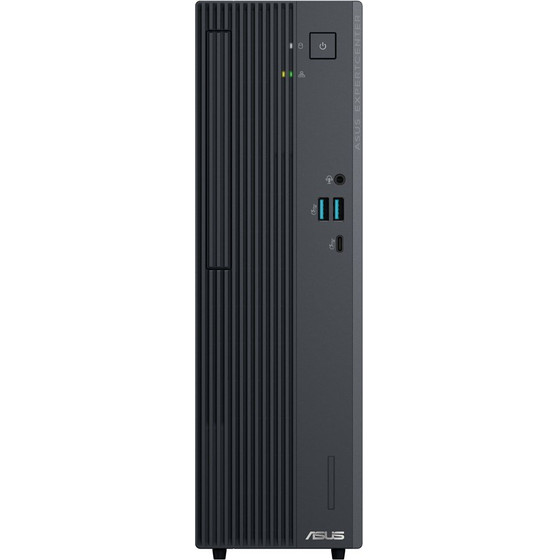

Asus Expertcenter P500 Sff Intel Core 5 210H 16 Gb DDR5-Sdram 512 Gb Ssd Pc Grey - (P500SV-05210H0020)

Processor
Processor cache: 12 MB
Processor family: Intel Core 5
Processor threads: 12
Processor boost frequency: 4.8 GHz
Processor manufacturer: Intel
Processor cache type: Smart Cache
Processor cores: 8
Processor model: 210H
Efficient cores: 4
Efficient-core Max Turbo Frequency: 3.6 GHz
Processor generation: Intel Core (Series 2)
Performance cores: 4
Performance-core base frequency: 2.2 GHz
Processor base power: 45 W
Efficient-core base frequency: 1.6 GHz
Maximum turbo power: 115 W

Graphics
Discrete graphics card model: Not available
On-board graphics card model: Intel(R) Graphics
Discrete graphics card: No
On-board graphics card: Yes
On-board graphics card family: Intel(R) Graphics
On-board GPU manufacturer: Intel

Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64 GB
Memory slots: 2x DIMM
Memory layout (slots x size): 1 x 16 GB

Design
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Grey
Number of 3.5" bays: 1
Colour name: Grey
Introduction year: 2025
Chassis type: SFF

Power
Power supply input frequency: 50 - 60 Hz
Power supply: 180 W
80 PLUS certification: 80 PLUS Bronze
Power supply input voltage: 100 - 240 V

Weight & dimensions
Weight: 5.06 kg
Depth: 296 mm
Width: 93 mm
Height: 309 mm

Network
Antenna type: 2x2
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s, 10, 100
Cabling technology: 10/100/1000Base-T(X)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.4

Performance
Trusted Platform Module (TPM): Yes
Audio output channels: 7.1 channels
Audio system: High Definition Audio
Trusted Platform Module (TPM) version: 2.0
Password protection type: User, HDD
Product type: PC
Password protection: Yes
Market positioning: Business

Packaging data
Package depth: 168 mm
Package width: 490 mm
Package height: 510 mm

Packaging content
Mouse included: No
Keyboard included: No

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1

Display
Display included: No

Software
Operating system installed: No

Certificates
Compliance certificates: REACH

Storage
Optical drive type: No
Storage media: SSD
Total storage capacity: 512 GB
SSD form factor: M.2
Total SSDs capacity: 512 GB
NVMe: Yes
SSD interface: PCI Express 4.0
SSD capacity: 512 GB
M.2 SSD size: 2280 (22 x 80 mm)
Number of SSDs installed: 1

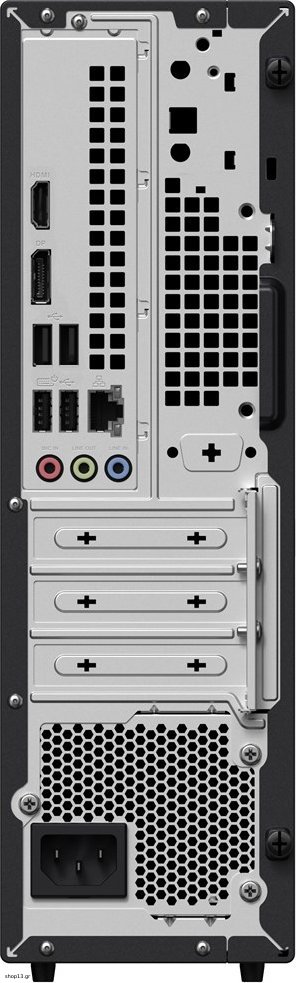

Ports & interfaces
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
HDMI version: 1.4
HDMI ports quantity: 1
Combo headphone/mic port: Yes
Number of front audio ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
Number of SATA III connectors: 2
Line-in: Yes
Number of rear audio ports: 3
Number of front USB ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Line-out: Yes
Number of rear USB ports: 4

Sustainability
Sustainability certificates: ENERGY STAR, EPEAT Silver


Warranty: Manufacturer warranty 36 months
