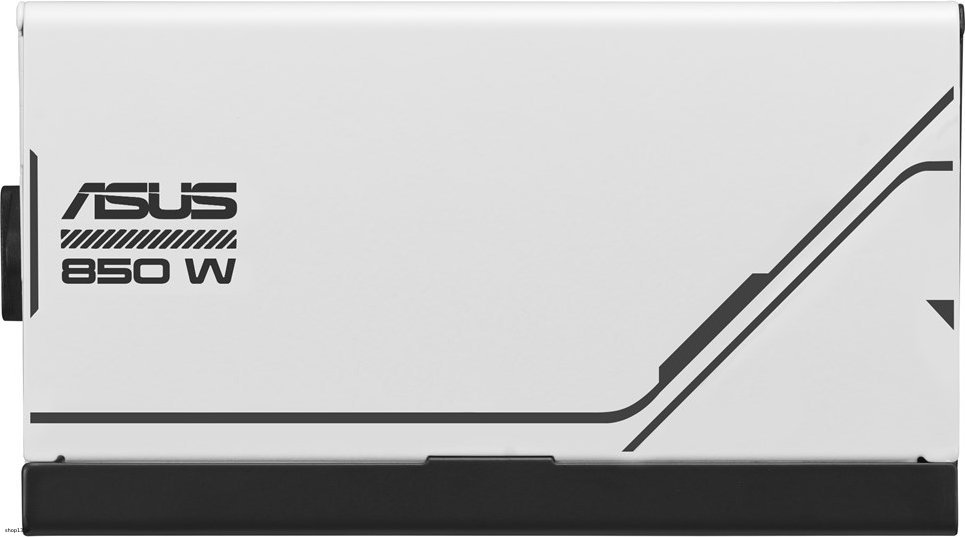

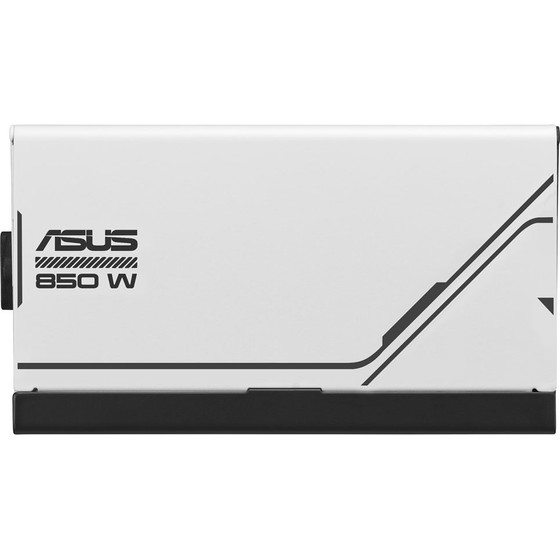

Asus AP-850G Power Supply Unit 850 W 20+4 Pin Atx Atx Black, White - (90YE00U0-B0NA00)

Design
Cooling type: Active
Product colour: White, Black
Number of fans: 1 fan(s)
Fan location: Top
Illumination: Yes

Power
AC input voltage: 100 - 240 V
Max output current (+12V): 70.5 A
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
Combined power (+3.3V): 110 W
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating
Total power: 850 W
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
Combined power (+5V): 110 W
Max output current (+5Vsb): 2.5 A
Combined power (+12V): 846 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 20 A

Weight & dimensions
Weight: 1.5 kg
Width: 150 mm
Depth: 150 mm
Height: 86 mm

Performance
Mean time between failures (MTBF): 120000 h
ATX version: 3.0
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Purpose: PC

Packaging data
Package type: Box
Package height: 144 mm
Package width: 346 mm
Package depth: 208 mm
Package weight: 2.92 kg

Packaging content
Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Certificates
Compliance certificates: RoHS

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 3
CPU power connector (4+4 pin): Yes
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
Peripheral (Molex) power cable length: 150, 400 mm
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
SATA power cable length: 400 mm, 120
Number of SATA power connectors: 5
CPU power cable length: 65 cm
Cabling type: Fully-Modular
PCI Express power cable length: 67.5 cm


Warranty: Gwarancja 96 miesiecy
