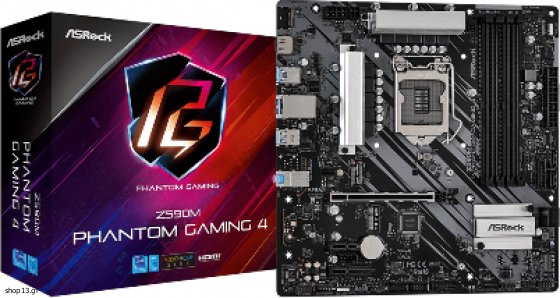

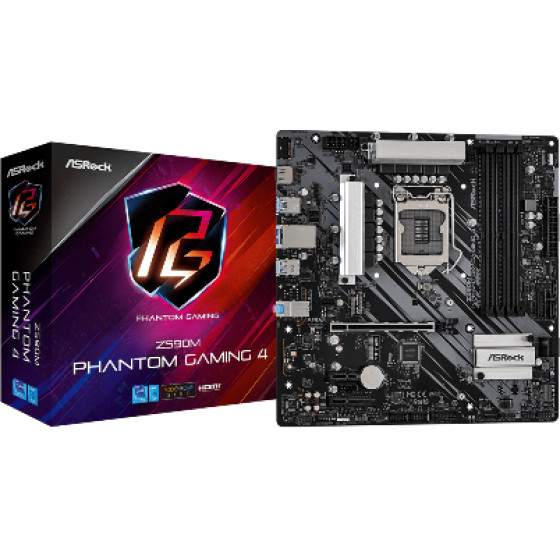

Asrock Socket INTEL LGA1200 11th/10th GEN, CS INTEL Z590, 4 DIMM SOCKETS DDR4, HDMI, LAN GIGABIT, Micro-ATX, 2YW. - (Z590M PHANTOM GAMING 4)

CPU Support: Socket Intel LGA1200 for 11th/10th Generation Intel CPU Core
Chipset: Intel Z590
MB Size: microATX
Memory Support:4 DIMM DDR4 Sockets for ECC and non-ECC un-buffered DDR4 RAM up to 4800+MHz (OC) for 11th GenCPU or up to 4600+MHz(OC) for 10th Gen CPU.Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel HD Graphics
VGA Out: 1x HDMI v2.0
Slots: 1x PCI-E (x16) v4.0 (11th Gen CPU),1x PCI-E (x16) v3.0 (10th Gen CPU), 2x PCI-E (x1) v3.0, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Storage: 4x SATA3 6Gbps ports supports RAID 0/1/5/10, 1x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core™ processors only), 1x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (supports RAID 0/1 for M.2 NVMe storage devices)
NIC: Gigabit LAN 10/100/1000 Mb/s
Audio: 7.1 Channel HD Audio. Supports Surge Protection. Nahimic Audio
I/O: 1x HDMI, 2x USB3.2 Gen2, 4(+4int)x USB 3.2 Gen1 type A, 1x RJ45 (LAN), 3 Audio jacks, 1x front panel audio connector, 3x Antenna Mounting Points
Εγγύηση:2 χρόνια
