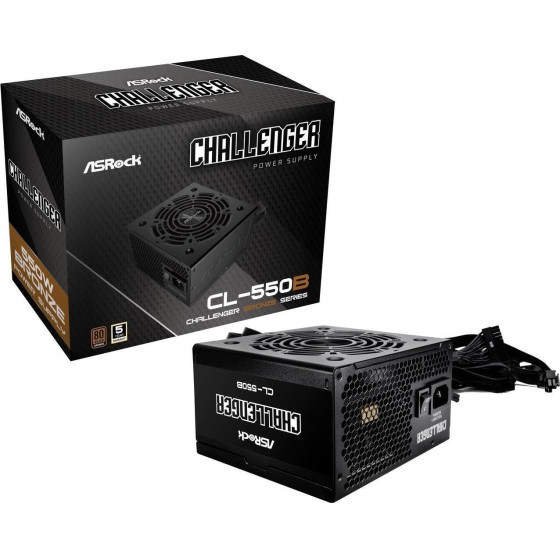

Asrock Power supply Challenger Bronze 550W (CL-550B) - (90-UXC055-BNEAAA)

Design
Fan diameter: 12 cm
Product colour: Black
On/off switch: Yes
Fan location: Top
Cooling type: Active
Number of fans: 1 fan(s)

Power
Total power: 550 W
Power protection features: OTP (overheat protection), UVP (undervoltage protection), SCP (short circuit protection), OVP (overvoltage protection), OPP (overload protection), OCP (overcurrent protection)
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active

Weight & dimensions
Depth: 140 mm
Width: 150 mm
Height: 86 mm

Performance
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Bronze

Ports & interfaces
Number of SATA power connectors: 4
PCI Express power connectors (6+2 pin): 2
EPS power connector (4+4 pin): 1
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power connector: 20+4 pin ATX

Safety warning
Warnings: Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.


Warranty: warranty 60 months
