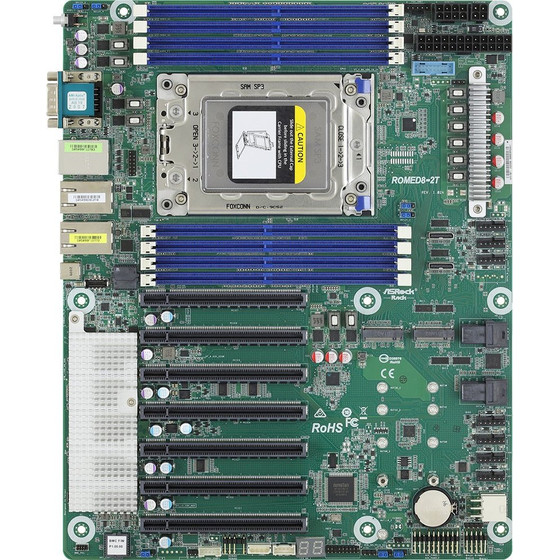

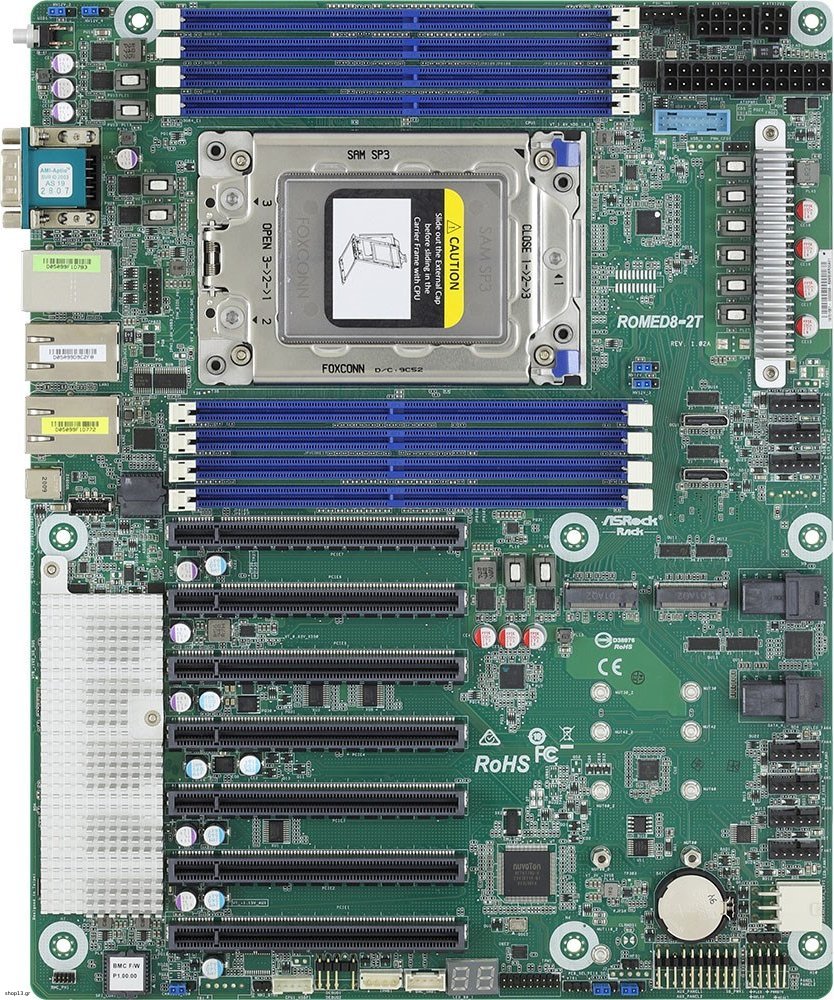

Asrock Motherboard Lga 4094 Atx - (ROMED8-2T)

Technical details
Compliance certificates: RoHS

Processor
Processor socket: LGA 4094
Compatible processor series: AMD EPYC
Processor manufacturer: AMD
Maximum number of SMP processors: 1

Graphics
Graphics card: AST2500

Features
Motherboard form factor: ATX

Memory
Supported memory clock speeds: 3200 MHz, 2666, 2933, 2400
Supported memory module capacities: 32GB, 128MB, 16GB, 64GB, 8GB, 256MB
Maximum internal memory: 2 TB
Number of memory slots: 8
Memory voltage: 1.2 V
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Memory channels: Octa-channel

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 70 mm

Network
Wake-on-LAN ready: Yes
LAN controller: Realtek RTL8211E
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: 10 Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 7
Number of SATA III connectors: 8
Power fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24-pin): Yes

BIOS
ACPI version: 2.0
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 2.8
BIOS type: AMI

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
COM ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 7

Other features
Weight: 1.69 kg

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: The motherboard may contain electronic components hazardous to health - avoid direct contact., Do not open or disassemble the motherboard., Use only in a dry and well-ventilated area.


Warranty: warranty 36 months
