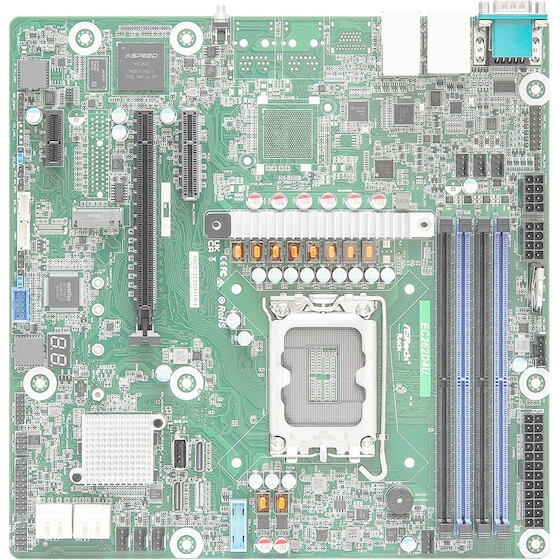

Asrock Motherboard Intel C262 Lga 1700 Micro Atx - (EC262D4U)

Processor
Processor manufacturer: Intel
Compatible processor series: Intel(R) Xeon(R)
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Features
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: CPU, Fan
Motherboard chipset: Intel C262

Memory
ECC ?ompatibility: ECC
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory voltage: 1.1

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Peripheral (Molex) power connectors (4-pin): 1
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 3

BIOS
BIOS memory size: 256 Mbit
BIOS type: AMI
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8

Storage controllers
RAID support: Yes
RAID levels: 0, 10, 5, 1
Supported storage drive interfaces: M.2

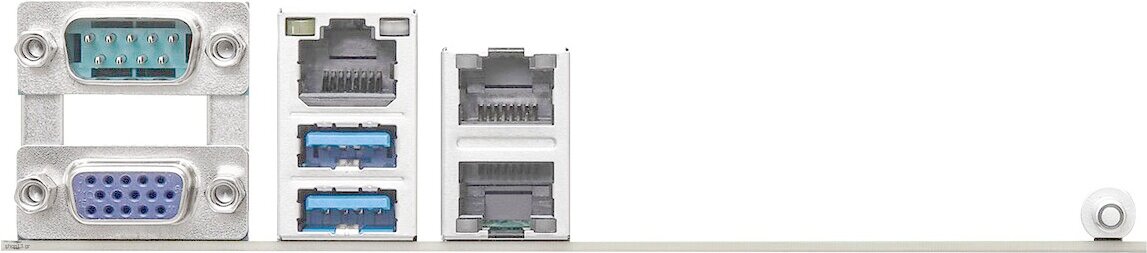

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
IPMI LAN (RJ-45) port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1


Warranty: warranty 36 months
