Περιγραφή
Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Graphics
Graphics card family: Intel
Features
Windows operating systems supported: Windows 11 x64
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H810
Audio output channels: 7.1 channels
Memory
ECC ?ompatibility: Non-ECC
Maximum internal memory: 128 GB
Number of memory slots: 2
Unbuffered memory: Yes
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Weight & dimensions
Depth: 193 mm
Width: 220 mm
Network
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11a?)
LAN controller: Dragon RTL8125BG
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Internal I/O
Number of CPU fan connectors: 1
Number of SATA III connectors: 4
CPU fan connector: Yes
Front panel audio connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 1
ATX Power connector (24-pin): Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Screws included: Yes
Cables included: SATA
Storage controllers
Supported storage drive interfaces: M.2, SATA III

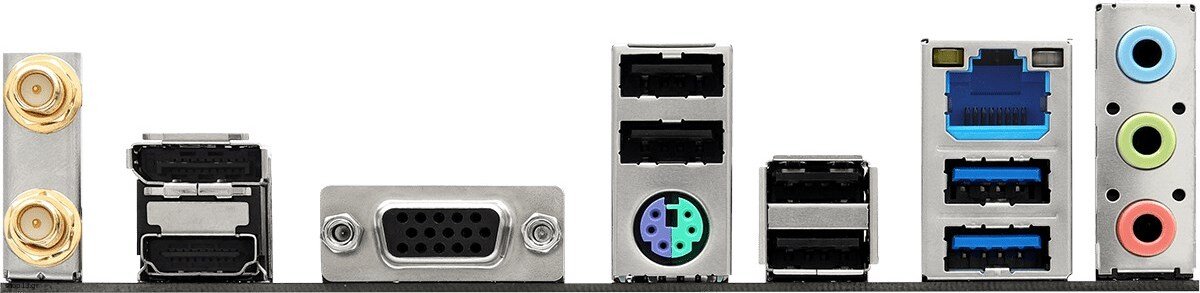

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Safety warning
Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.
Warranty: warranty 36 months
