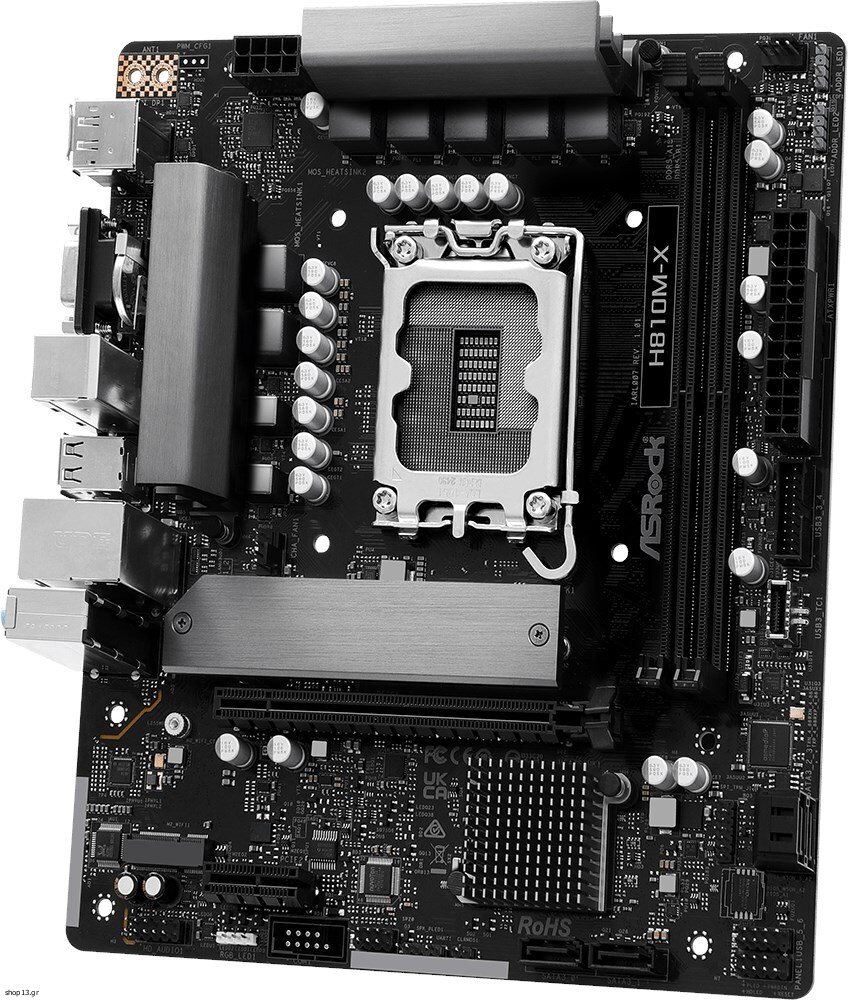

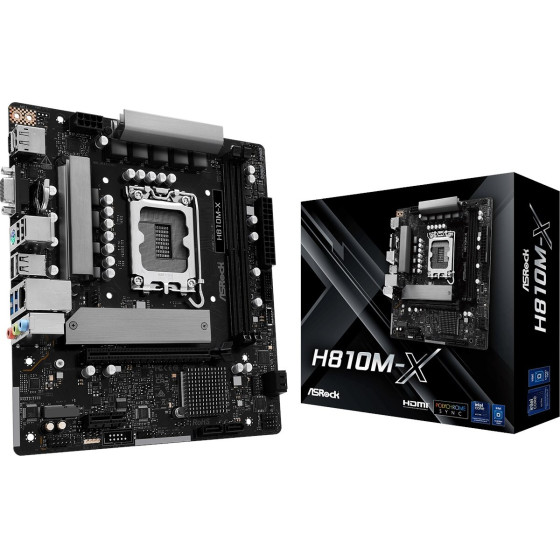

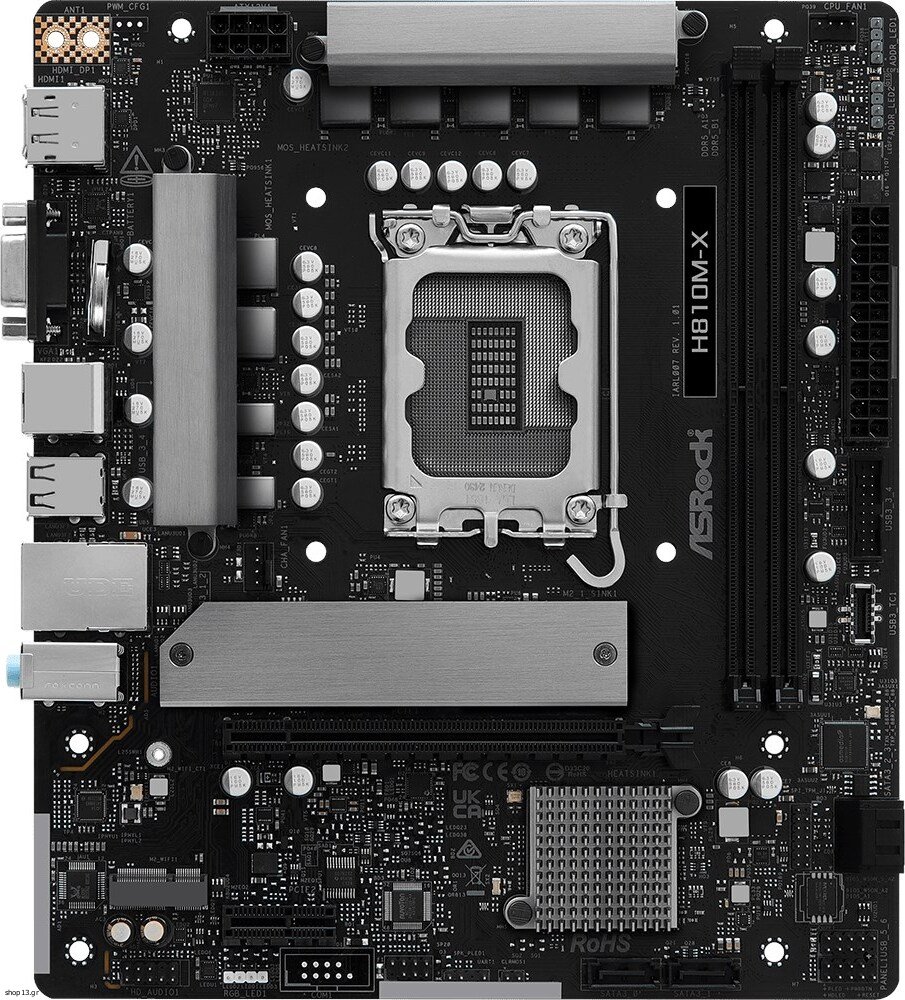

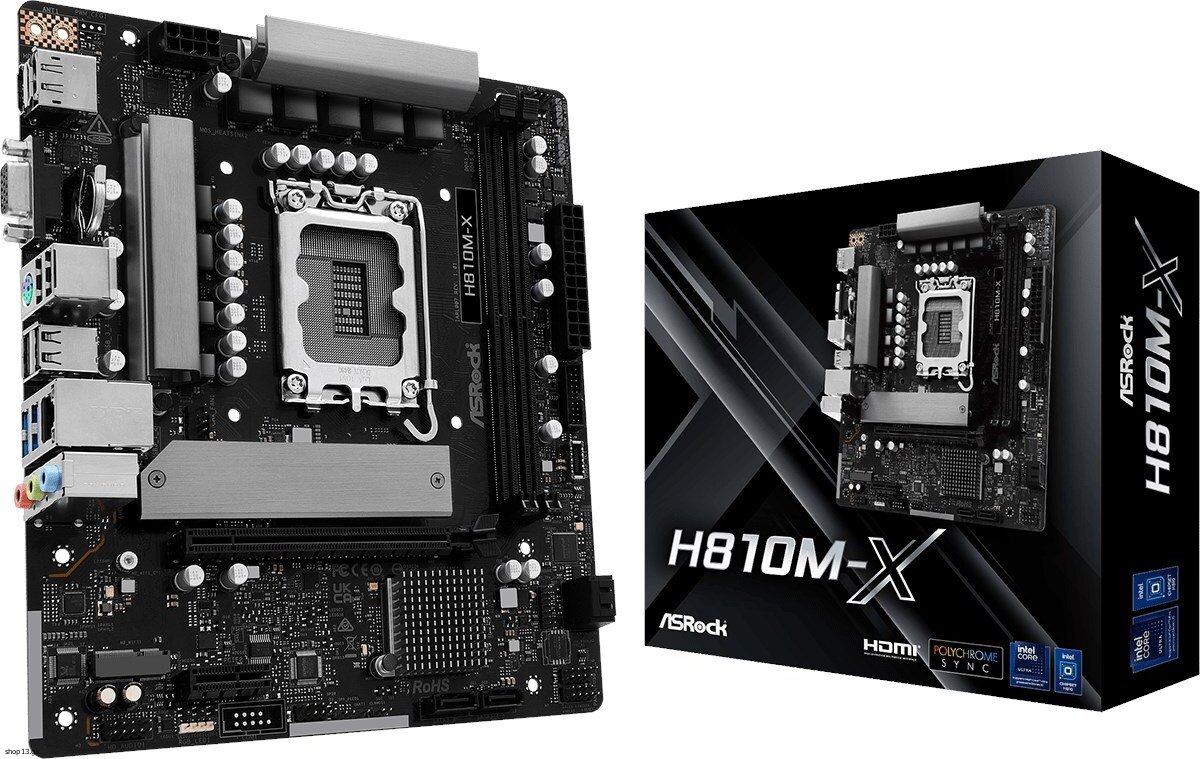

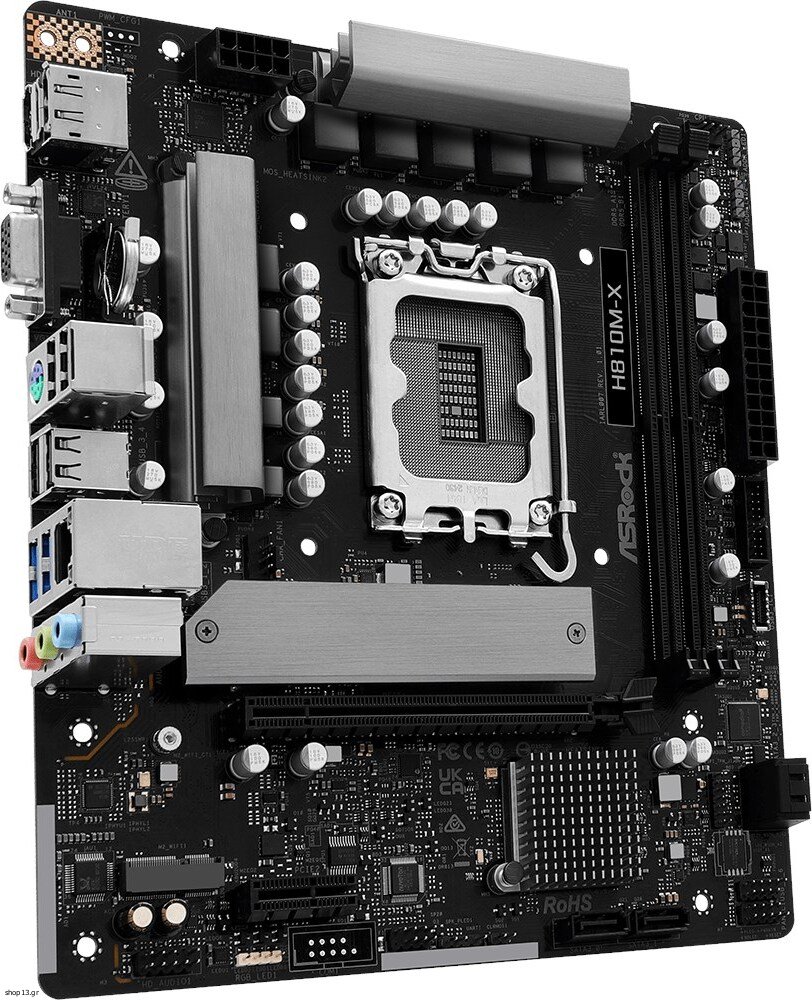

Asrock Motherboard - (H810M-X)

Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
Graphics card family: Intel

Features
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H810
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897

Memory
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC ?ompatibility: Non-ECC

Weight & dimensions
Width: 220 mm
Depth: 193 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Dragon RTL8125BG

Internal I/O
CPU fan connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of CPU fan connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Screws included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 2

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 4.x) slots: 1

Safety warning
Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.


Warranty: warranty 36 months
