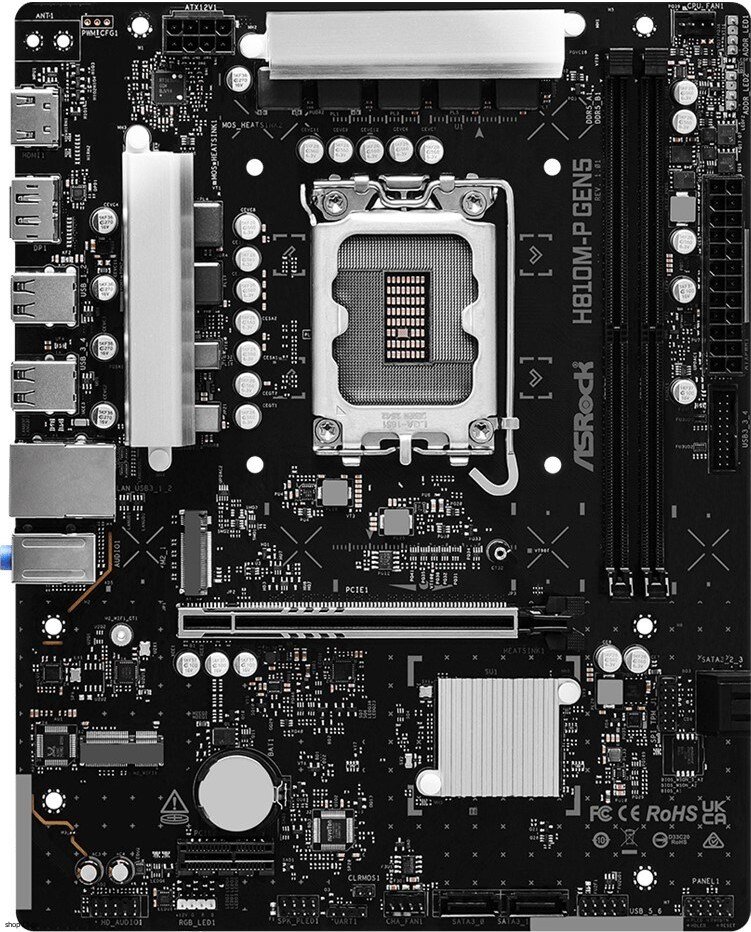

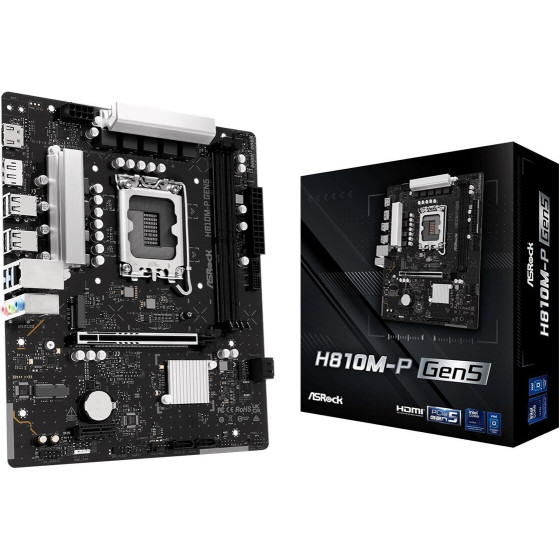

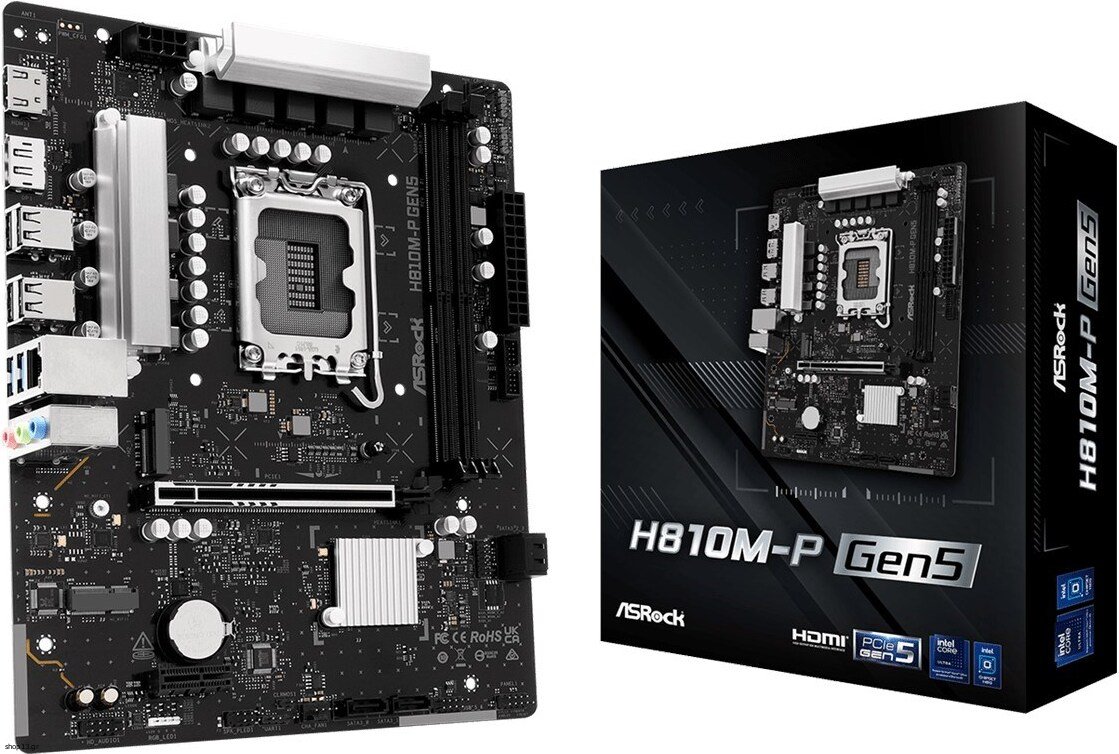

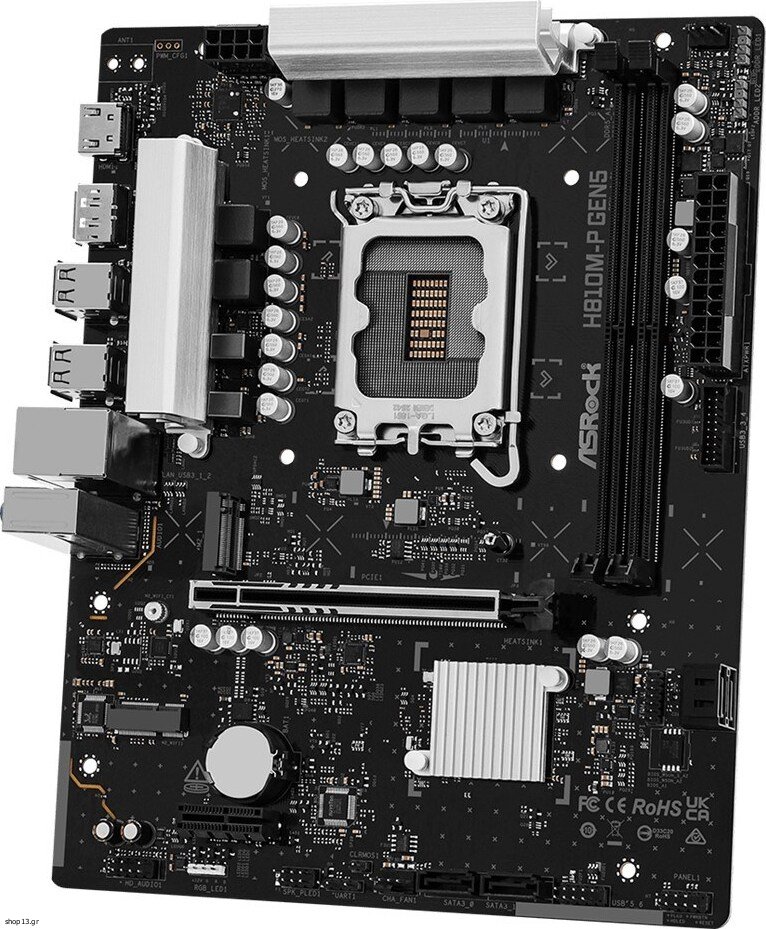

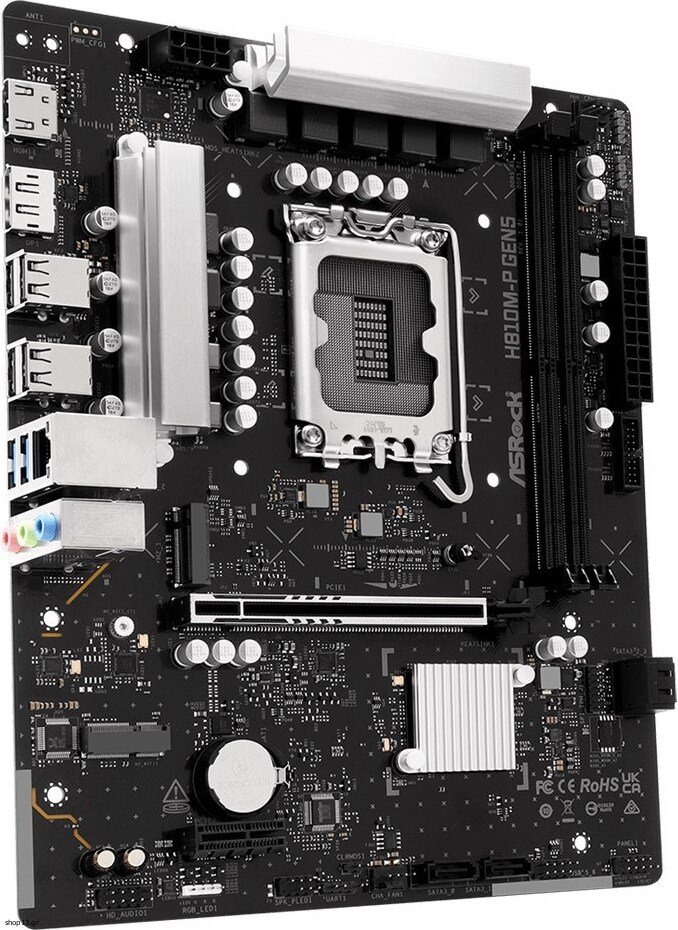

Asrock motherboard - (H810M-P GEN5)

Processor
Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel

Graphics
HDCP version: 2.3
Maximum resolution: 7680 x 4320 pixels
HDCP: Yes

Features
Windows operating systems supported: Windows 11 x64
Power source type: ATX
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H810
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897

Memory
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 6400 MHz
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 128 GB
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 193 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H

Internal I/O
RGB LED pin header: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of CPU fan connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 1
Number of EPS power connectors (8-pin): 1
TPM connector: Yes
EPS power connector (8-pin): Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
DisplayPorts quantity: 1
Line-in: No
HDMI version: 2.1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 1


Warranty: warranty 36 months
