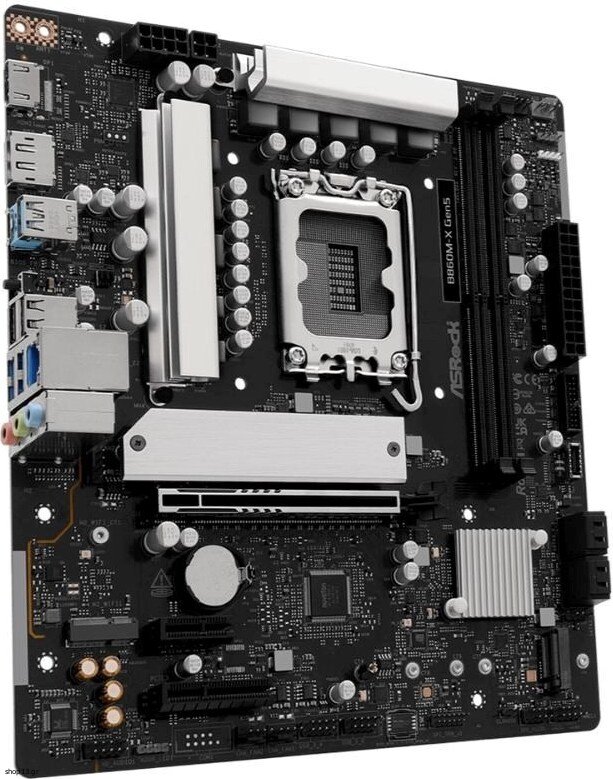

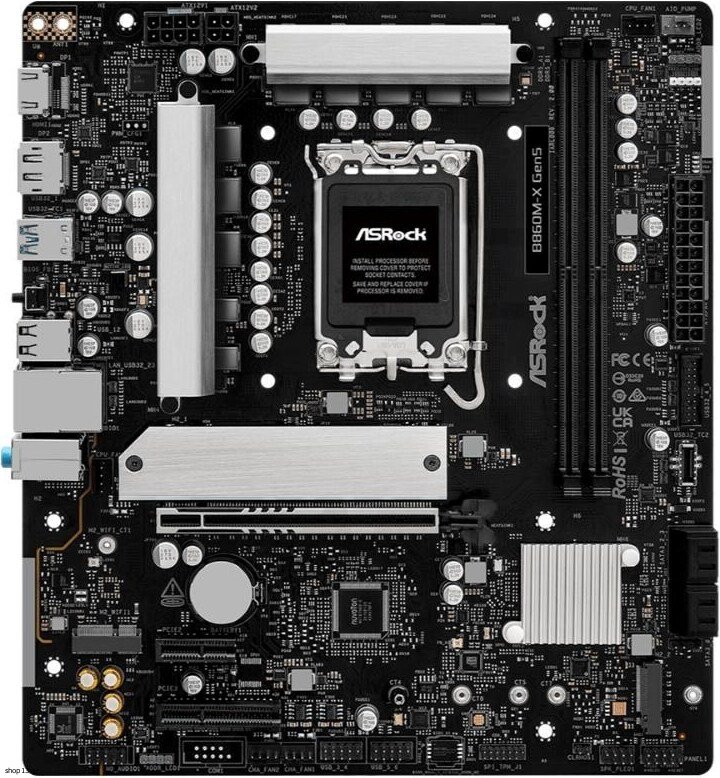

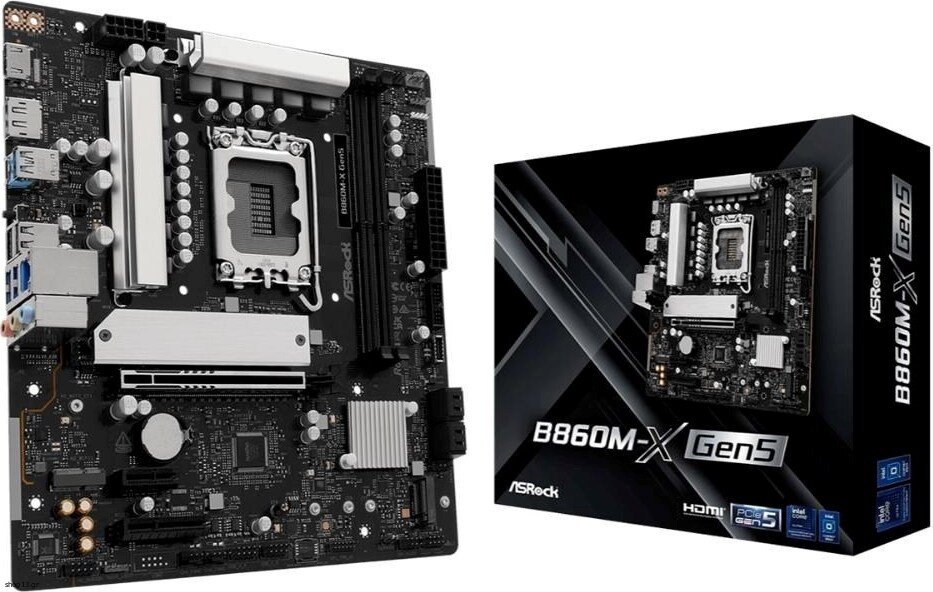

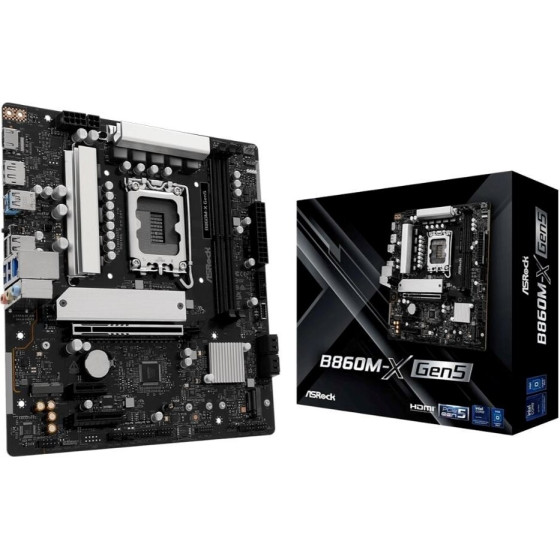

Asrock Motherboard - (B860M-X GEN5)

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Features
Audio chip: Realtek ALC897
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel B860
Windows operating systems supported: Windows 11 x64

Memory
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Supported memory types: DDR5 DIMM
Supported memory clock speed (max): 9066 MHz
Memory slots type: DIMM
Number of memory slots: 2

Design
Number of USB 3.2 Gen 1 ports: 5
BIOS flashback button: Yes
TPM connector: Yes
USB 2.0 connectors: 6
DisplayPorts quantity: 1
Number of M.2 (M) slots: 2
Number of SATA III connectors: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Number of M.2 (E) slots: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
RGB LED pin header: Yes

Weight & dimensions
Width: 244 mm
Depth: 218 mm

Network
LAN controller: Dragon RTL8125BG
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Screws included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10, 5
RAID support: Yes

Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1


Warranty: warranty 36 months
