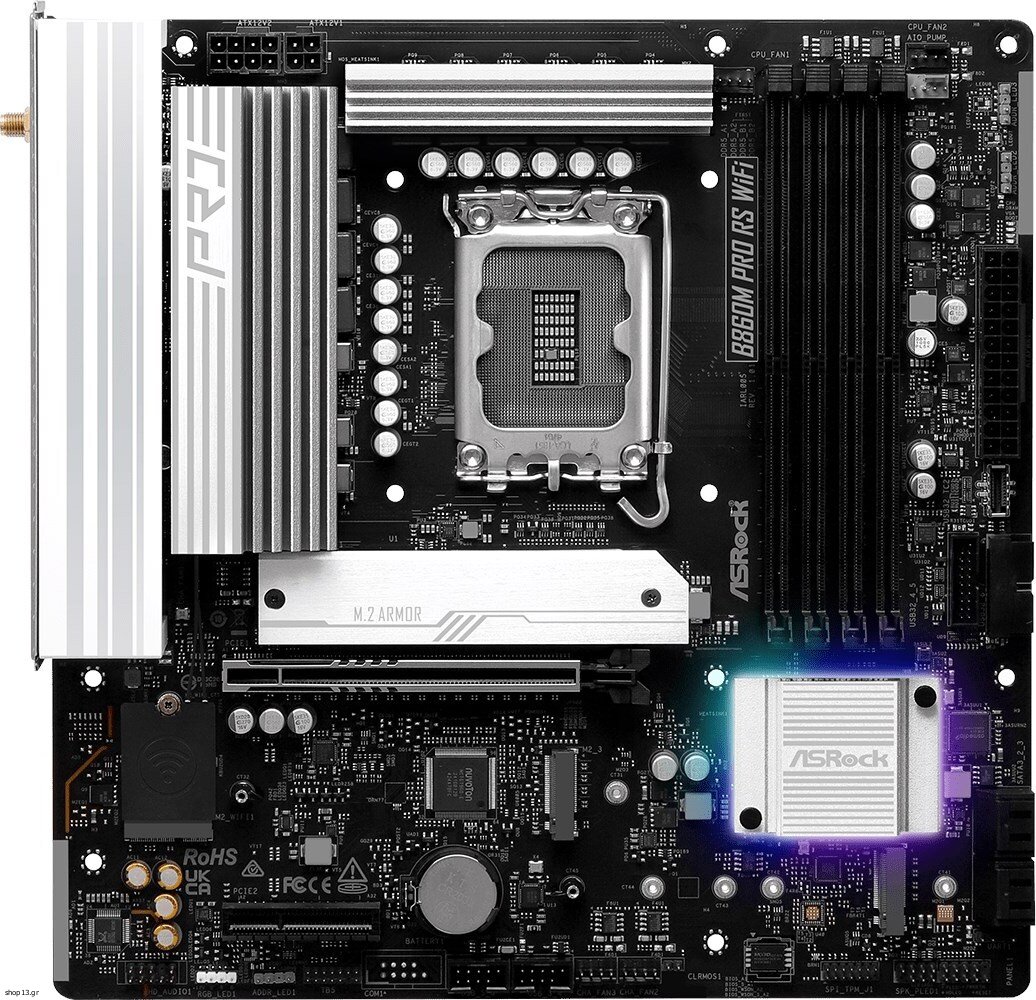

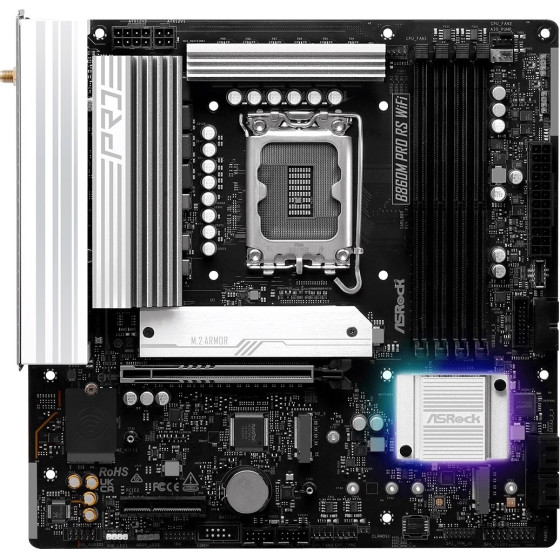

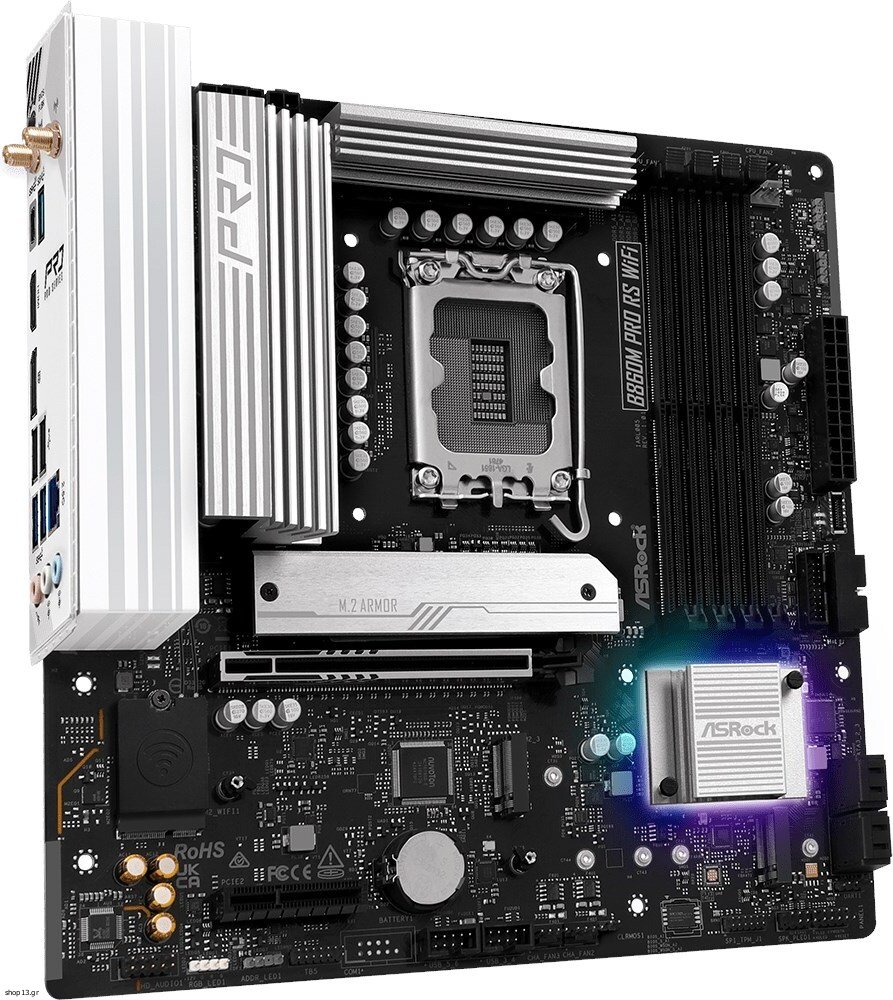

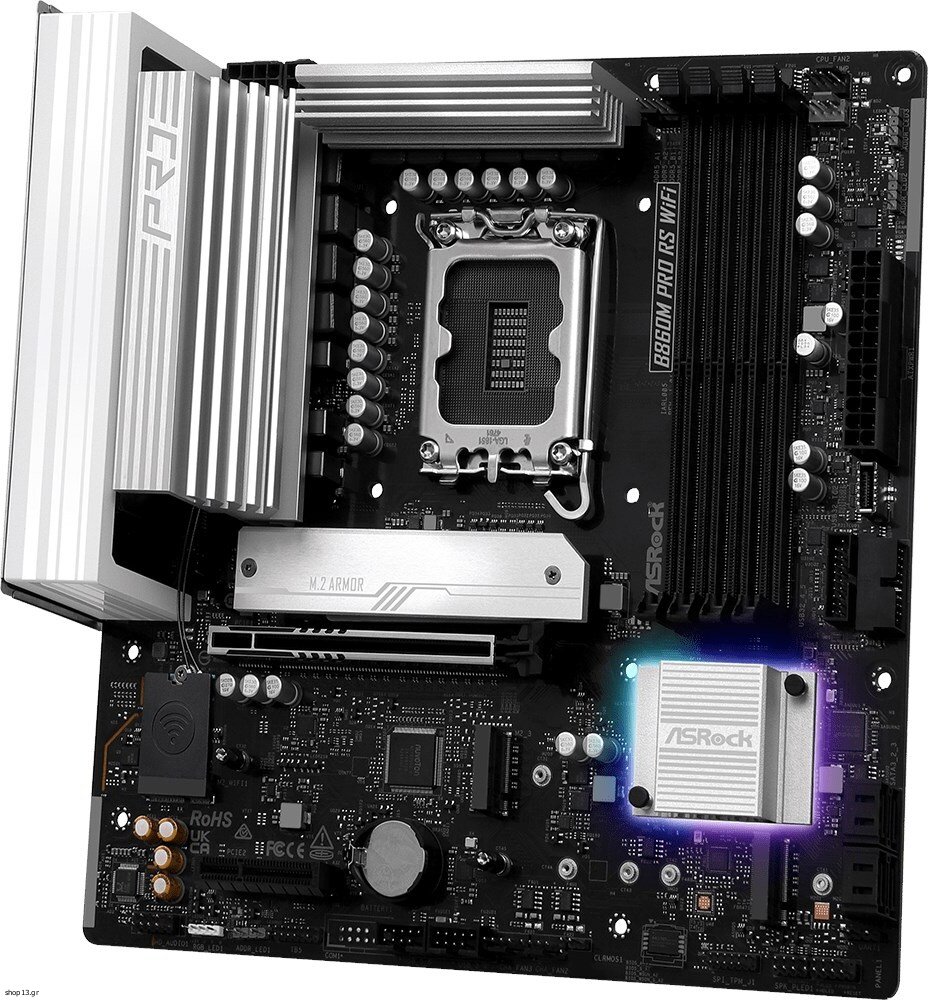

Asrock Motherboard - (B860M Pro RS WiFi)
[Κωδικός : 756682]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Processor
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Features
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset: Intel B860
Windows operating systems supported: Windows 11 x64
Memory
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
ECC ?ompatibility: Non-ECC
Weight & dimensions
Depth: 244 mm
Width: 244 mm
Network
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
TPM connector: Yes
Number of chassis fan connectors: 3
12V power connector: Yes
Number of water pump connectors: 1
RGB LED pin header: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
BIOS
BIOS type: UEFI AMI
Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 5, 1, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes

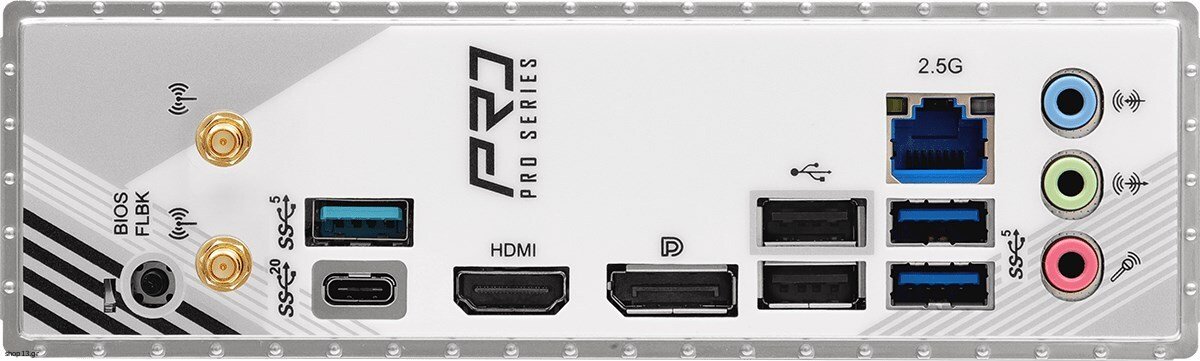

Rear panel I/O ports
USB connector type: USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
Antennas quantity: 2
HDMI version: 2.1
HDMI ports quantity: 2
Number of USB 3.2 Gen 1 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Flashback BIOS button: Yes
Expansion slots
Number of SATA III connectors: 4
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
Warranty: warranty 36 months
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Features
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset: Intel B860
Windows operating systems supported: Windows 11 x64
Memory
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
ECC ?ompatibility: Non-ECC
Weight & dimensions
Depth: 244 mm
Width: 244 mm
Network
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
TPM connector: Yes
Number of chassis fan connectors: 3
12V power connector: Yes
Number of water pump connectors: 1
RGB LED pin header: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
BIOS
BIOS type: UEFI AMI
Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 5, 1, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
Rear panel I/O ports
USB connector type: USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
Antennas quantity: 2
HDMI version: 2.1
HDMI ports quantity: 2
Number of USB 3.2 Gen 1 ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Flashback BIOS button: Yes
Expansion slots
Number of SATA III connectors: 4
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
Warranty: warranty 36 months
