Περιγραφή
Processor
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Features
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11 x64
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Memory
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Number of memory slots: 4
ECC ?ompatibility: Non-ECC
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Network
Ethernet LAN: Yes
Bluetooth: No
Wi-Fi: No
LAN controller: Dragon RTL8125BG
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
RGB LED pin header: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Number of water pump connectors: 1
Number of chassis fan connectors: 3
TPM connector: Yes
12V power connector: Yes
USB 2.0 connectors: 2
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
CPU fan connector: Yes
BIOS
BIOS type: UEFI AMI
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
RAID levels: 10, 5, 1, 0

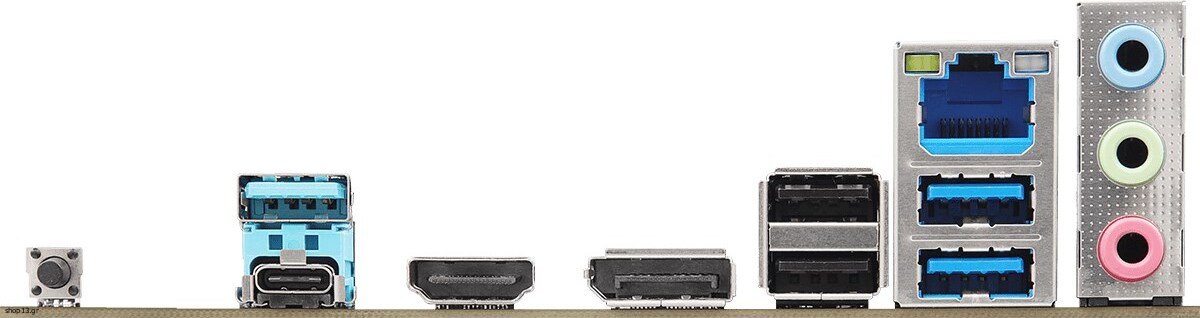

Rear panel I/O ports
Flashback BIOS button: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A, USB Type-C
DisplayPorts quantity: 1
HDMI version: 2.1
Number of USB 3.2 Gen 1 ports: 3
HDMI ports quantity: 1
Antennas quantity: 2
Expansion slots
Number of SATA III connectors: 4
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.
Warranty: warranty 36 months
