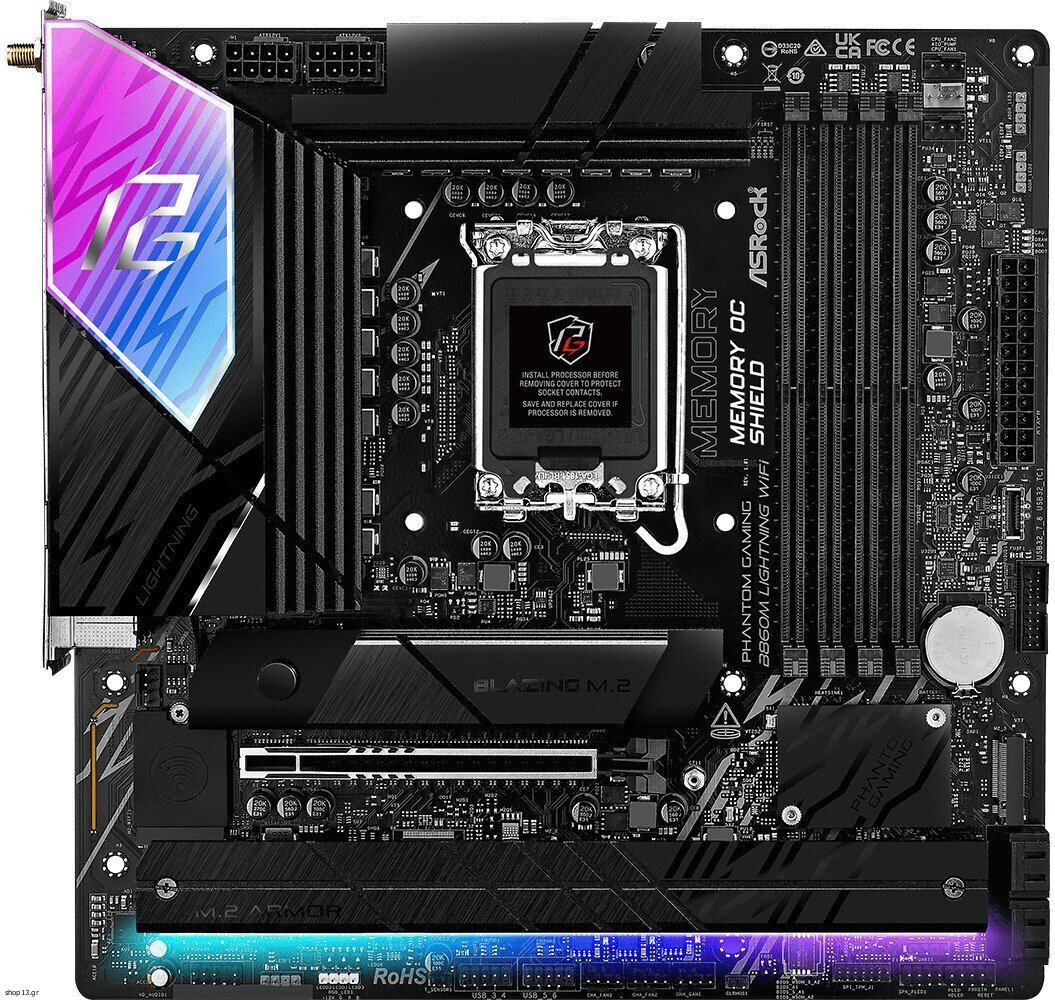

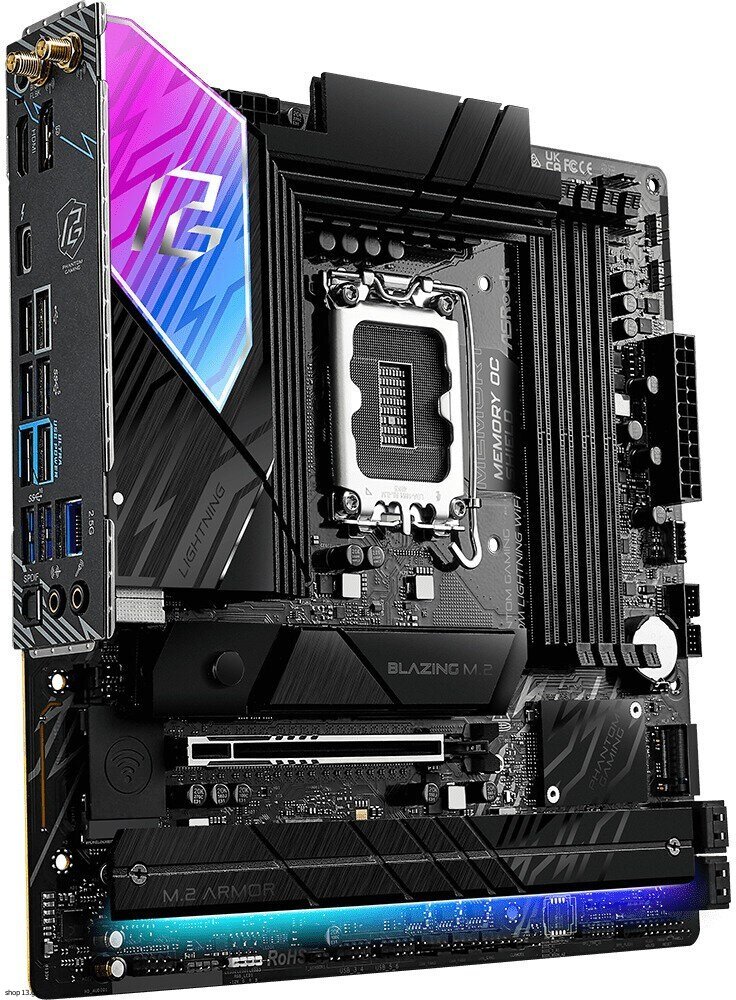

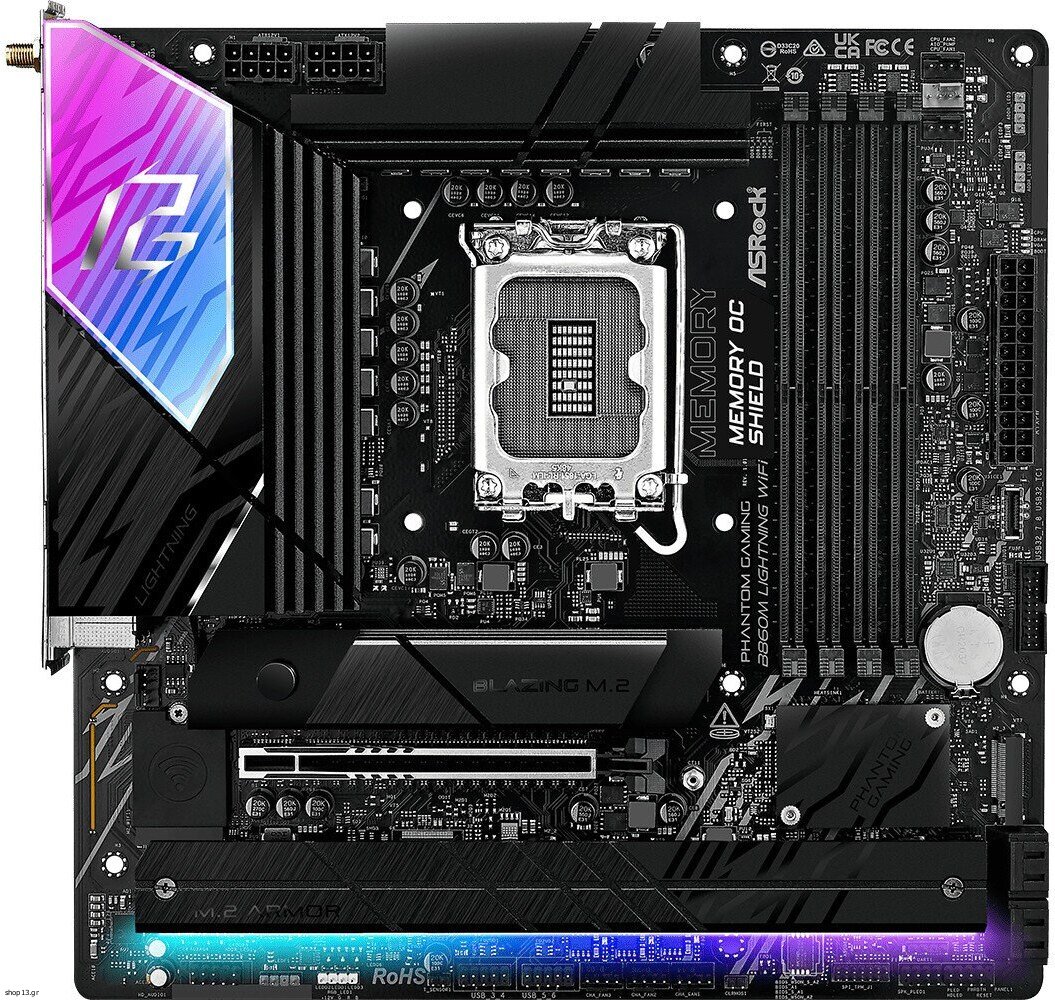

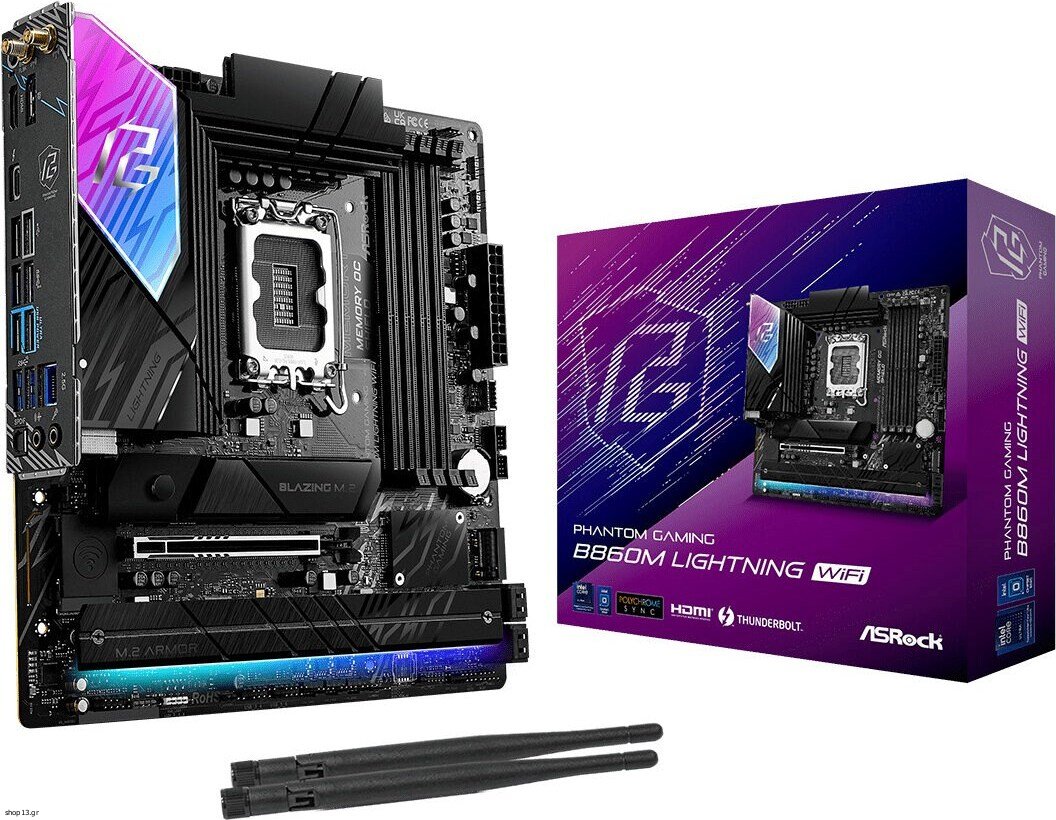

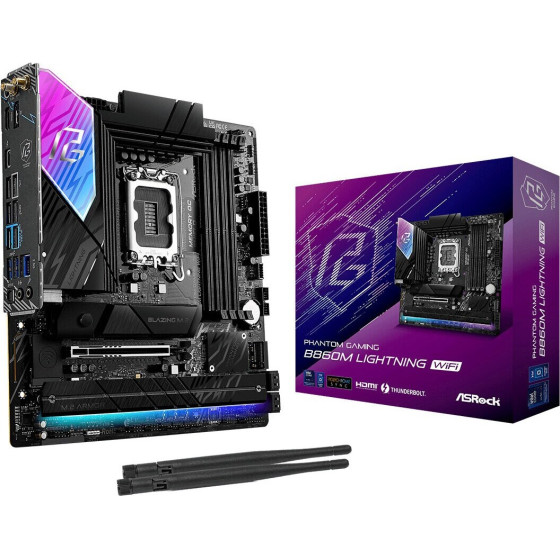

Asrock Motherboard - (B860M Lightning WiFi)

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA1851
Maximum number of SMP processors: 1

Features
Motherboard form factor: micro ATX
Operating system architecture: 64-bit
Motherboard chipset: Intel B860
Motherboard chipset family: Intel
Audio chip: Realtek ALC1220
Windows operating systems supported: Windows 11
Audio output channels: 7.1 channels

Memory
Number of memory slots: 4
Supported memory clock speed (max): 8666 MHz
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 256 GB

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11axe)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Ethernet LAN: Yes
LAN controller: Killer E3100G
MU-MIMO: Yes
Wi-Fi: Yes

Internal I/O
USB 2.0 connectors: 2
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB Type-C ports quantity: 1
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported RAID configuration: 0,1,5,10
RAID rebuild: Yes

Rear panel I/O ports
Thunderbolt 4 ports quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-out: Yes
SPDIF optical output: Y
Number of Wi-Fi antenna ports: 2
MIC input: 1
Number of USB 2.0 Type-A ports: 2

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 36 months
